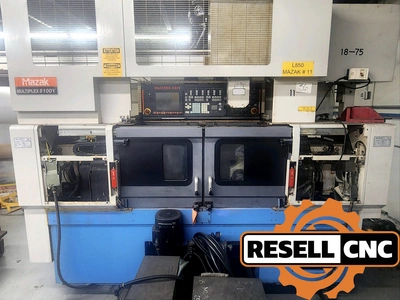

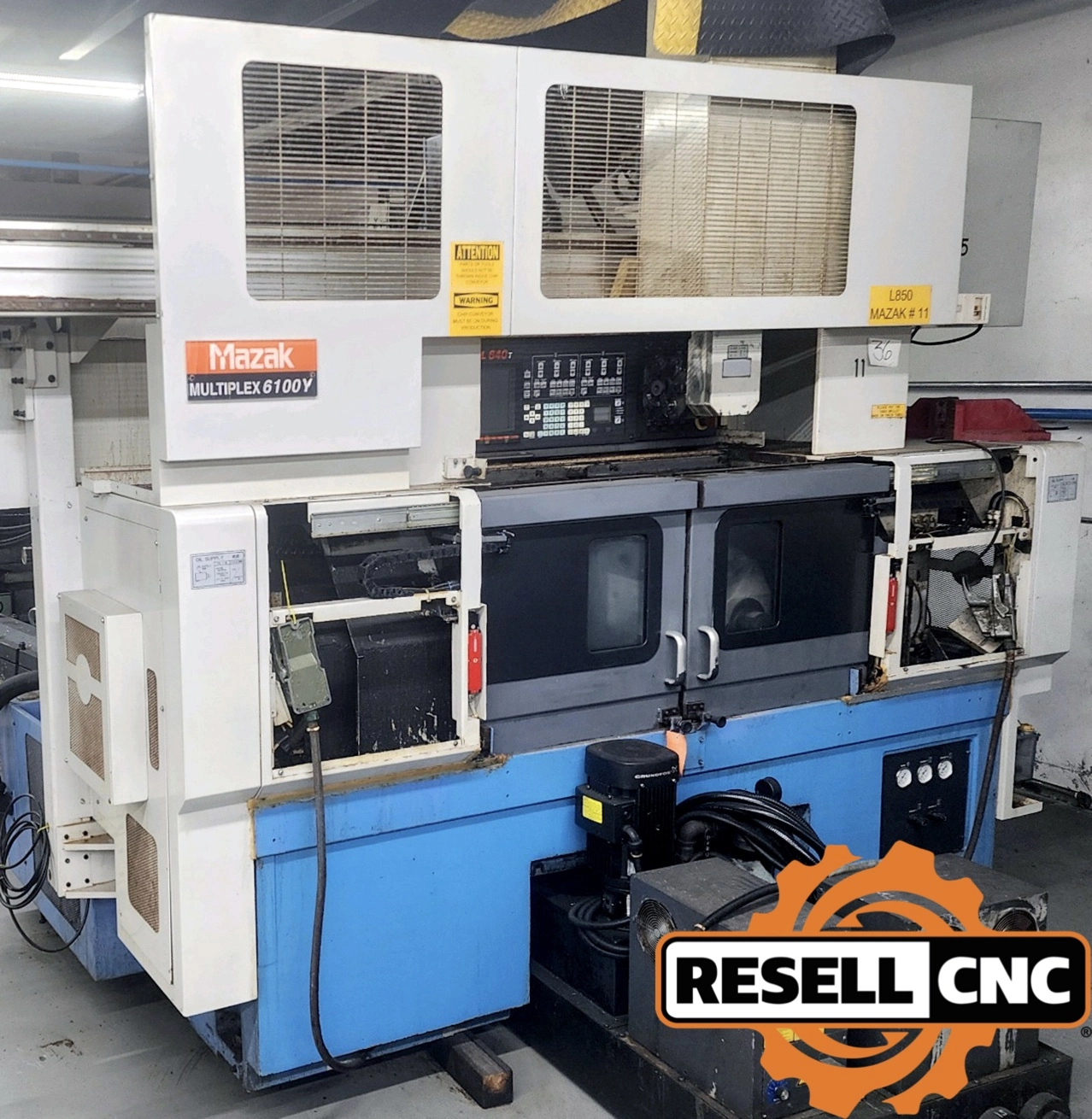

USED 2008 Mazak Multiplex 6100Y

X2nd Chuck Description: Kitagawa Chuck

X2nd Turret Live Tooling: false
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Travels:

- Y-Axis: 3.15" (+/- 1.57")



Mazak Flex-GL50F Gantry Loader

Consep Chip Conveyor

Coolant System

Royal FilterMist

Mazak 30 KA Transformer

Bar Capacity: 2.0
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor
Chuck Description: Kitagawa Chuck

Chuck Size: 6.0
Control Make Model: Mazatrol 640T CNC Control
Distance Between Centers: 40.06
High Pressure Coolant Psi: 213.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Tool Presetter, Transformer
Max Cutting Turning Diameter: 9.06
Max Swing Over Bed: 9.06
Max Turning Cutting Length: 17.57
Programmable Tailstock: false
Second Bar Capacity: 2.0
Second Chuck Size: 6.0
Second Spindle Bore: 2.4
Second Spindle Motor: 30
Second Spindle Nose: A2-5
Second Spindle Speed: 6,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 2.4
Spindle Motor: 30
Spindle Nose: A2-5
Spindle Speed: 6000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Twin Turret: true
X Travel: 8.0
Y Axis: true
Z Travel: 14.0
