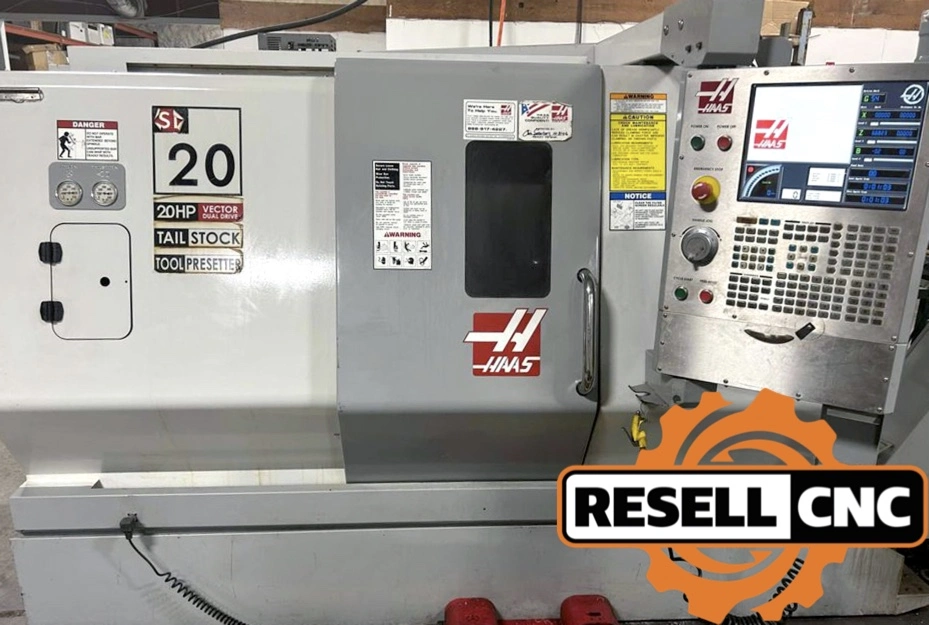

USED 2006 Haas SL-20

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: 20 HP Vector Dual Drive

Hydraulic Tailstock

Misc. Tooling

Bar Capacity: 2.5
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

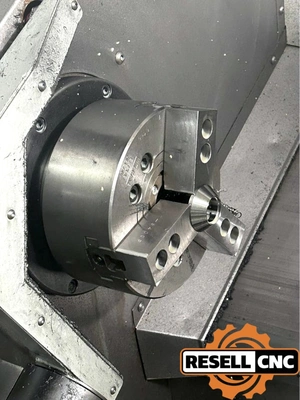

Chuck Description: Kitagawa
Chuck Size: 8.3
Chuck Type: Hydraulic

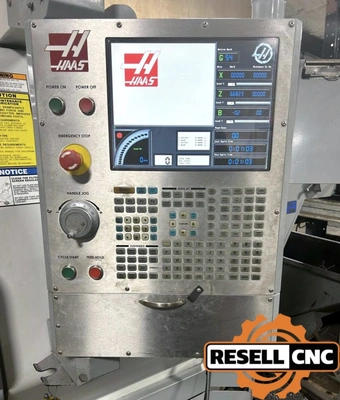

Control Make Model: Haas CNC Control
Distance Between Centers: 22.5
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Tool Presetter
Max Cutting Turning Diameter: 13.0
Max Swing Over Bed: 21.0
Max Turning Cutting Length: 22.5
Programmable Tailstock: false
Rapid Traverse: 945

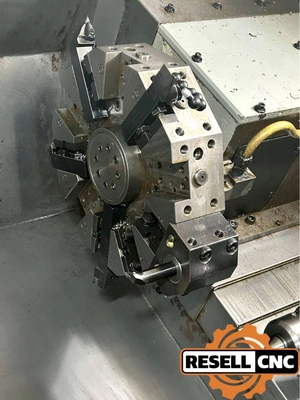

Single Turret: true
Single Turret Live Tooling: false
Spindle Bore: 3.5
Spindle Motor: 20
Spindle Nose: A2-6
Spindle Speed: 4000.0
Sub Spindle: false
Tailstock: true
Tool Positions: 10.0
Total Spindles: 1
Twin Turret: false
X Travel: 8.4
Y Axis: false
Z Travel: 22.5
