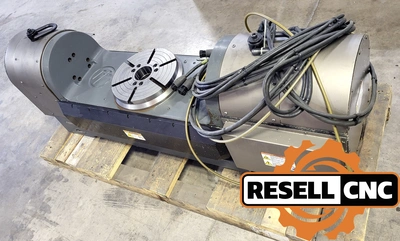

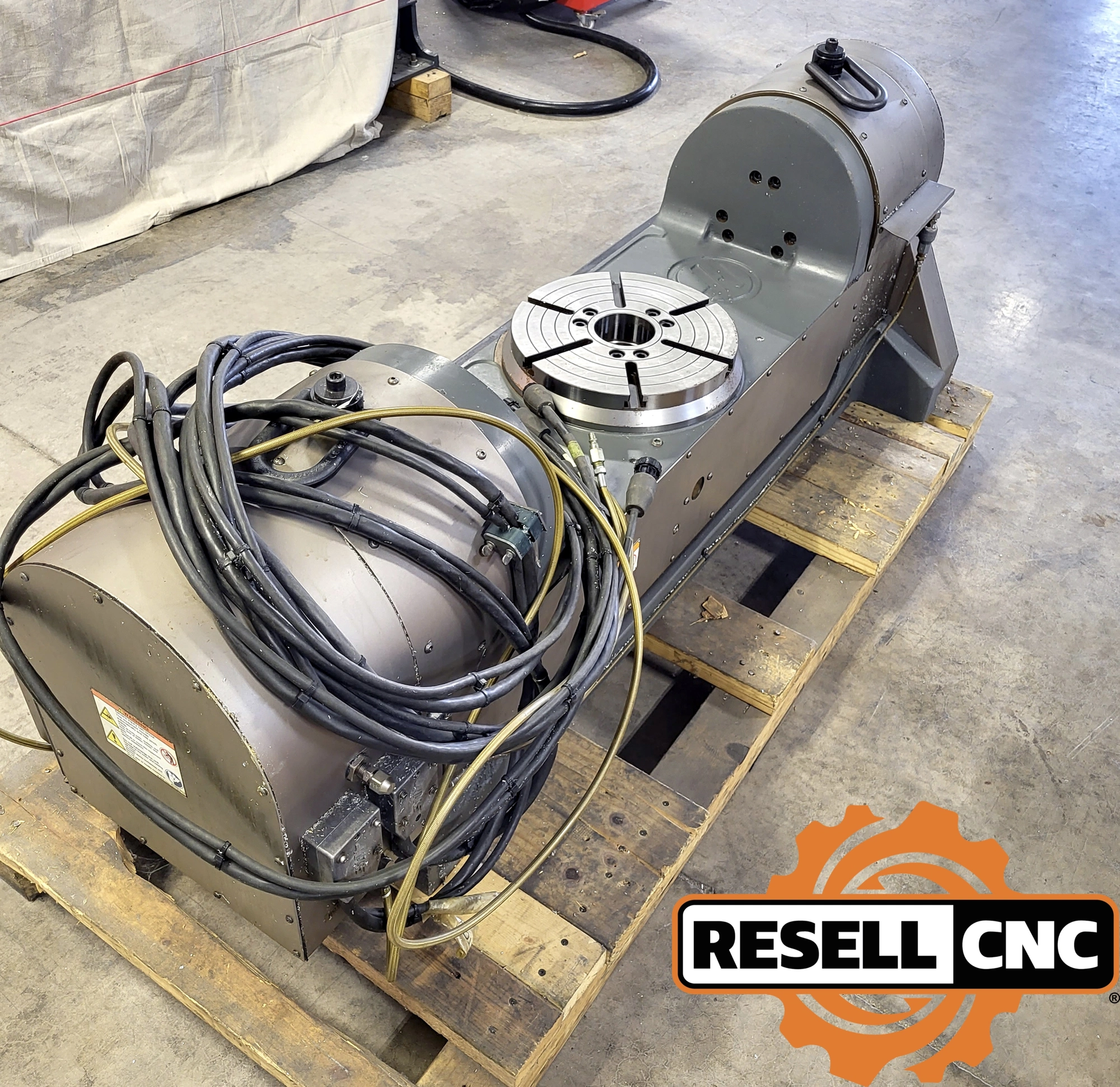

USED 2012 Haas TR-310

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Platter Diameter: 12.20”

Max. Weight on Platter: 500 lbs

Max. Part Swing: 31”

# of Standard T-Slots: 6 @ 60°



SPINDLE - A (TILT):

Max. Speed: 50°/s

Max. Torque: 300 ft-lbf

Backlash: 30 arc-sec

Gear Ratio: 72:1

Timing: 3:1

Brake Torque (@ 100 PSI / 6.9 bar): 1,000 ft-lbf



INDEXING - A (TILT)

Max. Rotation/Step: ±120°

Resolution: 0.001°

Accuracy: ±15 arc-sec

Repeatability: 10 arc-sec



SPINDLE - B (ROTARY)

Max. Speed: 50°/s

Max. Torque: 300 ft-lbf

Max. Runout: 0.0010"

Backlash: 30 arc-sec

Gear Ratio: 72:1

Timing: 3:1

Brake Torque (@ 100 PSI / 6.9 bar): 500 ft-lbf



INDEXING - B (ROTARY)

Max Rotation/Step (with rotary control): 999.999°

Resolution: 0.001°

Repeatability: 10 arc-sec

B Axis: false
C Axis: false
Control Make Model: Haas CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Rotary Table Trunnion: 5th Axis Trunnion
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
