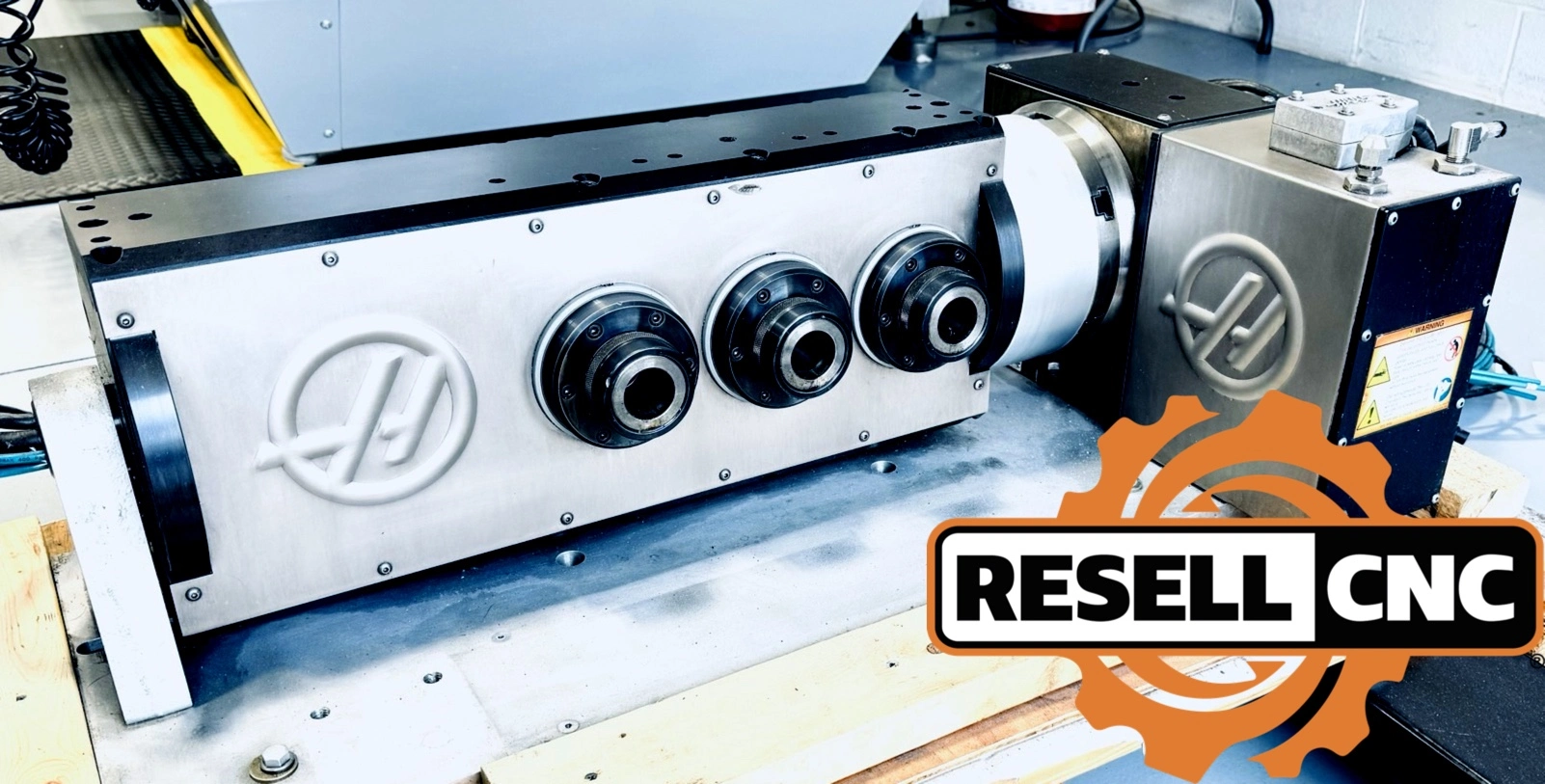

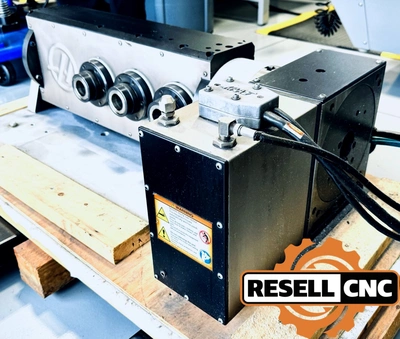

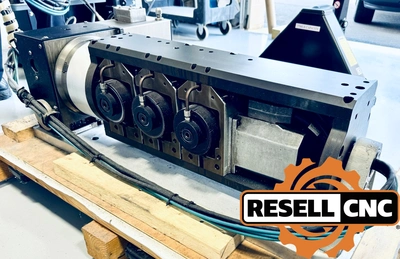

USED 2013 Haas T5C3

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Max. Weight on Platter: 5 Lbs

Indexing - A (Tilt)

- Max Rotation/Step: ± 120°

- Resolution: 0.001°

- Accuracy: ± 15 arc-sec

- Repeatability: 10 arc-sec

- Worm Gear Dia.: 6.3"

Indexing - B (Rotary)

- Max Rotation/Step: 999.999°

- Resolution: 0.001°

- Accuracy: ± 60 arc-sec

- Repeatability: 10 arc-sec

- Worm Gear Dia.: 2.8"

B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Rotary Table Trunnion: 4th Axis
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
