X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Platter Diameter: 12.20”
Max. Weight on Platter: 500 lbs
Max. Part Swing: 31”
# of Standard T-Slots: 6 @ 60°
SPINDLE - A (TILT):
Max. Speed: 50°/s
Max. Torque: 300 ft-lbf
Backlash: 30 arc-sec
Gear Ratio: 72:1
Timing: 3:1
Brake Torque (@ 100 PSI / 6.9 bar): 1,000 ft-lbf
INDEXING - A (TILT)
Max. Rotation/Step: ±120°
Resolution: 0.001°
Accuracy: ±15 arc-sec
Repeatability: 10 arc-sec
SPINDLE - B (ROTARY)
Max. Speed: 50°/s
Max. Torque: 300 ft-lbf
Max. Runout: 0.0010"
Backlash: 30 arc-sec
Gear Ratio: 72:1
Timing: 3:1
Brake Torque (@ 100 PSI / 6.9 bar): 500 ft-lbf
INDEXING - B (ROTARY)
Max Rotation/Step (with rotary control): 999.999°
Resolution: 0.001°
Repeatability: 10 arc-sec
Equipped With:
- Sigma 5 Connection
- Tilt Axis Scale
B Axis: false
C Axis: false
Control Make Model: Haas CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false

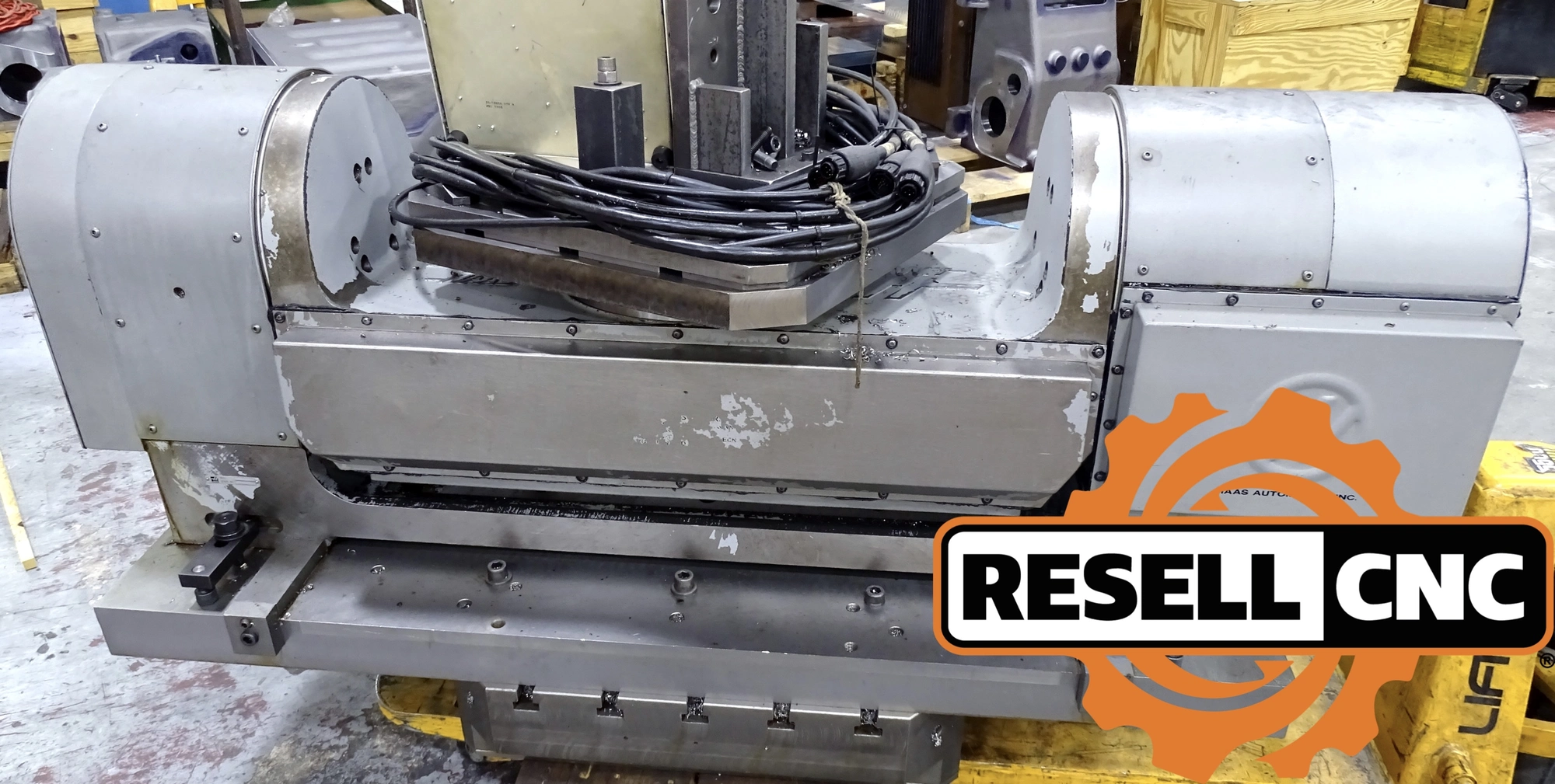

Rotary Table Trunnion: 5th Axis Trunnion
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
