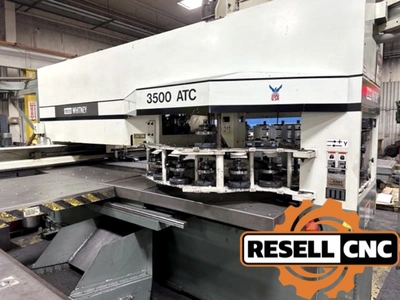

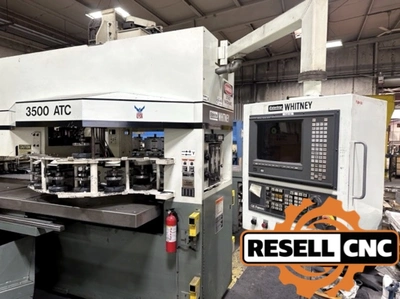

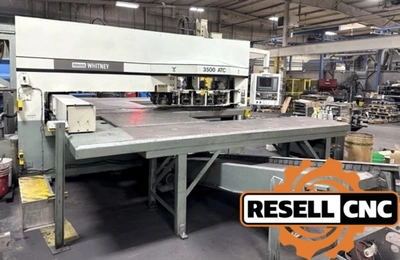

USED 1999 Whitney 3500 ATC

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Punching Force: 40 Tons

Punching Material Thickness: 0.375" - 0.5"

Punching Capacity:

- 0.25" Material: 5"

- 0.375" Material: 2.75"

- 0.5" Material: 1"

Max. Punch Diameter: 5"

Hit Rate: 165 HPM (On 1" Centers in 10 Gage Material)

Positioning Speed - Per Axis: 1,200 IPM

Positioning Accuracy: +/- 0.005"



Equipped With:

New Conveyer Belt System

Upgraded Hypertherm Unit

Complete Manuals

Regular PM’s per Prescribed Schedule

Heavy Duty Auxiliary Ball Transfer Table

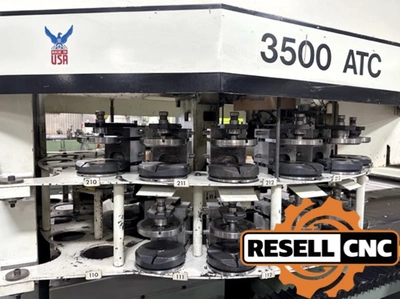

All Tooling and Die Sets (75+ Tools)

Powered Small Parts and/or Scrap Conveyor

Powered Slag Conveyor (in Lieu of Manual Cleanout Tank)

B Axis: false
C Axis: false
Control Make Model: Fanuc 16P CNC Control
Fabrication Equipment Types: Turret Punches
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Tonnage: 40.0
Twin Turret: false
X Travel: 90.0
Y Axis: false
Y Travel: 50.0
