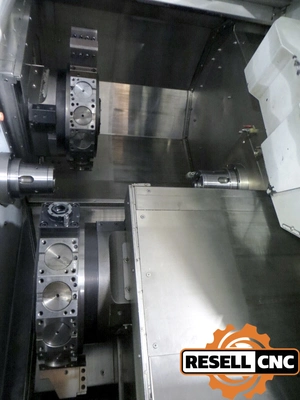

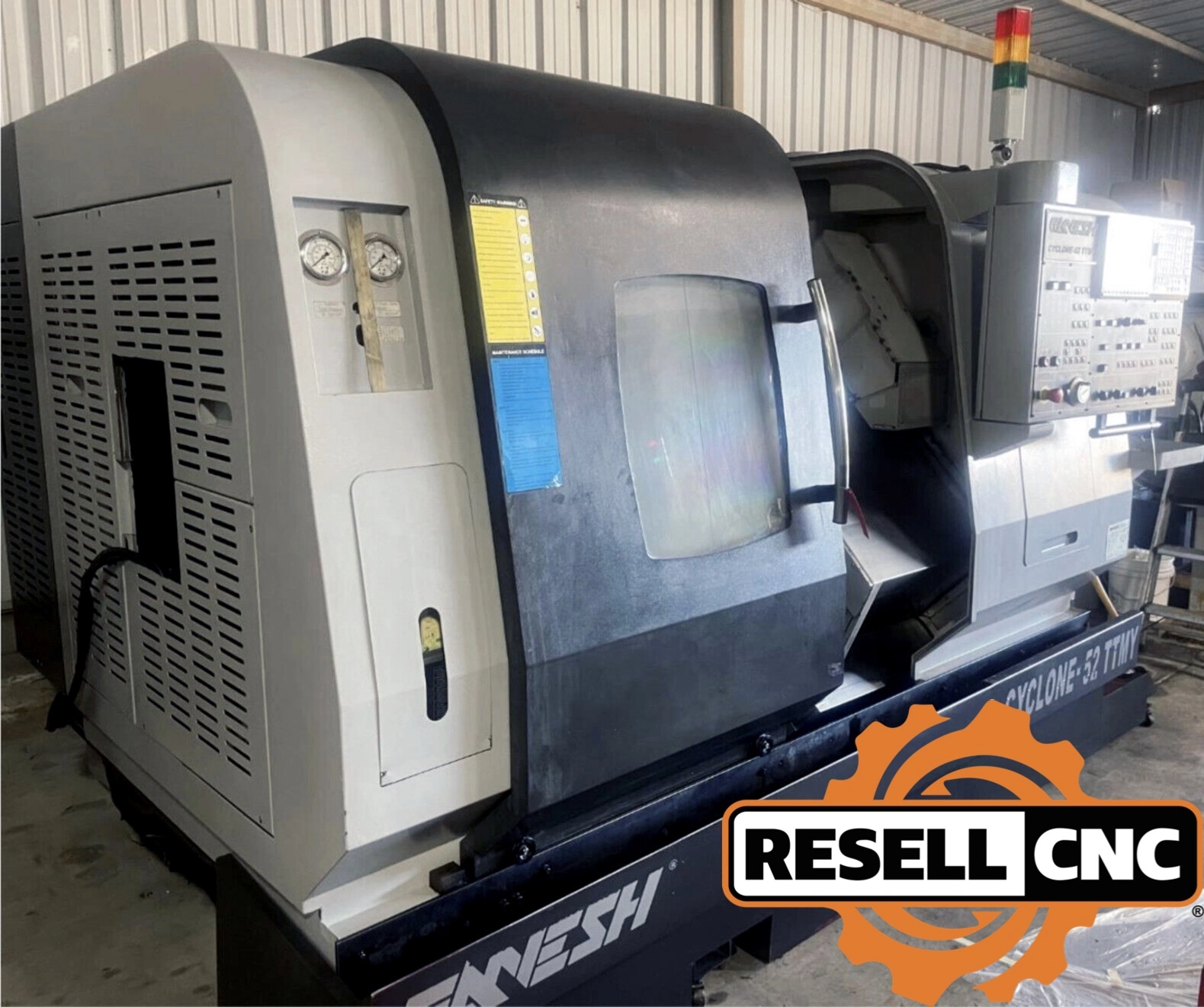

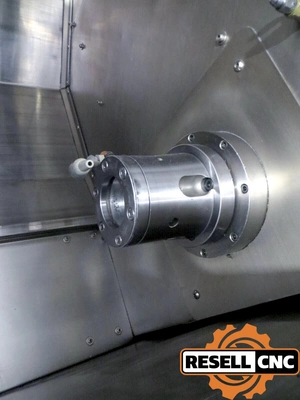

USED 2011 Ganesh Cyclone 52TTMY

X2nd Turret Live Tooling: false
X2nd Turret Positions: 16
X4th Axis: false
X5th Axis: true
Additional Machine Specs: Travels:

- X2 Axis: 9.05"

- Z2 Axis: 17.32"

- Y-Axis: 2.75"

- C-Axis: 360,000

- B-Axis: 25.59"



Pre-Tensioned Double-Anchored Ball Screws

Heavy Duty Cross-Roller Way System

Automatic Lubrication System

MistBuster Oil Filtration

Spindle Chiller

Bar Capacity: 2.0
B Axis: true
C Axis: true
Chip Removal: Chip Conveyor
Chuck Size: 6.0

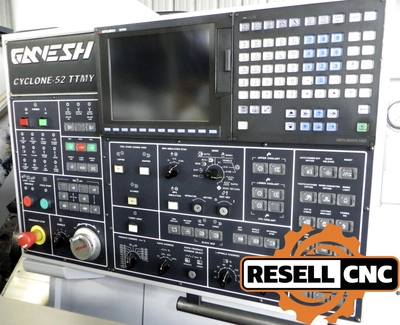

Control Make Model: Mitsubishi M700 CNC Control
Control Options: High Speed Machining
Distance Between Centers: 36.22
Live Milling Hp: 7
Live Milling Max Rpm: 6,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Oil Filtration System, Parts Catcher
Max Cutting Turning Diameter: 7.48
Max Swing Over Bed: 14.96
Max Turning Cutting Length: 15.75
Programmable Tailstock: false
Second Bar Capacity: 2.0
Second Chuck Size: 6.0
Second Spindle Motor: 20
Second Spindle Nose: A2-5
Second Spindle Speed: 6,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 20
Spindle Nose: A2-5
Spindle Speed: 6000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 16.0

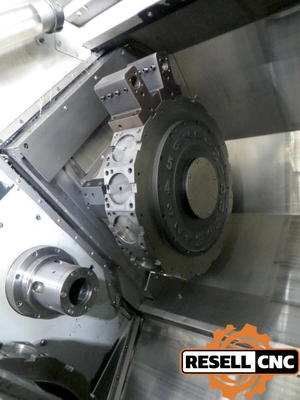

Twin Turret: true
X Travel: 5.9
Y Axis: true
Z Travel: 17.32
