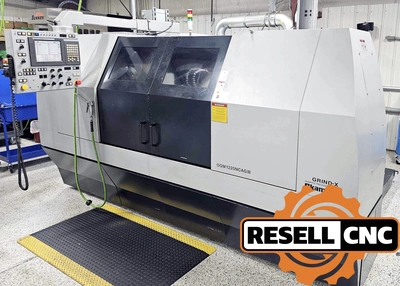

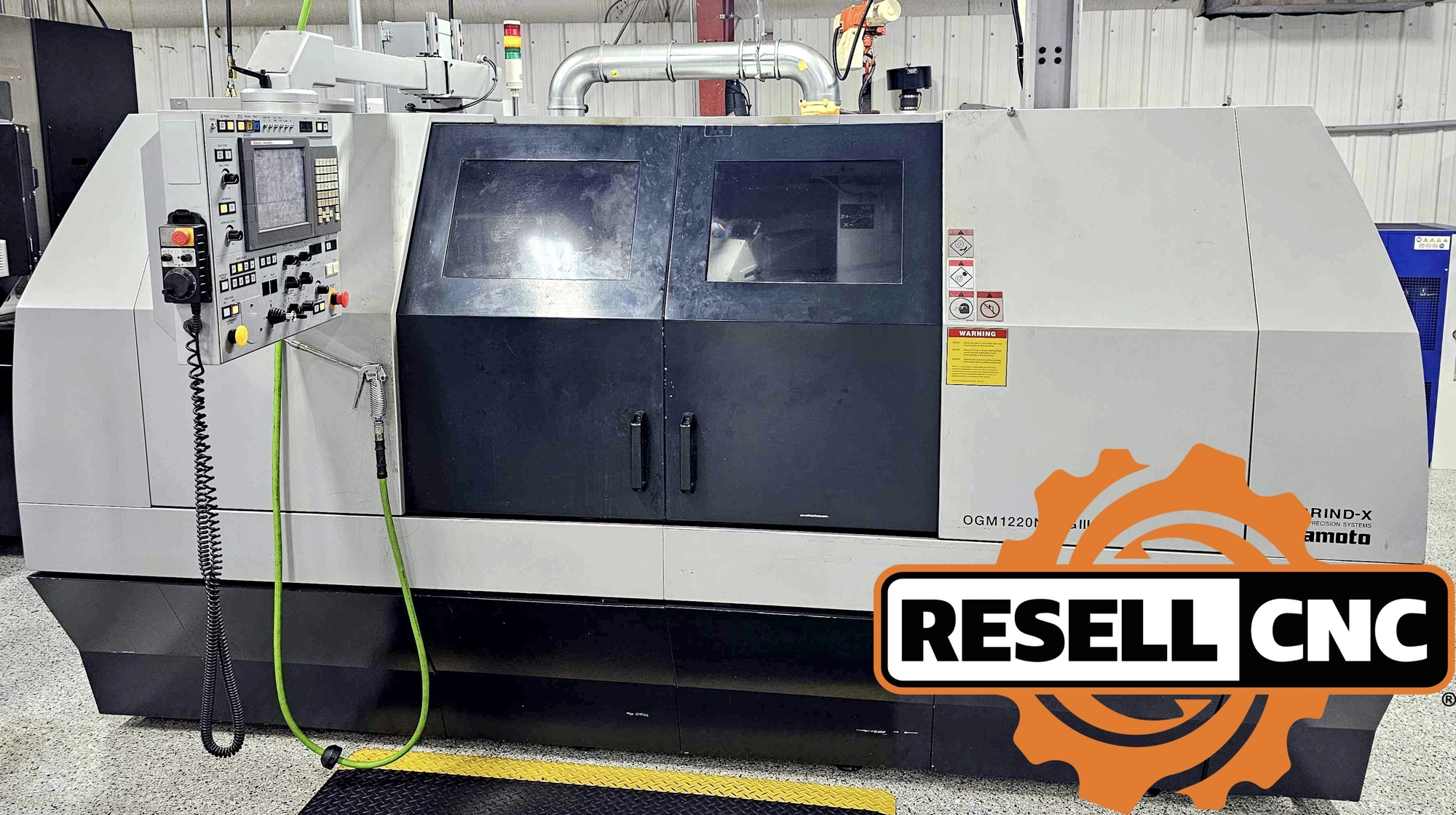

USED 2017 Okamoto OGM12-20NCAGIII

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Okamoto Conversational Software

Additional Machine Specs: Swing Over Table: 12.6"

Distance Between Centers: 20"

Max. Diameter to be Ground: 12"

Max. Weight Between Centers: 330 Lbs



Grinding Wheel:

- Size (L x W x H): 20" x 4" x 8"

- Speed: 500 ~ 2,400 RPM

- Motor: 10 HP



Wheelhead:

- Total Stroke: 11.8"

- Swivel Angle: +/- 30° Fixed

- Auto Infeed: 0.00001" ~ 0.004"

- Min. Increment: 0.00001"

- Rapid Feedrate: 157 IPM



Table:

- Max. Table Travel: 31"

- Swivel Angle: 0 - 8.5°

- Max. Traverse: 394 IPM

- Min. Increment: 0.00001"

- Rapid Feedrate: 94 IPM



Workhead:

- Center: MT#5

- Swivel Angle: +30 / -90°

- Speed: 500 RPM



Tailstock:

- Center: MT#4

- Stroke: 1.2"



Equipped With:

2-Axis Simultaneous

Coolant System with Paper Filter

Grinding Wheel Adapter (5" Bore)

Grinding Wheel Balancing Stand with Arbor

Balancing Test Arbor

B Axis: false
C Axis: false
Control Make Model: Fanuc Oi-TD CNC Control
Control Options: Manual Pulse Generator / Pendant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Worklight
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 10
Sub Spindle: false
Tailstock: false
Twin Turret: false
X Travel: 11.8
Y Axis: false
