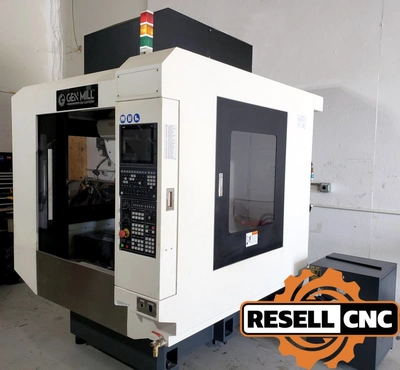

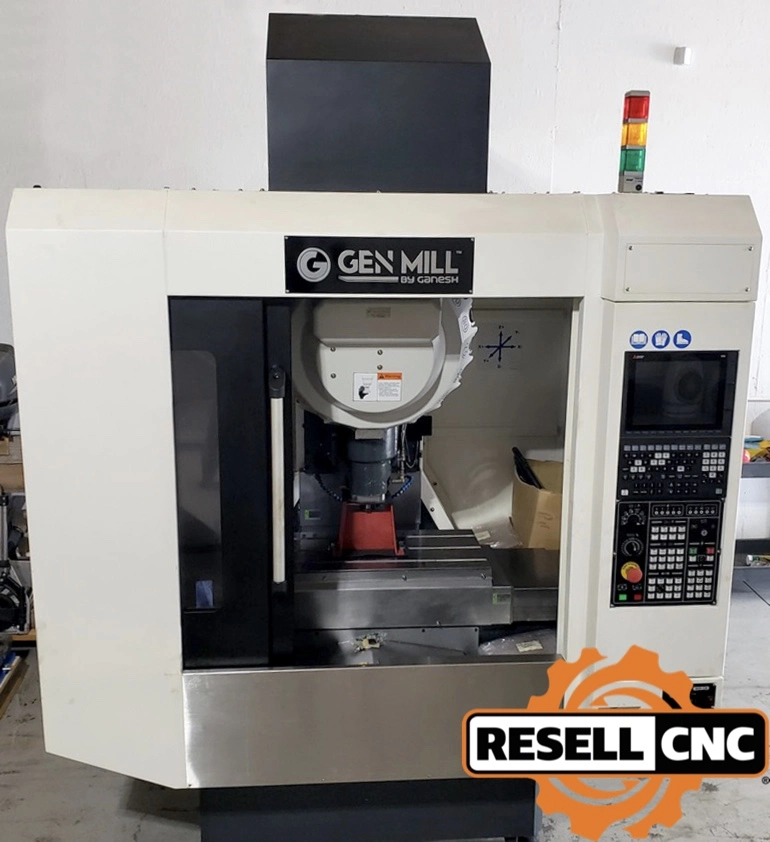

USED 2018 Ganesh T700

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 6,000 RPM Synchronous Rigid Tapping

Additional Machine Specs: 12,000 RPM Inline Direct-Drive Beltless Spindle

(50) BT#30 Tool Holders

(3) 6” Kurt Vises

B Axis: false
C Axis: false
Chip To Chip Time: 1.6

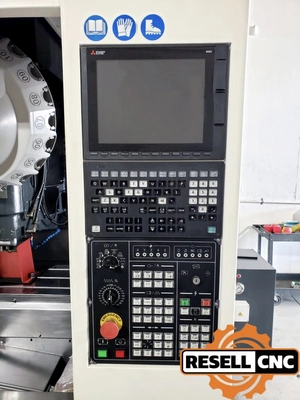

Control Make Model: Mitsubishi M80 CNC Control
Control Options: Rigid Tapping, Synchronized Tapping
Coolant Psi: 45.0
Coolant Type S: Flood Coolant
Cutting Feed Rate: 1181
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 550.0
Max Tool Diameter: 2.36
Max Tool Diameter Adjacent: 3.15
Max Tool Length: 7.87
Max Tool Weight: 6.6
Programmable Tailstock: false
Rapid Traverse: 2362
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 7.5
Spindle Nose To Table Top: 5.1-18.1
Spindle Speed: 12000.0
Spindle Taper Other: BT30 BBT "Big Plus"
Spindle Taper Type: BT30
Sub Spindle: false
Tailstock: false

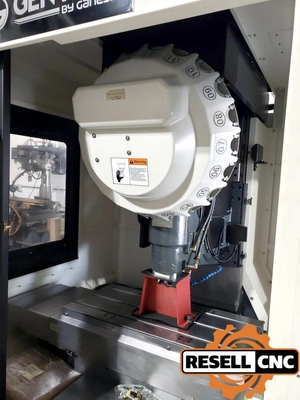

Tool Changer Type: Drum
Tool Magazine Capacity: 21.0
Twin Turret: false
Vertical Table Pallet Size: 33.4" x 15.75
X Travel: 27.56
Y Axis: false
Y Travel: 16.93
Z Travel: 12.99
