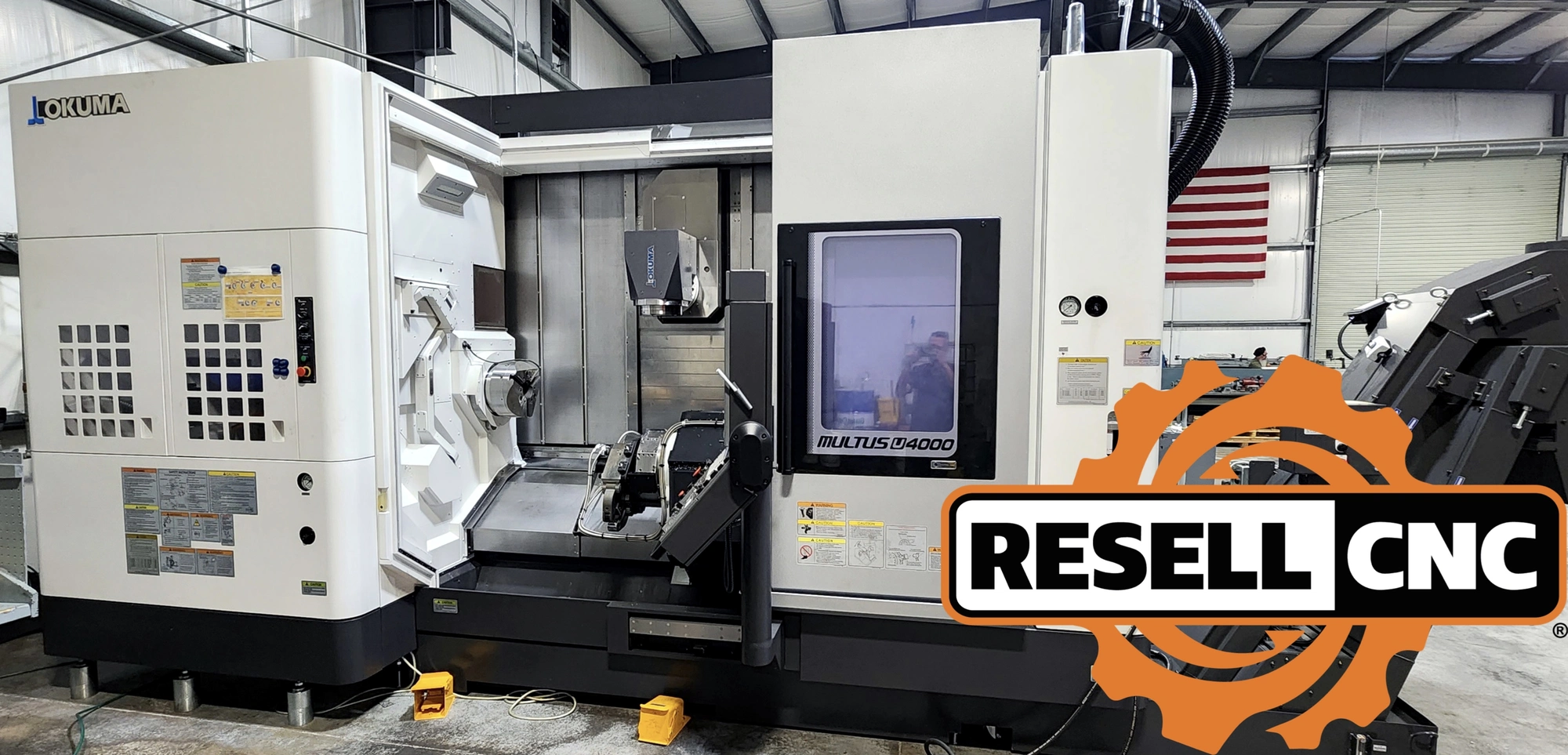

USED 2022 Okuma Multus U4000-2SW

X2nd Chuck Description: Schunk THW3-315 Quick Jaw Change Chuck

X2nd Turret Live Tooling: false
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: true
Additional Control Options: Collision Avoidance System (Cas)

PC Advanced One Touch IGF Conversational Programming

Lathe Tool Index Function - Multi Edge

12 Position Negative Tool Radius Compensation

Auto Gauging

Y-Axis Gauging w/ Slope Gauging

(8) Sets Spare M-Codes

Machine Advanced One Touch Igf Conversational Programming

Steady Rest Enable/Disable Switch

Variable Spindle Speed Threading, Left (Main)

Thread Phase Matching

Feed Hold During Threading

Inverse Time Feed Function

Additional Machine Specs: Travels:

- C-Axis: 360,000°

- Y-Axis: 11.81" (+/-5.91")

- B-Axis: -30 / +210°

- B-Axis (Upper Turret): 0.001°



Left Spindle:

- BB: 3,000 RPM

- BB Spindle (A2-11) with F2511 Cylinder and Draw Tube - Main Turret

- Liquid Cooled Integral Spindle

Right Spindle:

- Right: 3,800 RPM

- Spindle: SR-1670 Hydraulic Cylinder and Draw Tube Dual Function - Upper Turret

- Liquid Cooled Integral Spindle



High Pressure Coolant Pump with 50-Gal Reservoir

Type B, Niagara Shower Coolant

Royal Mist Collector Package FX-1200

Touchsetter Auto for 2 Saddle

Multi-Tab Transformer (100kva)

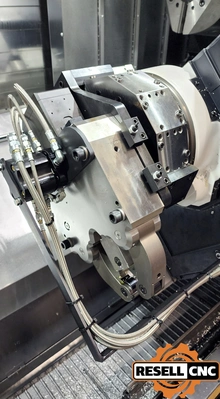

Steady Rest Package to Mount to Lower Turret: Slux-Z-3 (1.97 - 7.88" Capacity)

Step Stool Grate in Conveyor for Operator

Bar Capacity: 3.58
B Axis: true
C Axis: true
Chip Removal: Chip Conveyor
Chuck Description: Schunk THW3-315 Quick Jaw Change Chuck

Control Make Model: Okuma OSP-300 CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 60.0
High Pressure Coolant Psi: 1000.0
Live Milling Hp: 30
Live Milling Max Rpm: 12,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Transformer, Mist Collector
Max Cutting Turning Diameter: 25.59
Max Swing Over Bed: 25.59
Max Swing Over Saddle: 12.6
Max Turning Cutting Length: 59.06
Probe Make Model: Renishaw RMP600 RMI-Q
Programmable Tailstock: false
Second Spindle Bore: 3.15
Second Spindle Speed: 3,800
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 5.51
Spindle Motor: 30
Spindle Nose: A2-8
Spindle Speed: 4200.0
Sub Spindle: true
Tailstock: false
Tool Positions: 80.0
Total Spindles: 2
Turret Options: Upper Turret: Capto C6

Lower Turret: Static Tooling

Twin Turret: true
X Travel: 27.36
Y Axis: true
Z Travel: 62.99
