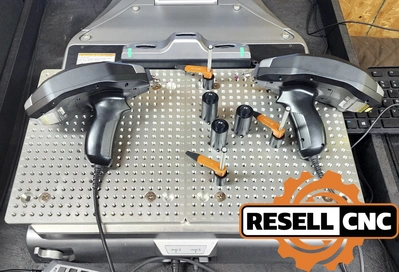

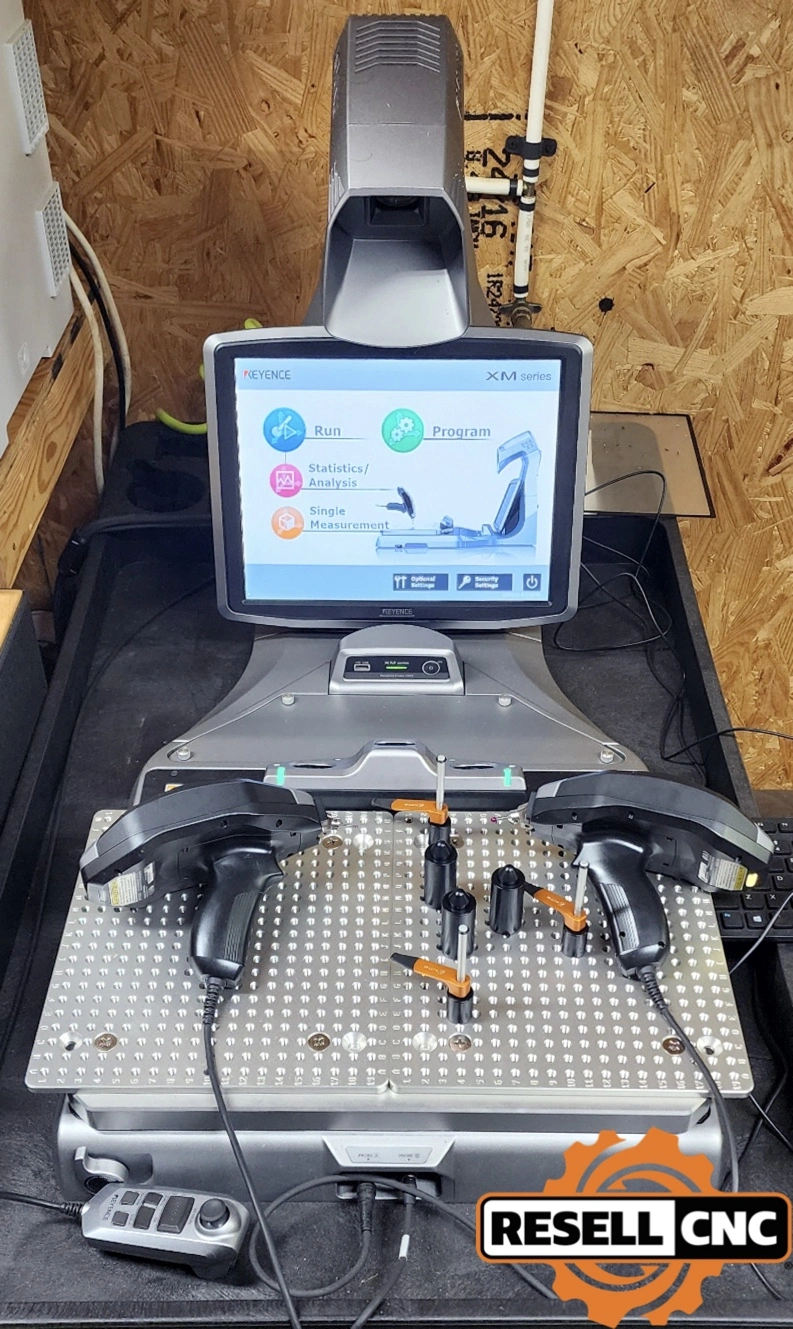

USED 2021 Keyence XM-T2200

Of Axis: 3
X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Min. Display Unit:

- Distance: 1μm

- Angle: 0.0001°



Stage:

- Withstand Load: 55.12 lbs

- X-Axis Movable Range: +/- 3.94"

- Rotation Range: +/- 60°

- No. of Markers: 6

- Light Source: Near-infrared LED (870nm)



Display: 15" LCD Monitor

No. of Probes: 2



Equipped With:

(2) 5mm Probe Stylii

2.5mm Stylus

1mm Stylus

AS9102

Probe Extension Cable

CAD Import / Export

Fixture Plate

NOTE: Clamps and Risers are NOT Included

Approx Weight And Dims Of Accessories: Head (including Camera + Cable): 88 lbs

Console (including Cable): ~1 lb

B Axis: false
C Axis: false
Cmm Type: Portable Arm
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Repeatability: +/- 4μm
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
X Travel: 23.62
Y Axis: false
Y Travel: 11.81
Z Travel: 7.87
