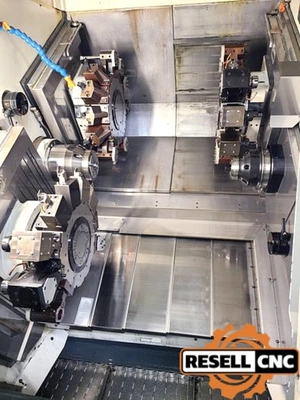

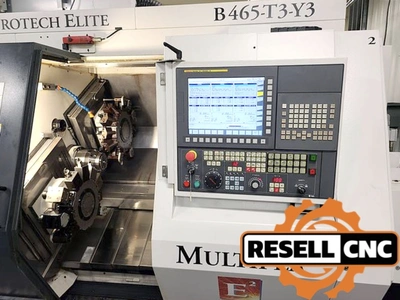

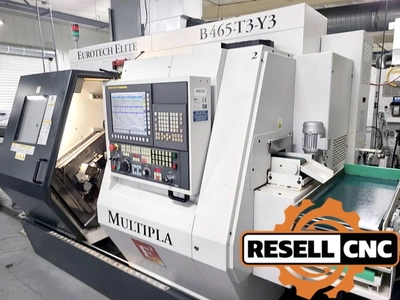

USED 2020 Eurotech B465 T3-Y3 Multipla

X2nd Chuck Description: Royal QC-42 Collet Chuck
X2nd Turret Live Tooling: true
X4th Axis: false
X5th Axis: true
Additional Machine Specs: Travels:

- Y1/Y2/Y3: 3.54" (-1.57 / +2.32)

- C-Axis Min. Programmable Value: 0.001°

- B-Axis Stroke (Rapid Traverse): 26.35 - 1181 IPM



Rapid Traverse:

- X1/X2/X3: 708 IPM

- Z1/Z2/Z3: 1181 IPM

- Y1/Y2/Y3: 354 IPM



Sub-Spindle:

- Chuck Diameter: 0.75"

- Offset Stroke: 4.72"



Tri-Mist 850 G2 Mist Collector

EU-1000-2 HP Coolant System

(2) Chip Conveyors: Standard + LNS Magnetic Chip Conveyor

200mm Ejector Option

Fargo DA 51XN1/FE Transformer

Bar Capacity: 2.56

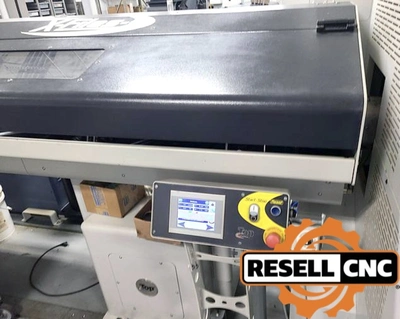

Barfeeder Make Model: 12 Foot Top X-Files Magazine Barfeed
B Axis: true
C Axis: true
Chip Removal: Chip Conveyor
Chuck Description: Royal QC-80
Chuck Size: 10.0
Chuck Type: Collet
Control Make Model: Fanuc 31iB CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 37.5
Live Milling Max Rpm: 4000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Transformer, Mist Collector
Max Cutting Turning Diameter: 20.0
Max Swing Over Bed: 20.0
Programmable Tailstock: false
Second Spindle Bore: 2.17
Second Spindle Motor: 15
Second Spindle Nose: 5
Second Spindle Speed: 5,000
Single Turret: false
Single Turret Live Tooling: true
Spindle Bore: 3.15
Spindle Motor: 35
Spindle Nose: 6
Spindle Speed: 4000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 192.0
Total Spindles: 2
Turret Options: Number of Turrets: 3

Number of Stations: 12

Number of Tools: 192

Turret Indexing: 15 Seconds

Number of Live Tool Stations: 36

Number of Live Tools: 72

Motor Powered: 5 Geared

Twin Turret: false
Y Axis: true
