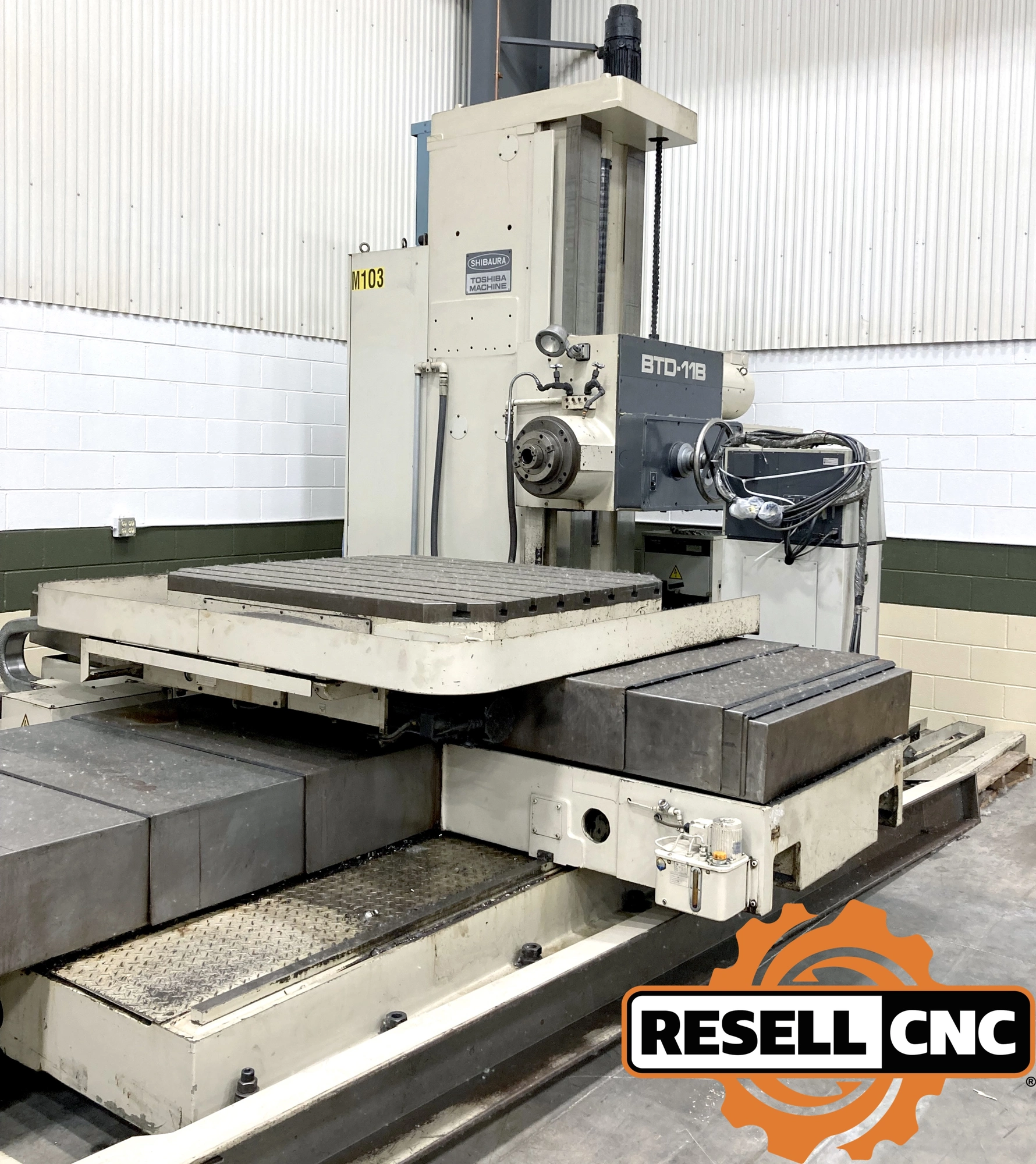

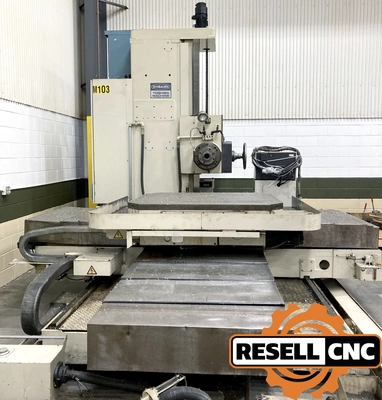

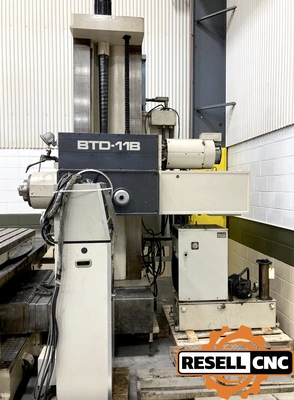

USED 1988 Toshiba BTD-11B

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: T-Slot Rotary Table: 55" x 63"

Spindle Bore: 4.33"



2-Axis Positioning

Variable Spindle Speeds

Shot Pin each 90°

Lift Up Chip Conveyor

Auger Chip Conveyor Under Table

Coolant Tank and Pump

Coolant Guard Around Table

No Tool Changer

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

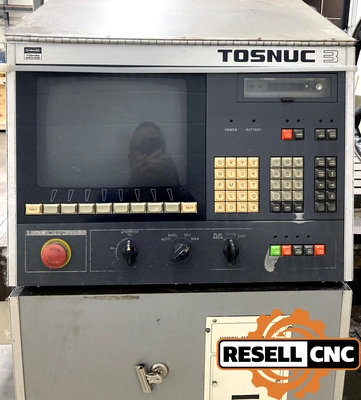

Control Make Model: Tosnuc 3 CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 13890.0
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 20
Spindle Speed: 1600.0
Spindle Taper Type: CAT#50
Sub Spindle: false
Table Pallet Indexing: Full 4th Axis (Continuous)
Tailstock: false
Twin Turret: false
W Travel: 25.0
X Travel: 78.0
Y Axis: false
Y Travel: 59.0
Z Travel: 51.0
