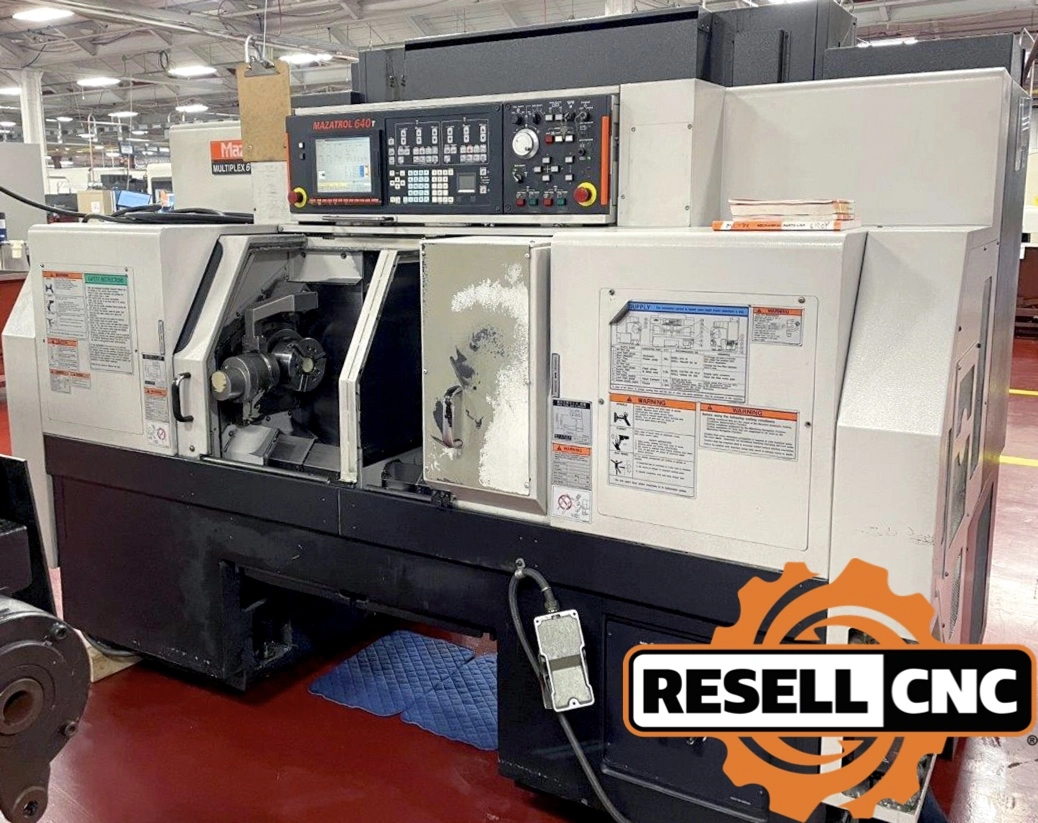

USED 2008 Mazak Multiplex 6100Y

X2nd Turret Live Tooling: false
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Travels:

- Y-Axis: 3.15" (+/- 1.57")



Turret Air Blast

Bar Capacity: 2.0
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chuck Size: 6.0

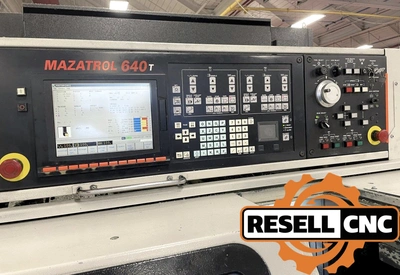

Control Make Model: Mazatrol 640T CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 40.06
High Pressure Coolant Psi: 213.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Max Cutting Turning Diameter: 9.06
Max Swing Over Bed: 9.06
Max Turning Cutting Length: 17.57
Programmable Tailstock: false
Second Chuck Size: 6.0
Second Spindle Bore: 2.4
Second Spindle Motor: 30
Second Spindle Nose: A2-5
Second Spindle Speed: 6,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 2.4
Spindle Motor: 30
Spindle Nose: A2-5
Spindle Speed: 6000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Twin Turret: false
X Travel: 7.88
Y Axis: true
Z Travel: 14.25
