50 Taper, 3 Axis, Bridge Type, Mitsubishi M730 CNC
| size | 125.98" x 80.31" | 125.98" x 80.31" |
| X Travel | 120" | 3,048 mm |
| Y Travel | 94" | 2,387.6 mm |
| Z Travel | 42" | 1,066.8 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 40 | 40 |
| Taper | 50 | 50 |
| Table-W | 80.31" | 2,039.9 mm |
| Table-L | 125.9" | 3,197.9 mm |
| # Axis | 3 | 3 |
| Control | CNC (Mitsubishi M730 Cnc Control) | CNC (Mitsubishi M730 Cnc Control) |

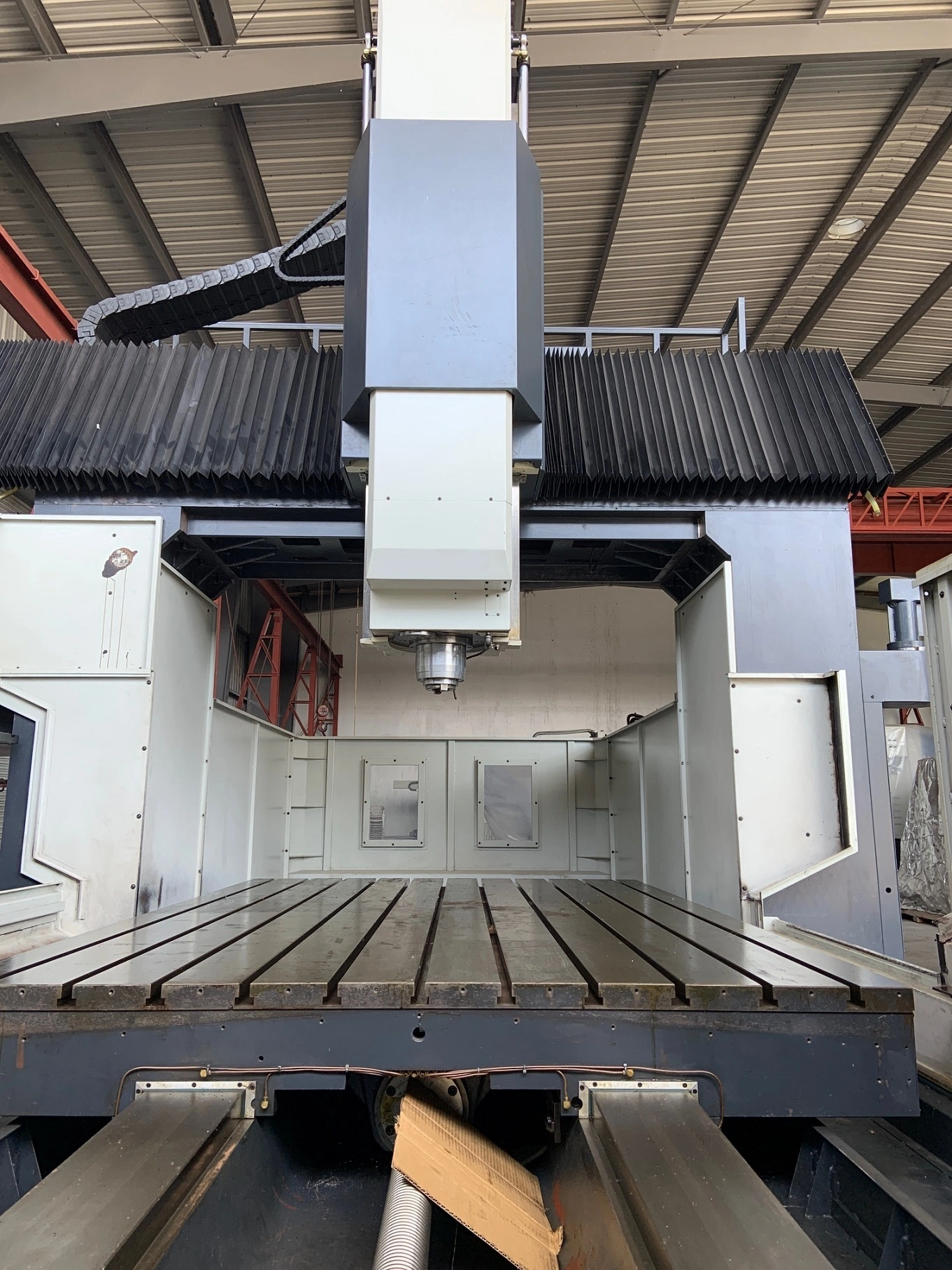

Mighty Viper 3240AG Cnc Bridge Type Machining Center
Specifications:
Working Surface of Table 125.98" x 80.31"
Travel: X-Axis 120.08"
Y-Axis 94.49"
Z-Axis 42.13"
Maximum Table Load 24,250 Lbs.
Dist, Spindle Center to Column 16.22"
Width Between Column 98.82"
Dist, Spindle End to Table 15.35" - 57.48"
Spindle Type Gear
Spindle Speeds Up to 6,000 Rpm
Spindle Nose Taper Iso #50
Cutting Feed Rate 0.34 - 196.8 Ipm
Rapid Travers Rate X,Y,Z 393 Ipm
Tool Changer 40 Tool
Maximum Tool Weight 44 lbs.
Maximum Tool Size 5.11" x 13.78"
Tool SHank Cat #50
Spindle Drive Motor 30 Hp
Shipping Dimensions
180" x 80" x 130", 30,000 lbs, Cross Beam
350" x 160" x 120", 65,000 lbs, Base & Columns
170" x 100" x 70", 8,000 lbs, Chip Conveyors
120" x 95" x 60", 6000 lbs, Accessories (ATC, Partial Guarding, Control Pendant...)
Mitsubishi M730 Cnc Control
Automatic Lubrication System
40 Tool Tool Changer
Leveling Bolts & Blocks
Rs232 Serial Interface
Coolant System
Spindle Oil Cooler
Link Type Chip Conveyor
Convection Heat Exchanger in Control Cabinet
Operation Manual & Electrical Drawing
Remote Manual Pulse Generator
