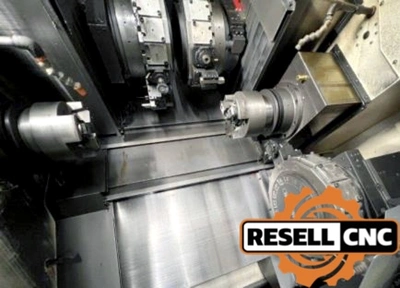

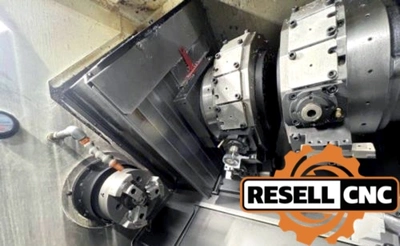

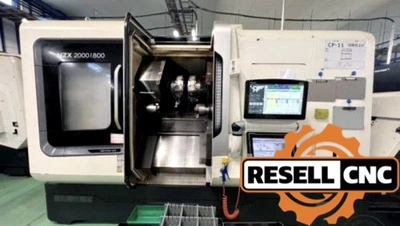

USED 2019 DMG Mori NZX2000/800STY3

X2nd Chuck Description: Micro Centric MBS 200 Collet Chuck
X2nd Turret Live Tooling: true
X2nd Turret Positions: 16
X4th Axis: false
X5th Axis: true
Additional Control Options: 21.5" Color ErgoLine Touch Screen

(5) External M-Codes

3D Coordinate Conversion

Hobbing

Additional Machine Specs: Travels:

- X2 / X3 Axis: 8.3"

- Y1 / Y2 / Y3 Axis: 4.3"

- Z2 Axis: 31.9"

- Z3 Axis: 8.3"



Coolant Gun

Coolant - Chuck Top

Air Purge

Air Blow for Tool Tip

Tool Retract and Recover

Chip Blaster/Chip Chiller High Pressure Coolant System

Bar Capacity: 2.5
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor
Chuck Description: Micro Centric MBS 200 Collet Chuck
Chuck Size: 8.0
Chuck Type: Collet
Control Make Model: Celos F31iB CNC Control
Control Options: Ethernet / LAN
Coolant Type S: High Pressure Coolant
Distance Between Centers: 44.4
Live Milling Hp: 10
Live Milling Max Rpm: 6,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Auto Door, Chip Blast, Parts Catcher, Tool Presetter, Worklight
Max Cutting Turning Diameter: 12.5
Max Swing Over Bed: 31.5
Max Turning Cutting Length: 31.8
Programmable Tailstock: false
Second Bar Capacity: 2.5
Second Chuck Size: 8.0
Second Spindle Bore: 2.9
Second Spindle Motor: 30
Second Spindle Nose: A2-6
Second Spindle Speed: 5,000
Single Turret: false
Single Turret Live Tooling: true
Spindle Bore: 2.9
Spindle Motor: 30
Spindle Nose: A2-6
Spindle Speed: 5000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 16.0
Total Spindles: 2
Twin Turret: true
X Travel: 8.3
Y Axis: true
Z Travel: 11.8
