X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Programmable Coolant Nozzle
Step Up Transformer
Misc. Tool Holders
B Axis: false
C Axis: false
Chip Removal: Chip Auger
Chip To Chip Time: 3.6

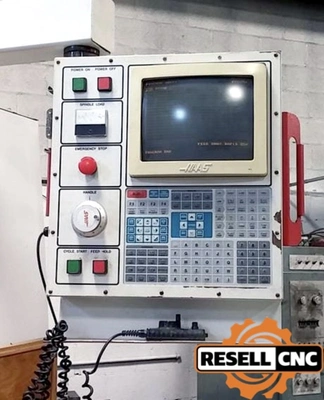

Control Make Model: Haas CNC Control
Control Options: Rigid Tapping, USB
Coolant Type S: Programmable Coolant
Cutting Feed Rate: 500
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 4000.0
Max Tool Diameter: 2.5
Max Tool Diameter Adjacent: 5.0
Max Tool Length: 16.0
Max Tool Weight: 12.0
Programmable Tailstock: false
Rapid Traverse: 600
Rotary Table Trunnion: Wired for 4th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 20
Spindle Nose To Table Top: 4-34
Spindle Speed: 7500.0
Spindle Taper Type: BT40
Sub Spindle: false
Tailstock: false

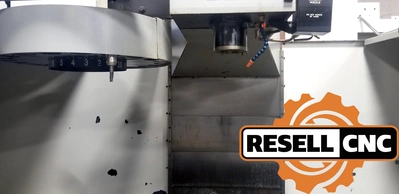

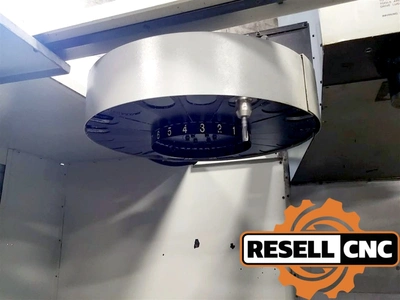

Tool Changer Type: Umbrella
Tool Change Time: 2.8
Tool Magazine Capacity: 20.0
Twin Turret: false

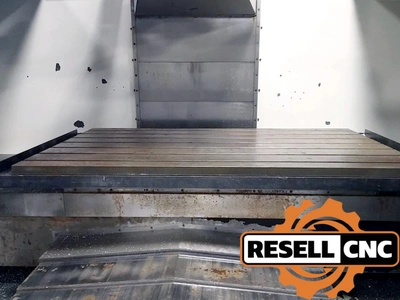

Vertical Table Pallet Size: 64" x 36
X Travel: 64.0
Y Axis: false
Y Travel: 40.0
Z Travel: 30.0
