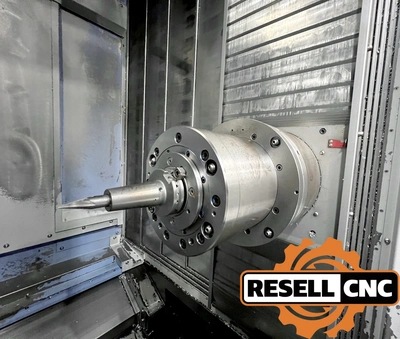

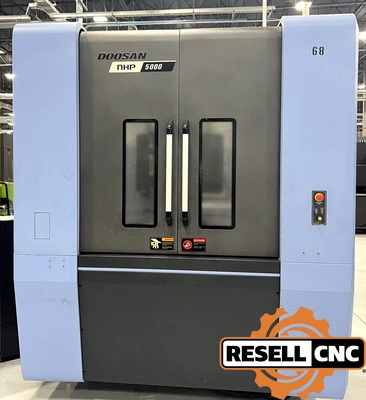

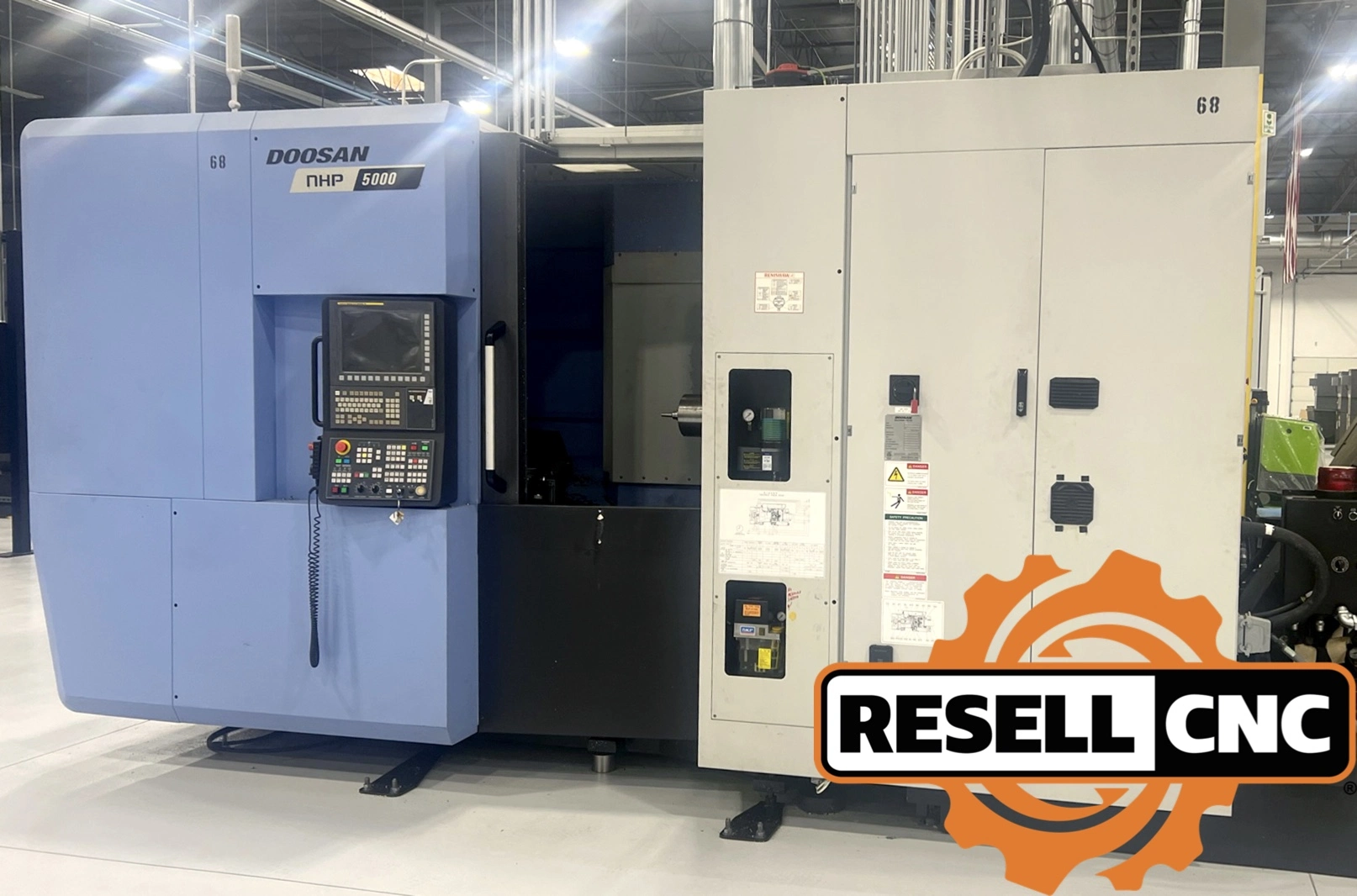

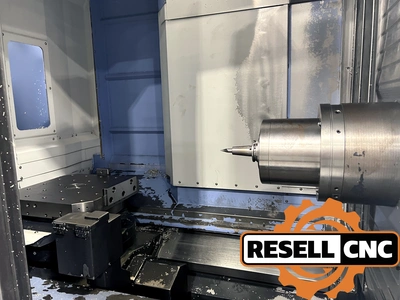

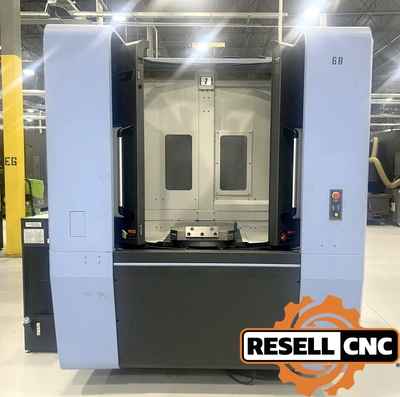

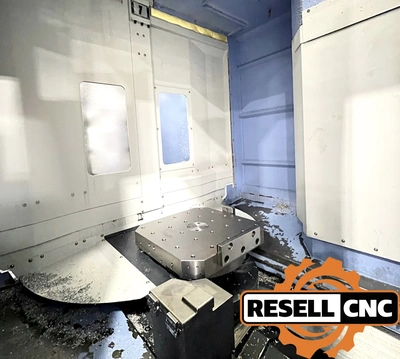

USED 2019 Doosan NHP-5000

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 15" Color LCD Screen

Additional Machine Specs: LNS ChipBlaster M-30 High Pressure Coolant System

HydCool Spindle Chiller

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Fanuc 31i-B CNC Control
Control Options: Color Monitor, USB, Ethernet / LAN
Coolant Type S: Flood Coolant, High Pressure Coolant
Horizontal Table Pallet Size In MM: 500.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Chip Blast, Worklight
Max Table Pallet Load: 1100.0
Max Tool Diameter: 3.0
Max Tool Diameter Adjacent: 6.7
Max Tool Length: 21.7
Max Tool Weight: 26.5
Number Of Pallets: 2.0
Programmable Tailstock: false
Rapid Traverse: 2362
Single Turret: false
Single Turret Live Tooling: false
Spindle Center To Table Top: 3.9-38.6
Spindle Motor: 50
Spindle Speed: 15000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Table Pallet Indexing: Full 4th Axis (Continuous)
Tailstock: false
Tool Changer Type: Chain
Tool Change Time: 0.9
Tool Magazine Capacity: 120.0
Twin Turret: false
X Travel: 28.74
Y Axis: false
Y Travel: 28.74
Z Travel: 34.6
