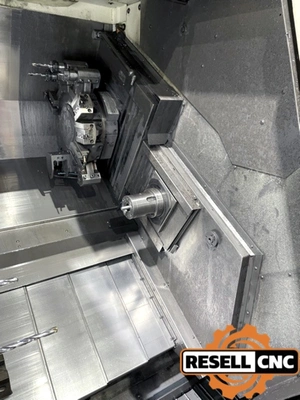

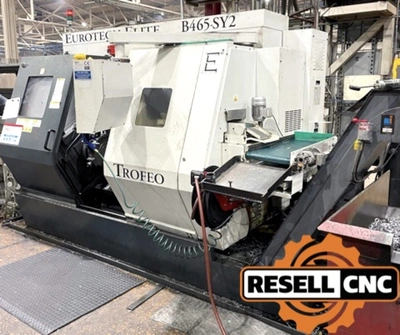

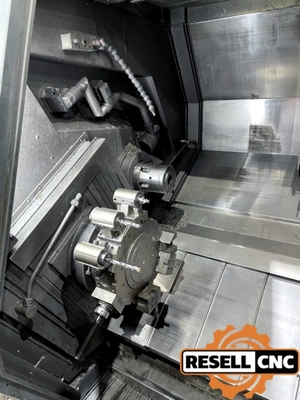

USED 2013 Eurotech B465L/Y2

X2nd Turret Live Tooling: false
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: true
Additional Machine Specs: Travels:

- C-Axis Min. Programmable Value: 0.001°



Mayfran Chip Conveyor

Turmoil Chiller

Bar Capacity: 2.75
Barfeeder Make Model: Tops XF-S-470 Barfeeder
B Axis: false
C Axis: true
Chip Removal: Chip Conveyor
Chuck Size: 8.0

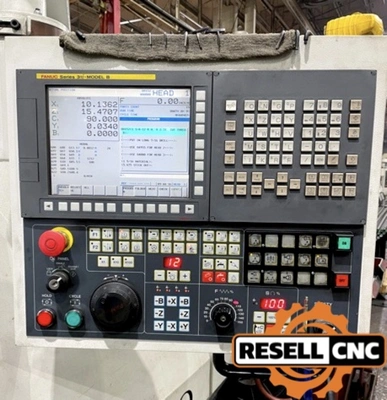

Control Make Model: Fanuc 31i-B CNC Control
Coolant Type S: Thru-Spindle Coolant, High Pressure Coolant
Distance Between Centers: 37.5
High Pressure Coolant Psi: 1000.0
Live Milling Hp: 5
Live Milling Max Rpm: 4,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Transformer, Mist Collector, Tool Eye
Max Cutting Turning Diameter: 20.0
Max Swing Over Bed: 20.0
Programmable Tailstock: false
Second Chuck Size: 6.0
Second Spindle Bore: 2.17
Second Spindle Motor: 15
Second Spindle Speed: 5,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 3.15
Spindle Motor: 35
Spindle Nose: 6
Spindle Speed: 4000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Total Spindles: 2
Turret Options: Number of Turrets: 2

Number of Tools: 12

Turret Indexing: 15 Seconds

Number of Live Tool Stations: 24

Twin Turret: true
Y Axis: true
