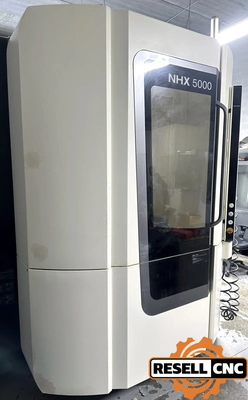

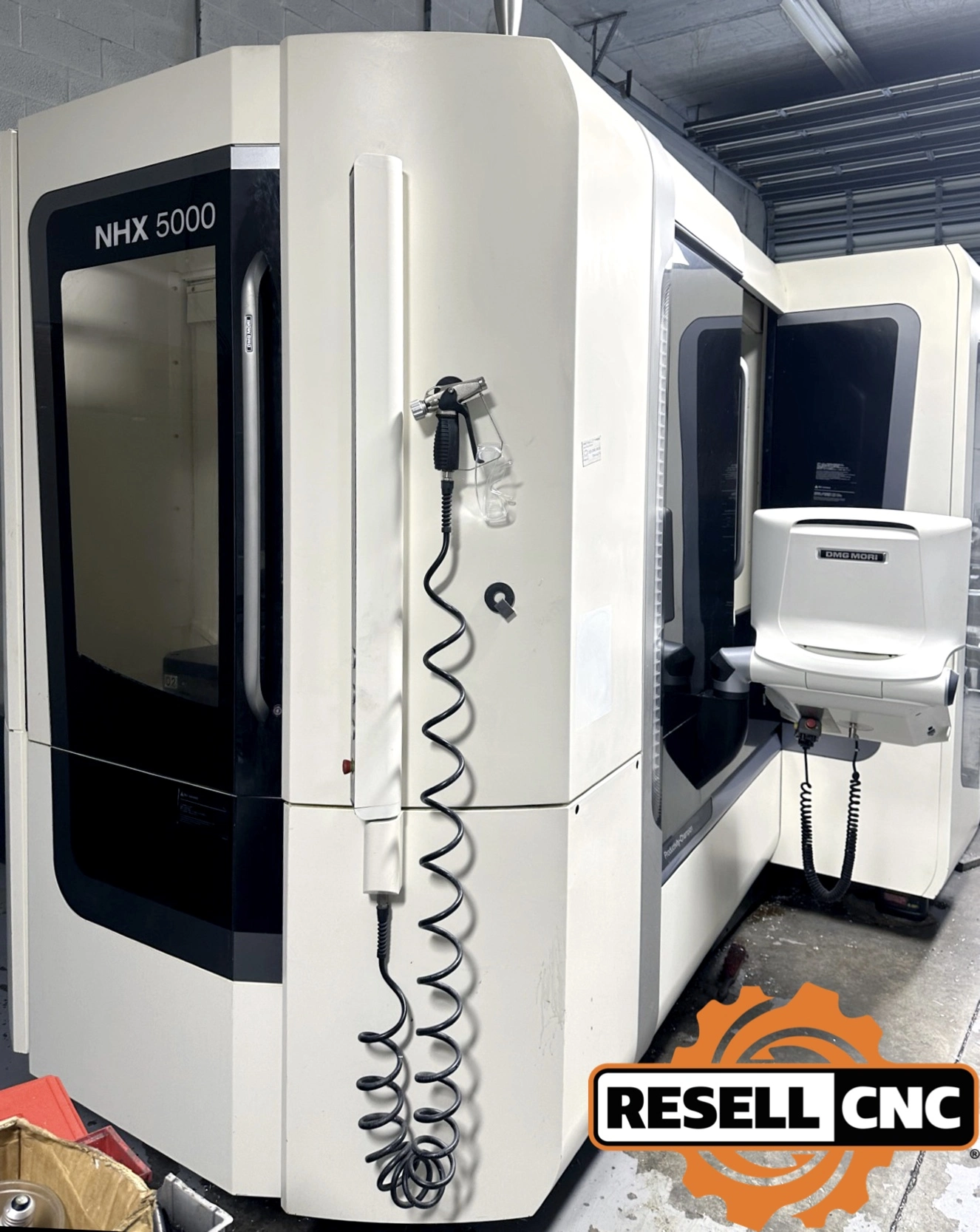

USED 2015 DMG Mori NHX5000

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

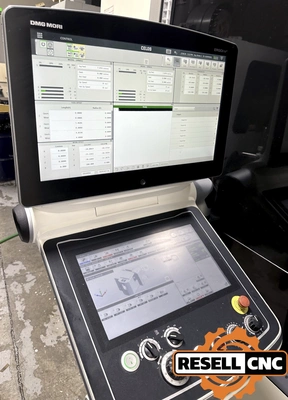

Additional Control Options: CELOS - ERGOline Touch System

21.5" Touch Screen

Additional Machine Specs: Coolant Gun

ChipBlaster

MistBlaster Mist Collector

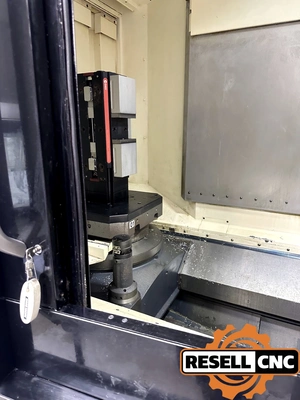

(2) Chick Tombstones

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Mori M730UM CNC Control
Control Options: Color Monitor, Coordinate Rotation and Scaling, Inch/Metric Conversion, Manual Pulse Generator / Pendant, Macros
Coolant Psi: 1000.0
Coolant Type S: Thru-Spindle Coolant, High Pressure Coolant
Horizontal Table Pallet Size In MM: 500.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Tool Parts Probe, Mist Collector, Automatic Tool Length Measurement System
Max Table Pallet Load: 1100.0
Max Tool Diameter: 2.7
Max Tool Diameter Adjacent: 6.6
Max Tool Length: 21.65
Max Tool Weight: 26.4
Number Of Pallets: 2.0
Probe Make Model: Renishaw OMP60
Programmable Tailstock: false
Rapid Traverse: 2362
Single Turret: false
Single Turret Live Tooling: false
Spindle Center To Table Top: 3.1-31.9
Spindle Motor: 50
Spindle Speed: 15000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Table Pallet Indexing: Full 4th Axis (Continuous)
Tailstock: false
Tool Changer Type: Side Mount
Tool Change Time: 0.9
Tool Magazine Capacity: 60.0
Twin Turret: false
X Travel: 28.74
Y Axis: false
Y Travel: 28.74
Z Travel: 34.6
