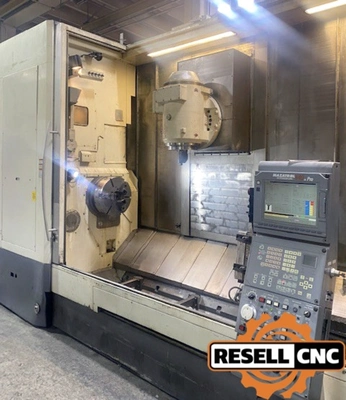

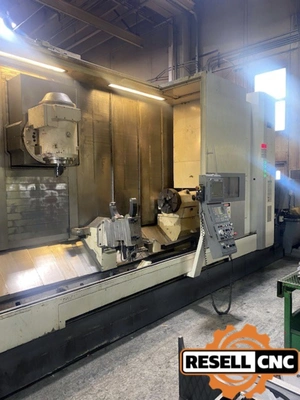

USED 2002 Mazak E-650H/3000

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Control Options: Comparison Stop

G54.1

Flash Tool

Cylinder

Spiral Interpolation

EIA 3D Compensation

Geometric

EXT Data I/O

Hobbing

Shape Comp.

Thread Inverse Time

3D Coordinate Rotation

AUTO ATLM

Navigation

EIA Helical Tapping Cycle

Mazatrol Planet Tap

Additional Machine Specs: Travels:

- Y-Axis: 25.6"

- C-Axis Indexing: 0.0001°

- B-Axis Travel: -30° ~ +210°

- B-Axis Indexing / Contouring: 0.0001°



Tailstock:

- Quill Travel: 6.3"

- Travel: 118.15"



SMW SLU 5.2 Programmable Hydraulic Steadyrest

Coolant Through Milling Head

Spindle Chiller

Bar Capacity: 6.5
B Axis: true
B Axis Travel: -30 ~ +210

C Axis: true
Chip Removal: Chip Conveyor
Chuck Size: 18.0

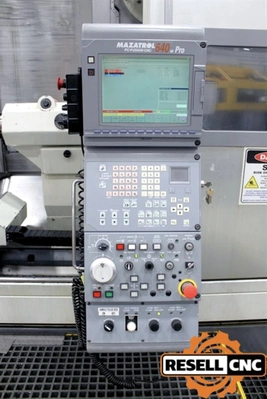

Control Make Model: Mazatrol 640M Pro CNC Control
Control Options: Helical Interpolation, Synchronized Tapping, Inch/Metric Conversion, Rotation and Scaling, EIA/ISO Code Input Function
Coolant Type S: High Pressure Thru-Spindle Coolant
Distance Between Centers: 126.0
Live Milling Max Rpm: 10,000

Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Mist Collector, Automatic Tool Length Measurement System
Max Cutting Turning Diameter: 36.2
Max Swing Over Bed: 36.2
Max Turning Cutting Length: 120.0
Probe Make Model: Renishaw Probe
Programmable Tailstock: true
Rapid Traverse: 1575/1181
Second Chuck Size: 18.0
Second Spindle Bore: 6.69
Second Spindle Motor: 70
Second Spindle Speed: 1600
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 6.69
Spindle Motor: 70
Spindle Speed: 1600.0
Steadyrest Capacity: 14.0
Steadyrest Type: Hydraulic
Sub Spindle: true
Tailstock: false
Tailstock Taper: MT6
Tool Positions: 80.0
Turret Options: CAT#50 Spindle

Twin Turret: false
X Travel: 40.35
Y Axis: true
Z Travel: 122.91
