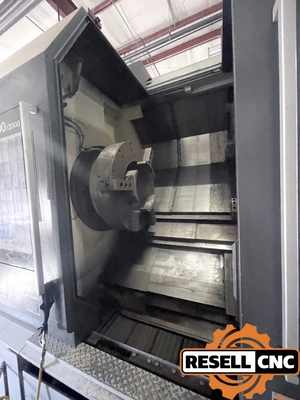

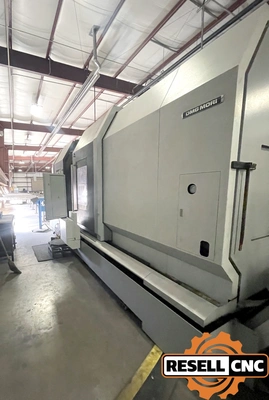

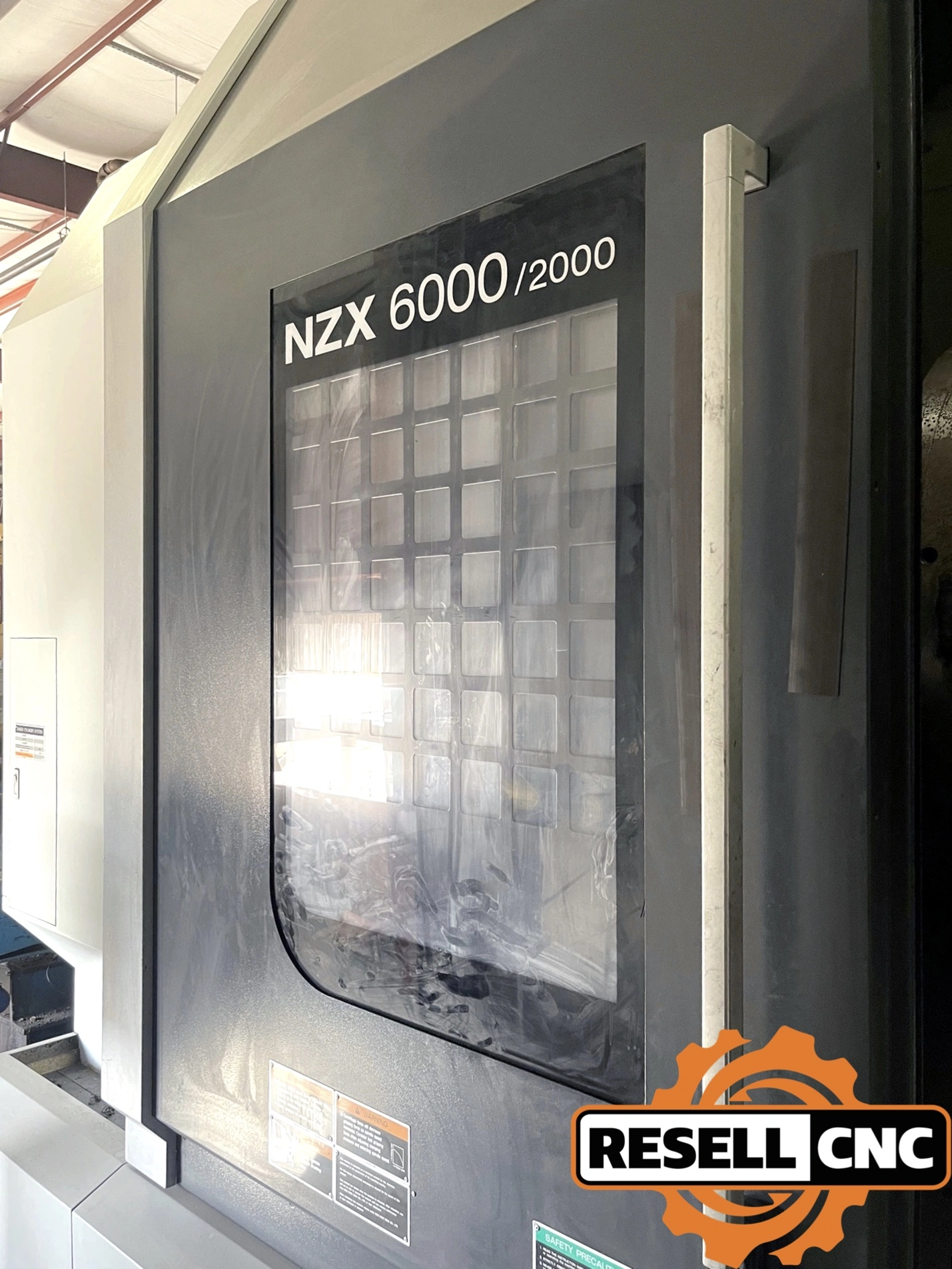

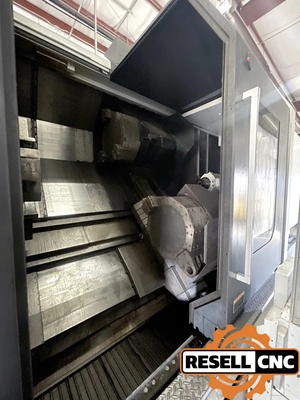

USED 2014 DMG Mori NZX-6000E/2000L

X2nd Turret Live Tooling: false
X2nd Turret Positions: 10
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Travels:

- X2-Axis: 13.39"

- Z2-Axis: 78.35"



Rear Chuck

Max. Turning / Cutting Length: 72.44"

Max. Cutting / Turning Diameter: 26.38"

Bar Capacity: 22.0
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chuck Description: 3-Jaw
Chuck Size: 42.0
Chuck Type: Air
Control Make Model: Mori M730BM CNC Control
Distance Between Centers: 80.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Cutting Turning Diameter: 35.43
Max Swing Over Bed: 47.24
Max Swing Over Cross Slide: 28.35
Max Turning Cutting Length: 78.74
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 22.0
Spindle Motor: 75
Spindle Nose: A2-20
Spindle Speed: 1200.0
Sub Spindle: false
Tailstock: true
Tool Positions: 12.0
Twin Turret: true
X Travel: 19.0
Y Axis: false
Z Travel: 84.65
