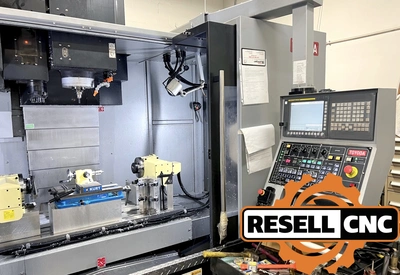

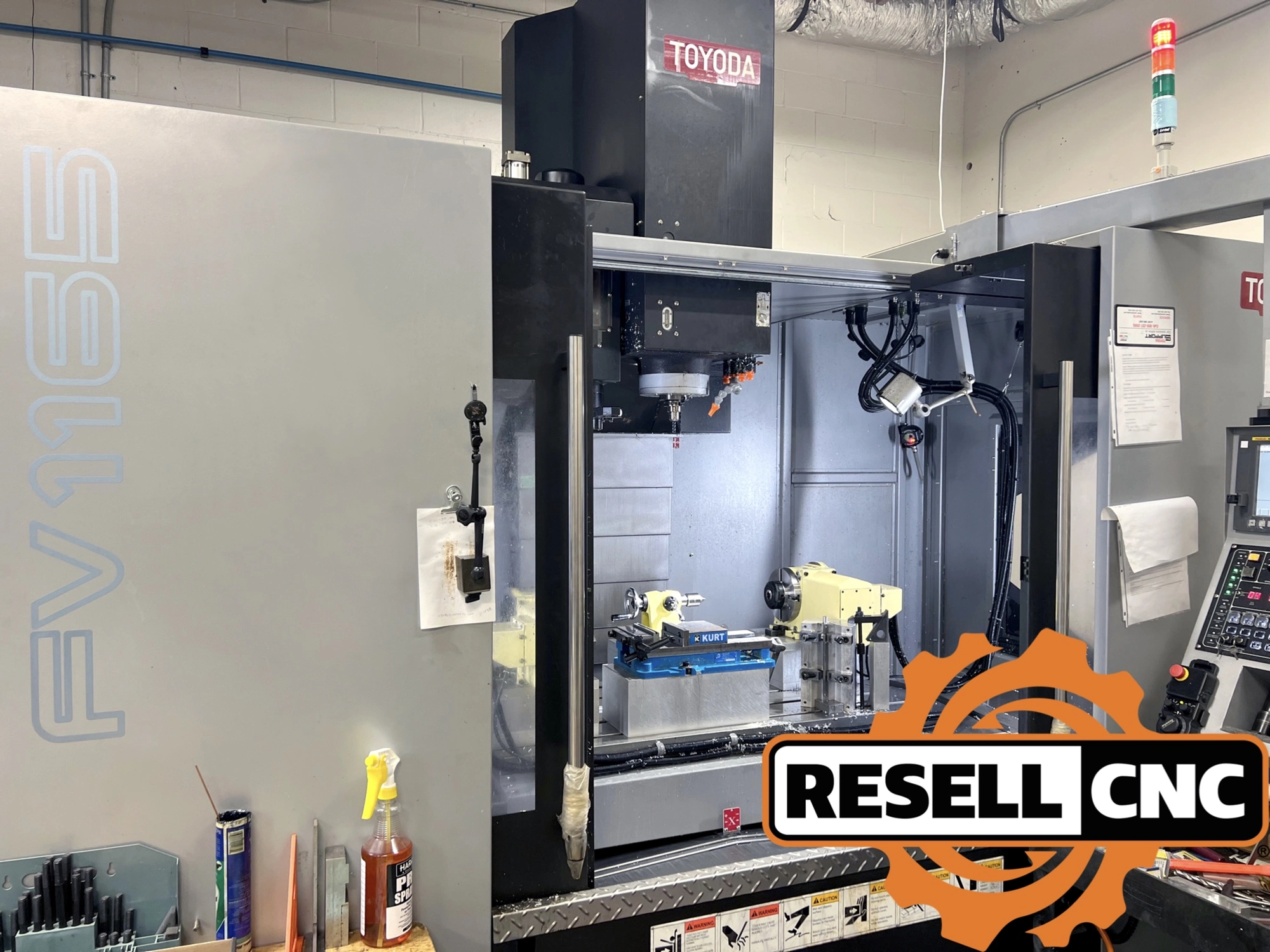

USED 2018 Toyoda FV1165

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Renishaw OMP40-2 Probing Kit

INR Chiller

Z-Axis Risers

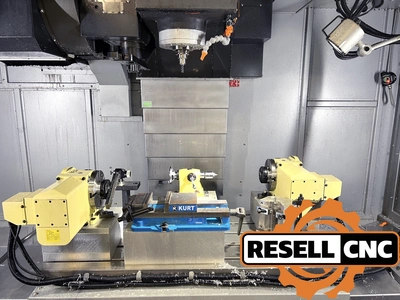

NOTE: Vises and 4th Axis Rotary in Photos is NOT Included.

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Fanuc Oi-MF CNC Control
Control Options: Rigid Tapping
Coolant Type S: Thru-Spindle Coolant, Programmable Coolant, High Pressure Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Tool Presetter
Max Table Pallet Load: 2425.0
Probe Make Model: Renishaw OMP40-2
Programmable Tailstock: false
Rapid Traverse: 1181/1181/945
Rotary Table Trunnion: Wired for 4th Axis, Wired for 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 25
Spindle Nose To Table Top: 4.9-28.5
Spindle Speed: 8000.0
Spindle Taper Other: CAT 40 Big Plus
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Magazine Capacity: 40.0
Twin Turret: false
Vertical Table Pallet Size: 51.25" x 25.6
X Travel: 43.3
Y Axis: false
Y Travel: 25.6
Z Travel: 23.6
