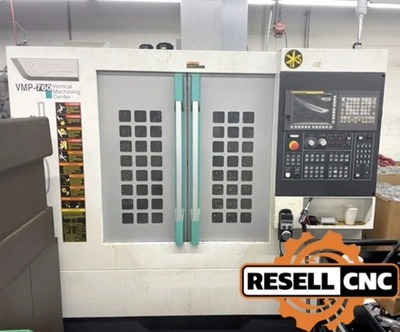

USED 2018 Feeler VMP-760

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 200 Block Look Ahead

Manual Guide I

Additional Machine Specs: Coolant Gun

Oil Skimmer



Thru-Spindle Coolant Ready - Pump NOT Included

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Fanuc 0i-M CNC Control
Coolant Psi: 500.0
Coolant Type S: Thru-Spindle Coolant Ready
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 661.0
Max Tool Diameter: 3.15
Max Tool Diameter Adjacent: 5.12
Max Tool Length: 9.84
Max Tool Weight: 15.44
Programmable Tailstock: false
Rapid Traverse: 1889/1889/1259
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 20
Spindle Nose To Table Top: 3.15-23.23
Spindle Speed: 12000.0
Spindle Taper Type: BT40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Change Time: 1.7
Tool Magazine Capacity: 24.0
Twin Turret: false
Vertical Table Pallet Size: 25.59" x 16.54
X Travel: 29.92
Y Axis: false
Y Travel: 16.54
Z Travel: 20.08
