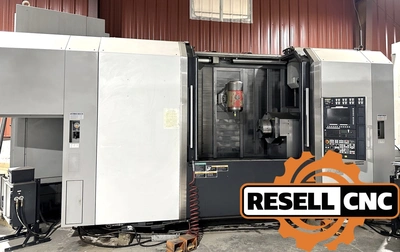

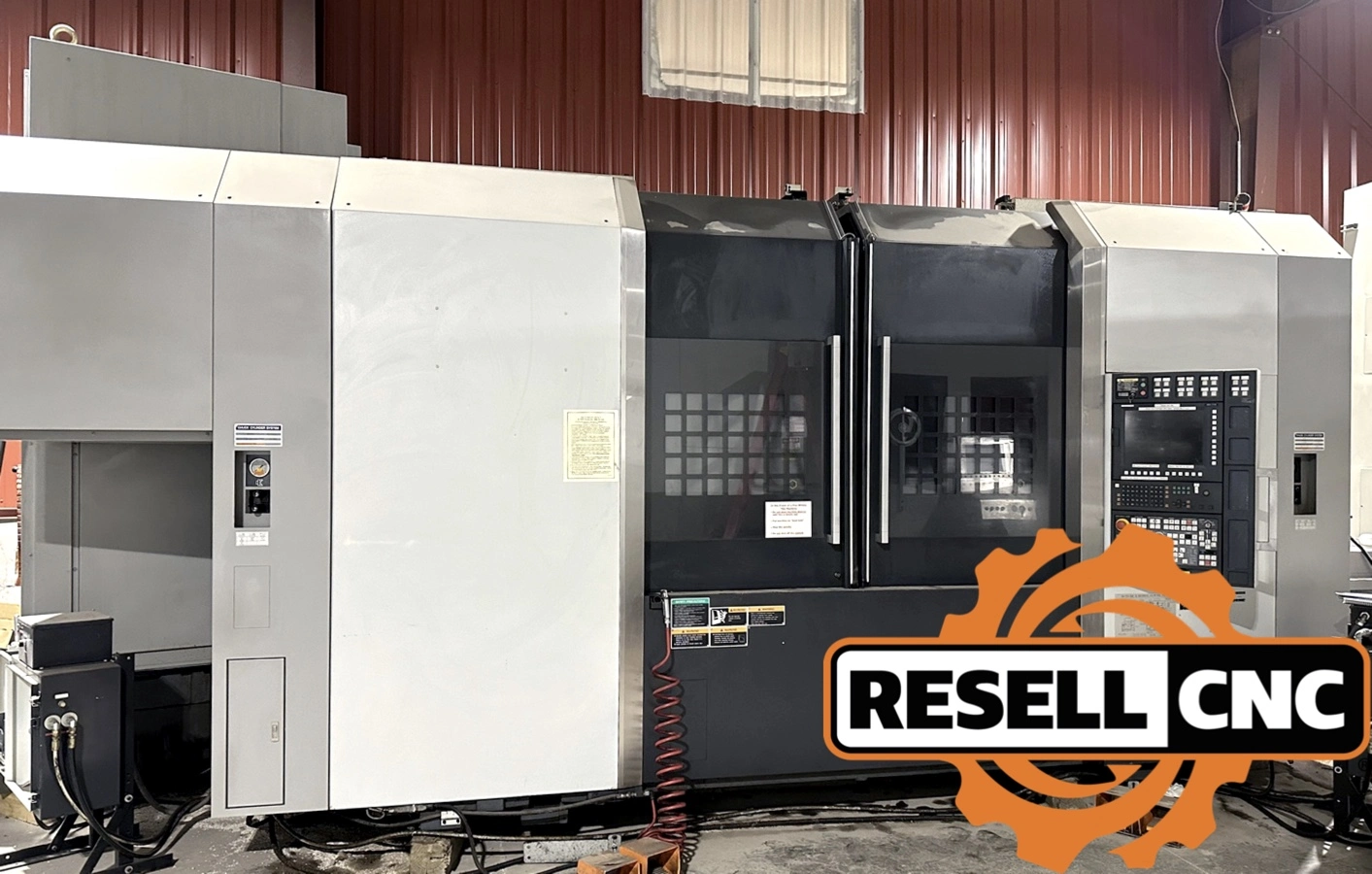

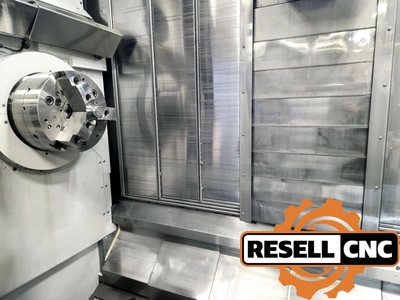

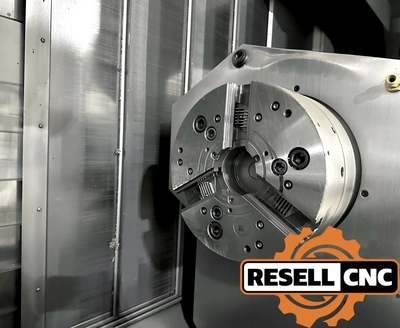

USED 2007 Mori Seiki NT4300/1500S

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Machine Specs: Travels:

- X2-Axis: 7.7"

- Z2-Axis: 60"

- Y-Axis: +/- 8.3"

- W-Axis: 63"

- C-Axis Indexing: 0.0001°

- B-Axis Indexing: 0.0001°



Milling Spindle Taper: Capto C6

Tool Diameter: 2.7" / 5.5"

Tool Length: 15.7"

Tool Weight: 22 lbs



LNS Turbo MF4 Chip Conveyor

High Pressure Coolant System

Bar Capacity: 3.5
B Axis: true
B Axis Travel: 0.0001°

C Axis: true
Chip Removal: Chip Conveyor

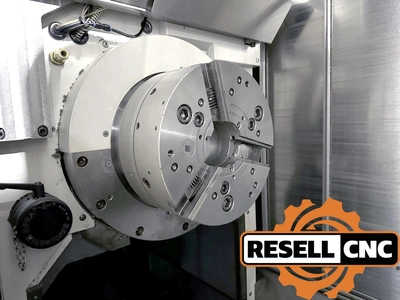

Chuck Size: 12.0

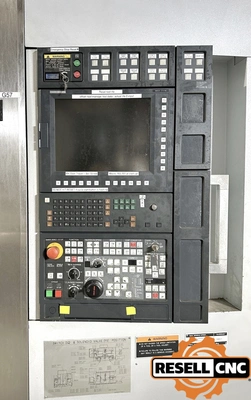

Control Make Model: Mori Seiki MSX-711III CNC Control
Coolant Type S: High Pressure Coolant
Distance Between Centers: 73.3
Live Milling Hp: 24.7
Live Milling Max Rpm: 12,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Machine Options: Tool Presetter, Tool Parts Probe
Max Cutting Turning Diameter: 28.7
Max Swing Over Bed: 28.7
Max Turning Cutting Length: 58.9
Probe Make Model: Renishaw OMM
Programmable Tailstock: false
Rapid Traverse: 1968
Second Bar Capacity: 3.5
Second Chuck Size: 12.0
Second Spindle Bore: 4.1
Second Spindle Motor: 40
Second Spindle Nose: A2-8
Second Spindle Speed: 2,500
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 4.1
Spindle Motor: 40
Spindle Nose: A2-8
Spindle Speed: 2500.0
Sub Spindle: true
Tailstock: false
Tool Positions: 240.0
Turret Options: Milling Spindle Taper Type: Capto C6
Twin Turret: false
X Travel: 29.5
Y Axis: true
Z Travel: 61.0
