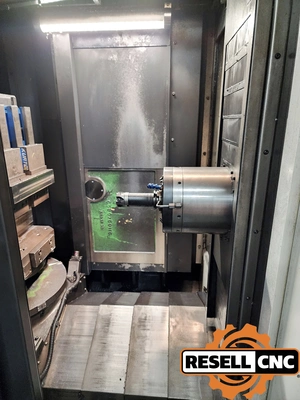

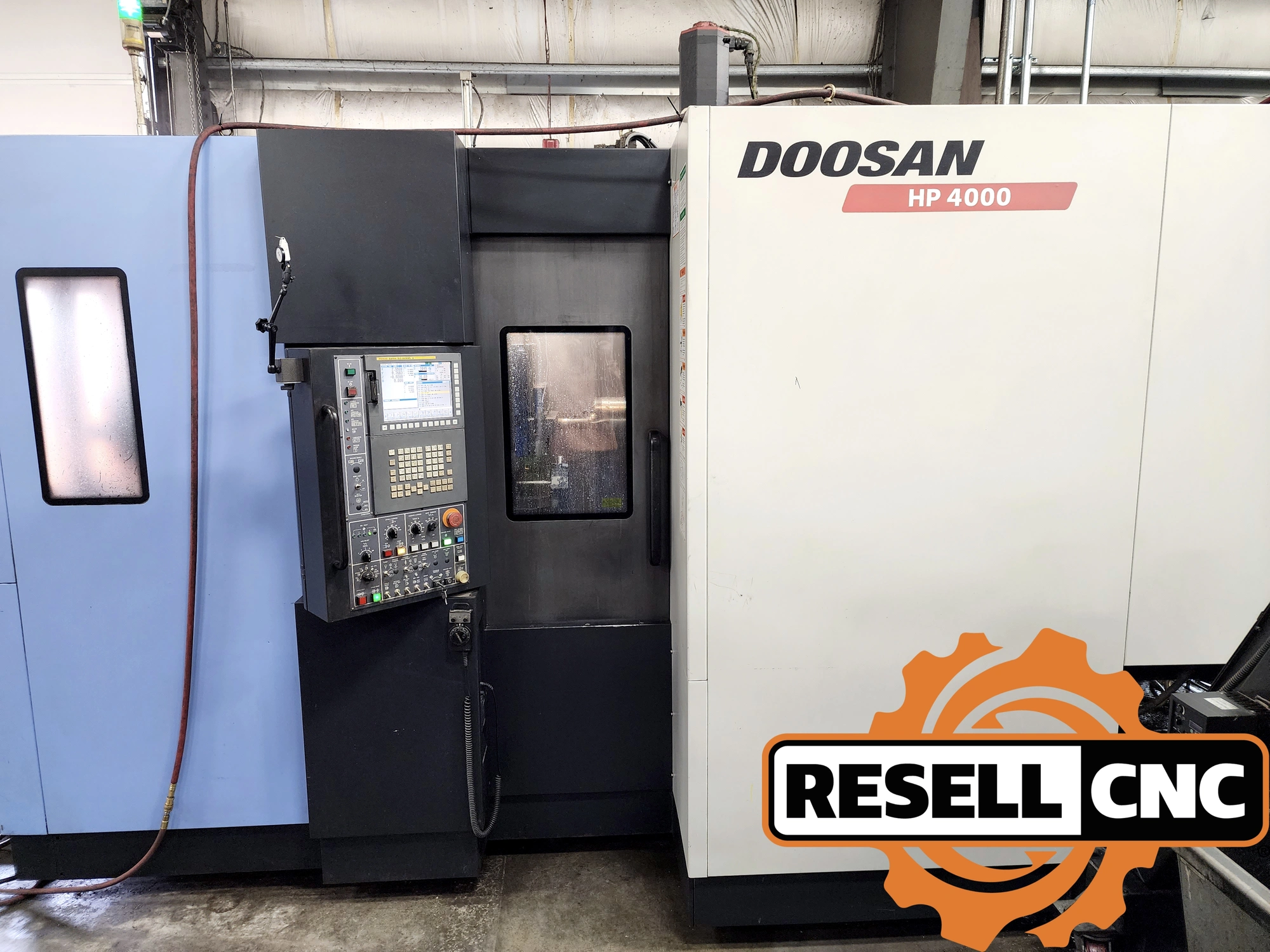

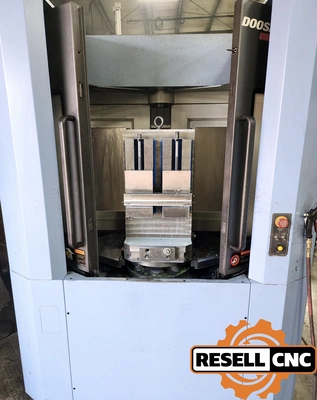

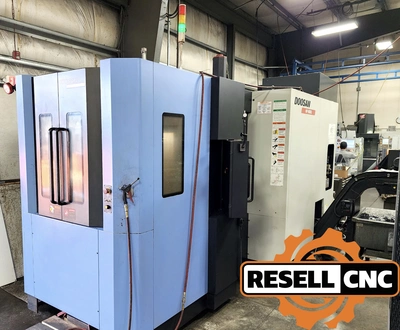

USED 2011 Doosan HP4000

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: LNS Turbo HB Chip Conveyor

Renishaw NC4 Laser Tool Setter

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

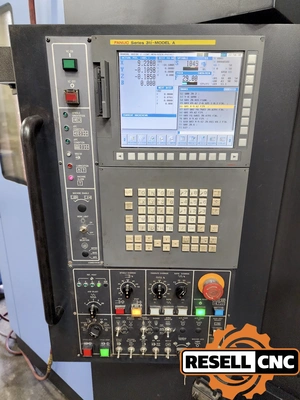

Control Make Model: Fanuc 31i-A CNC Control
Coolant Type S: High Pressure Thru-Spindle Coolant
Cutting Feed Rate: 1181

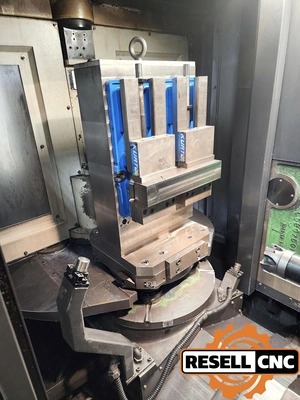

Horizontal Table Pallet Size In MM: 400.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Tool Parts Probe
Max Table Pallet Load: 882.0
Number Of Pallets: 2.0
Probe Make Model: Renishaw NC4
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Center To Table Top: 5.91-29.53
Spindle Motor: 35
Spindle Speed: 14000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Table Pallet Indexing: 1 Degree
Tailstock: false
Tool Magazine Capacity: 60.0
Twin Turret: false
X Travel: 23.62
Y Axis: false
Y Travel: 22.05
Z Travel: 23.62
