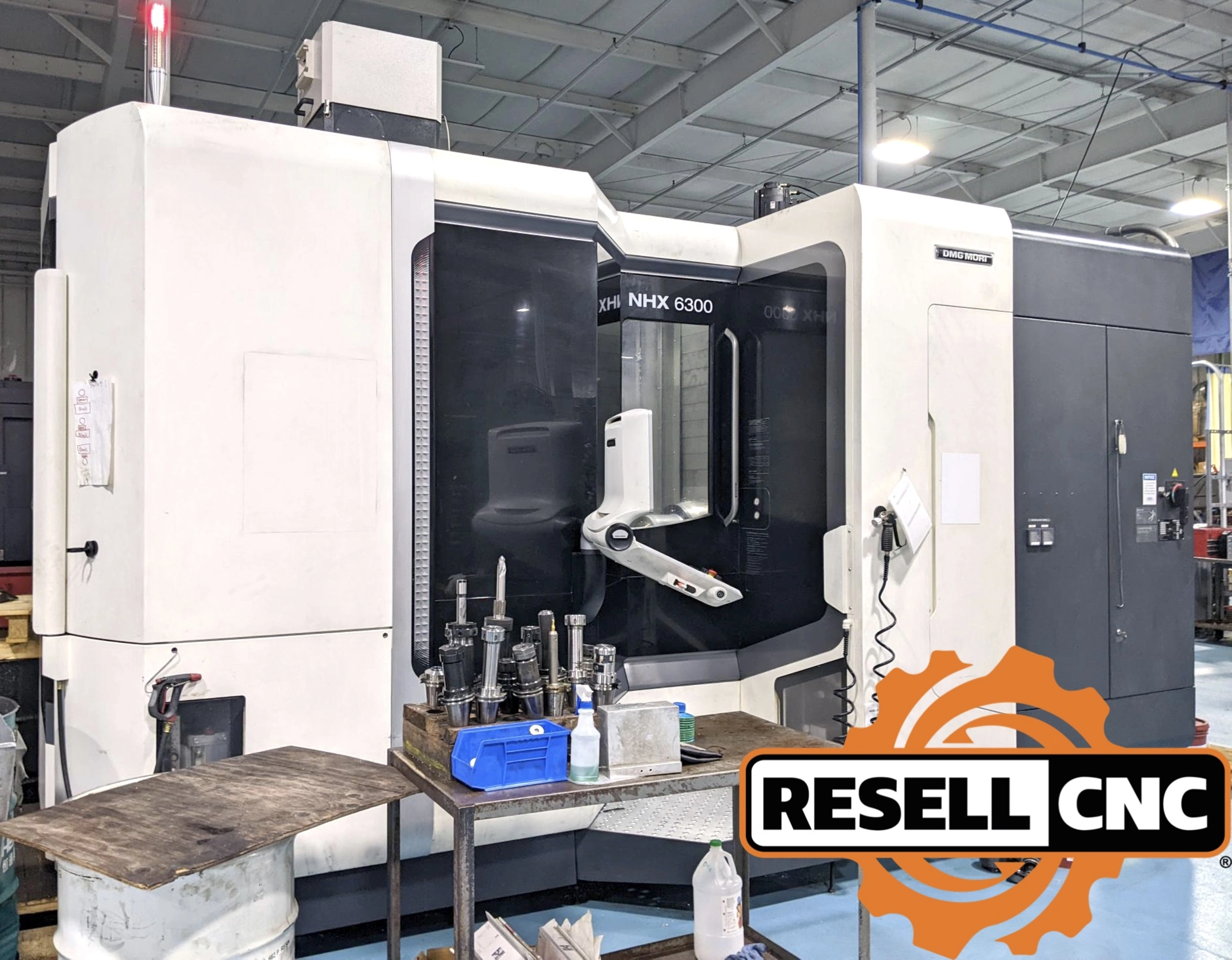

USED 2016 DMG Mori NHX6300

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: TMAC Hardware and Software: Adaptive Tool Monitoring System

Touch Screen Control Display

Additional Machine Specs: Rear Discharge, Drum Style Filter Chip Conveyor

ICS High Pressure Coolant System

In-Machine Measuring System (Table) Touch Sensor

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

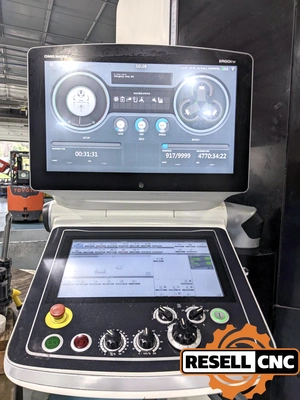

Control Make Model: Celos ERGOline CNC Control
Control Options: Color Monitor
Coolant Type S: High Pressure Coolant, Thru-Spindle Coolant Ready
Horizontal Table Pallet Size In MM: 630.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Mist Collector
Max Table Pallet Load: 3307.0
Number Of Pallets: 2.0
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Speed: 8000.0
Spindle Taper Type: CAT#50
Sub Spindle: false

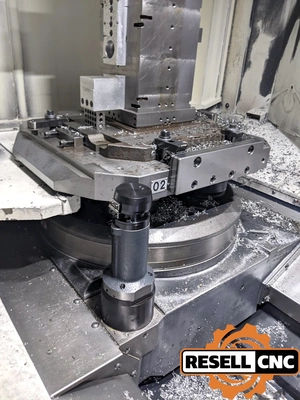

Table Pallet Indexing: Full 4th Axis (Continuous)
Tailstock: false

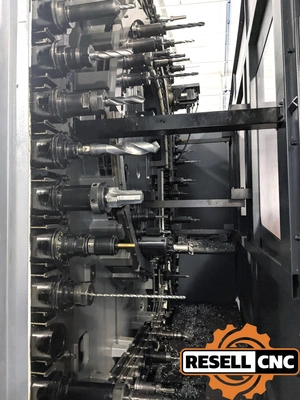

Tool Changer Type: Chain
Tool Magazine Capacity: 120.0
Twin Turret: false
X Travel: 41.3
Y Axis: false
Y Travel: 35.4
Z Travel: 40.6
