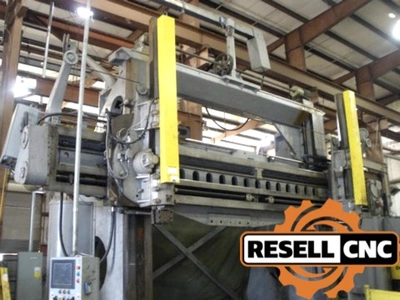

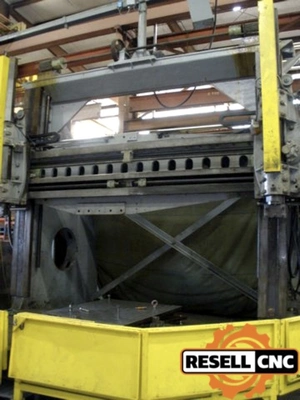

USED Niles A2-168

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

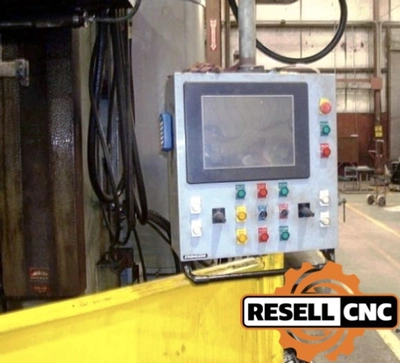

Additional Control Options: Updated Electrics with HMI Panel Interfaced to PLC Controls

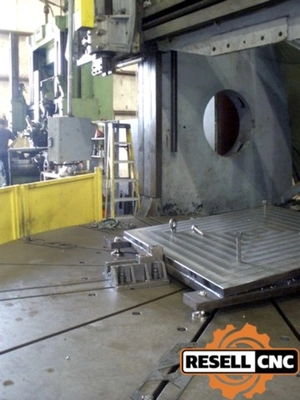

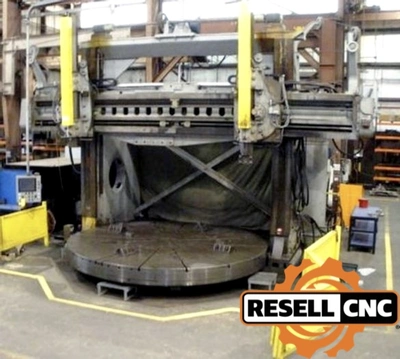

Additional Machine Specs: Table Diameter (4-Jaw): 168"

Max Swing: 234"

Height Under Rail: 108"

Speeds (Variable): 0 - 27 RPM

Ram Travel: 60"

Ram Swivel: 45°

Motor (280 VDC): 75 HP

Table Weight Capacity (Est.): 40 - 50 Tons



Equipped With:

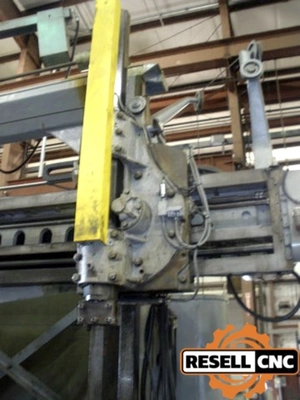

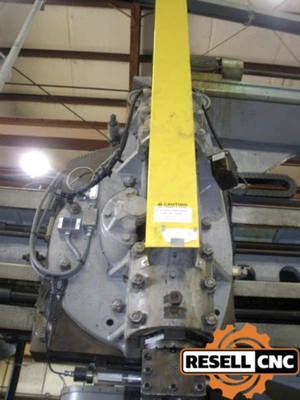

- (2) Rams on Rail

- Freestanding Hydraulic Unit

- Spare Chuck Jaws

B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
