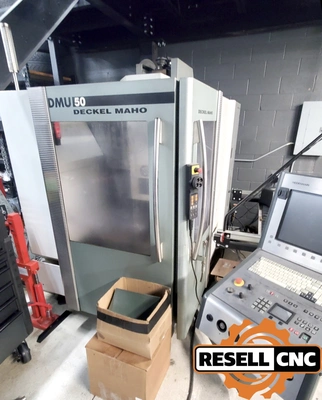

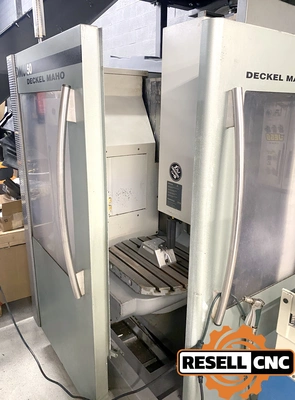

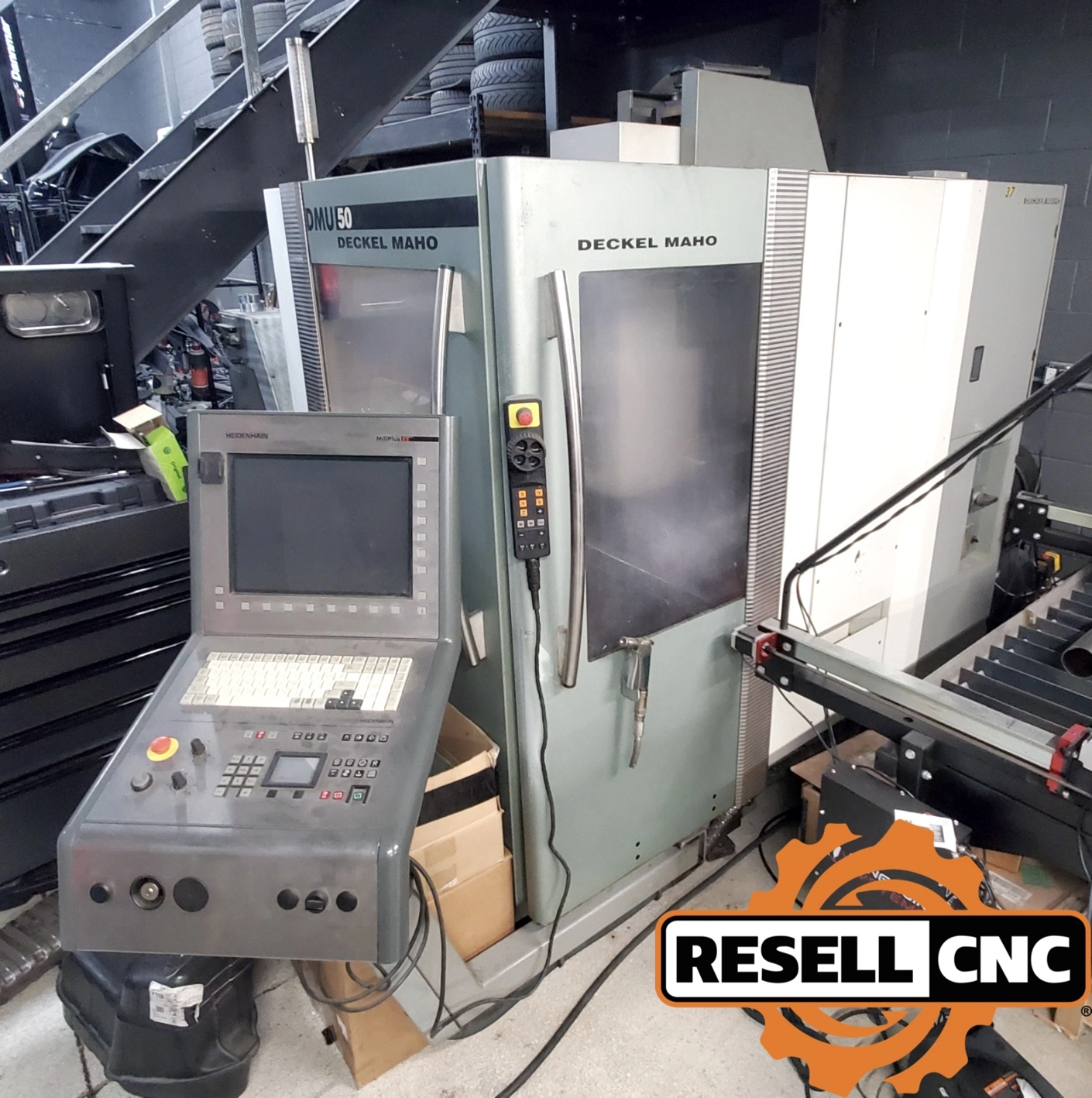

USED 2005 Deckel Maho DMU-50

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Travels:

- B-Axis: -5/+110°

- C-Axis: +/-360°

B Axis: false
C Axis: false

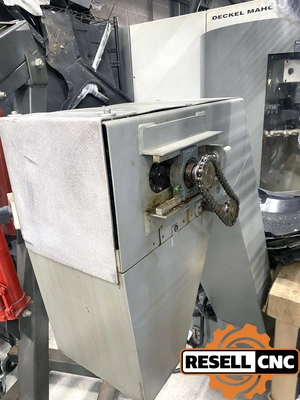

Chip Removal: Chip Conveyor

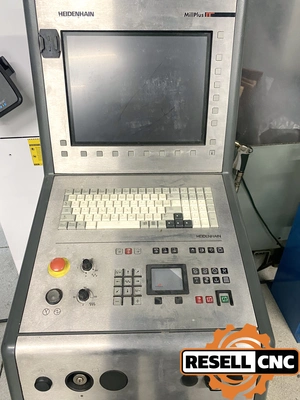

Control Make Model: Heidenhain MillPlus V521 CNC Control
Cutting Feed Rate: 787
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 440.0
Max Tool Diameter: 3.15
Max Tool Diameter Adjacent: 5.12
Max Tool Length: 11.4
Max Tool Weight: 13.2
Programmable Tailstock: false
Rapid Traverse: 1000
Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 7.5
Spindle Speed: 10000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Table Pallet Indexing: Full 4th Axis (Continuous)
Tailstock: false
Tool Changer Type: Side Mount
Tool Magazine Capacity: 16.0
Twin Turret: false
Vertical Table Pallet Size: 24.8" x 19.7
X Travel: 19.7
Y Axis: false
Y Travel: 17.7
Z Travel: 15.7
