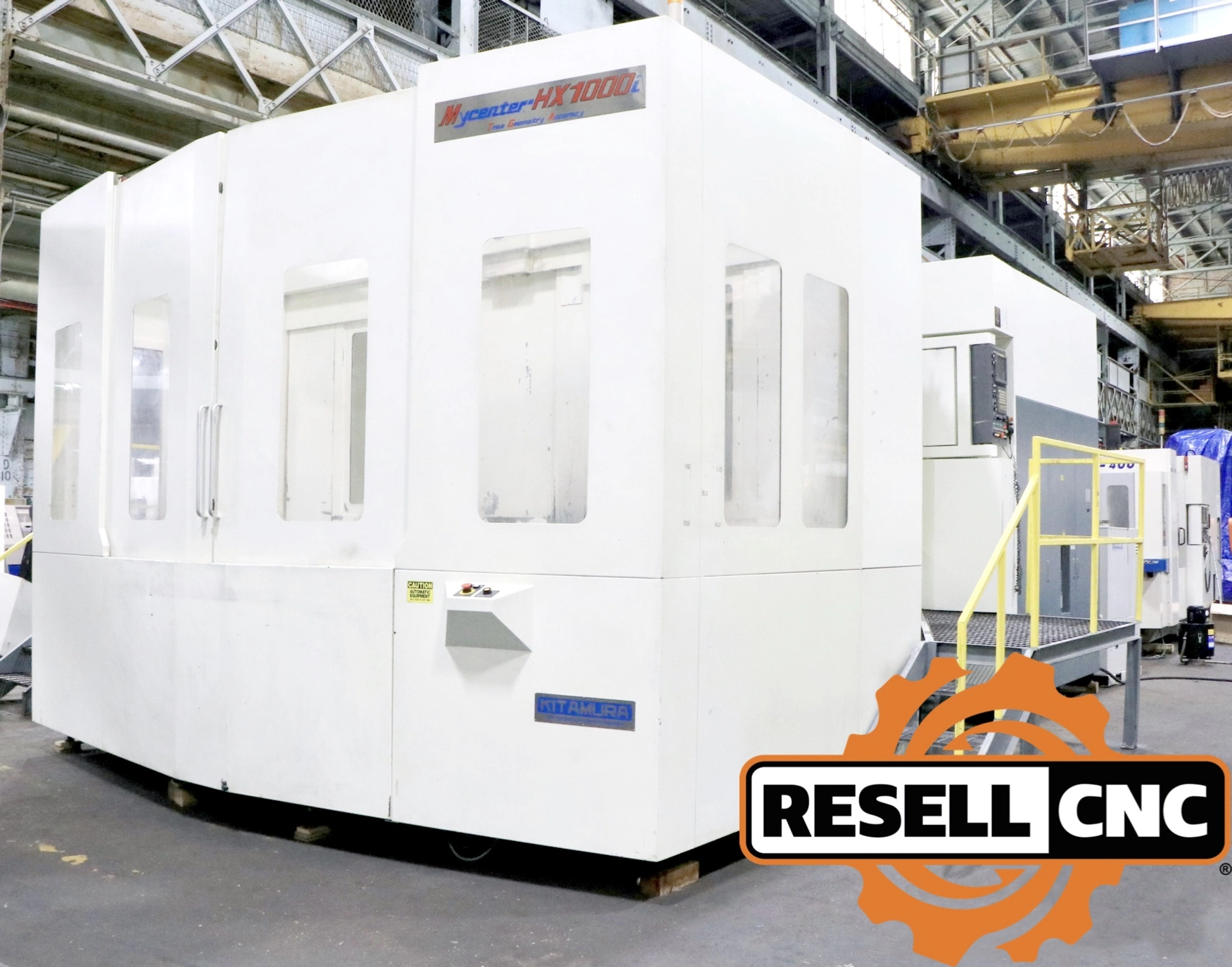

USED 2010 Kitamura MyCenter HX1000i

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: AI Nano High Precision Contour Control (500 Block Look Ahead)

Linear Scale Feedback (All Axes)

Program Restart

Additional Machine Specs: Torque: 897 ft-lbs

Cooljet High Pressure Coolant System

Full 4th Axis Pallet Contouring

Gearbox (4-Step, Gear Driven)

Box Way

Twin Ball Screws and Twin Servo Motors

Tool Retract and Recover

Approx. (70) BT50 Tool Holders

(2) Heavy Duty Fixed Custom Entry Platforms with Handrails

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Control Make Model: Fanuc 16i-MB CNC Control
Coolant Type S: High Pressure Thru-Spindle Coolant
Cutting Feed Rate: 1417
High Pressure Coolant Psi: 1000.0

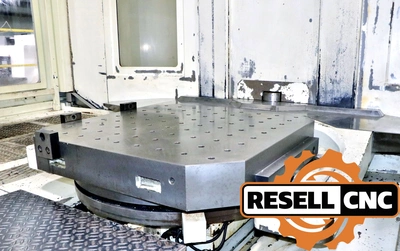

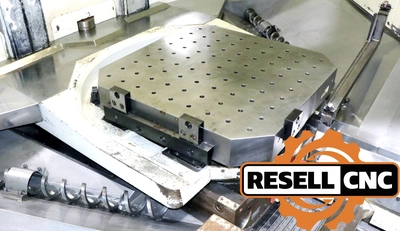

Horizontal Table Pallet Size In MM: 1000.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: All Available Tooling, Gear Box
Max Workpiece Weight: 6600.0
Number Of Pallets: 2.0
Probe Make Model: Renishaw Probing System
Programmable Tailstock: false
Rapid Traverse: 1417
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 40

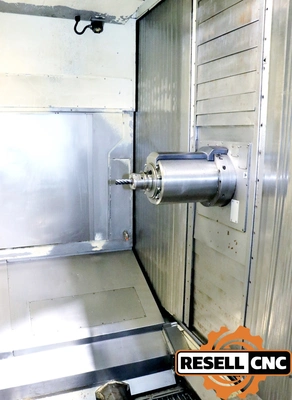

Spindle Speed: 8000.0
Spindle Taper Type: BT50
Sub Spindle: false
Table Pallet Indexing: Full 4th Axis (Continuous)
Tailstock: false

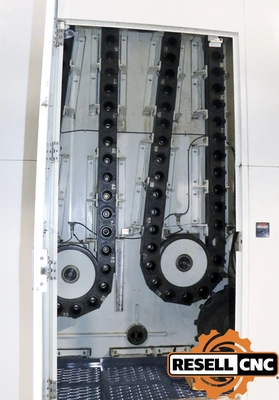

Tool Magazine Capacity: 150.0
Twin Turret: false
X Travel: 80.31
Y Axis: false
Y Travel: 51.97
Z Travel: 53.94
