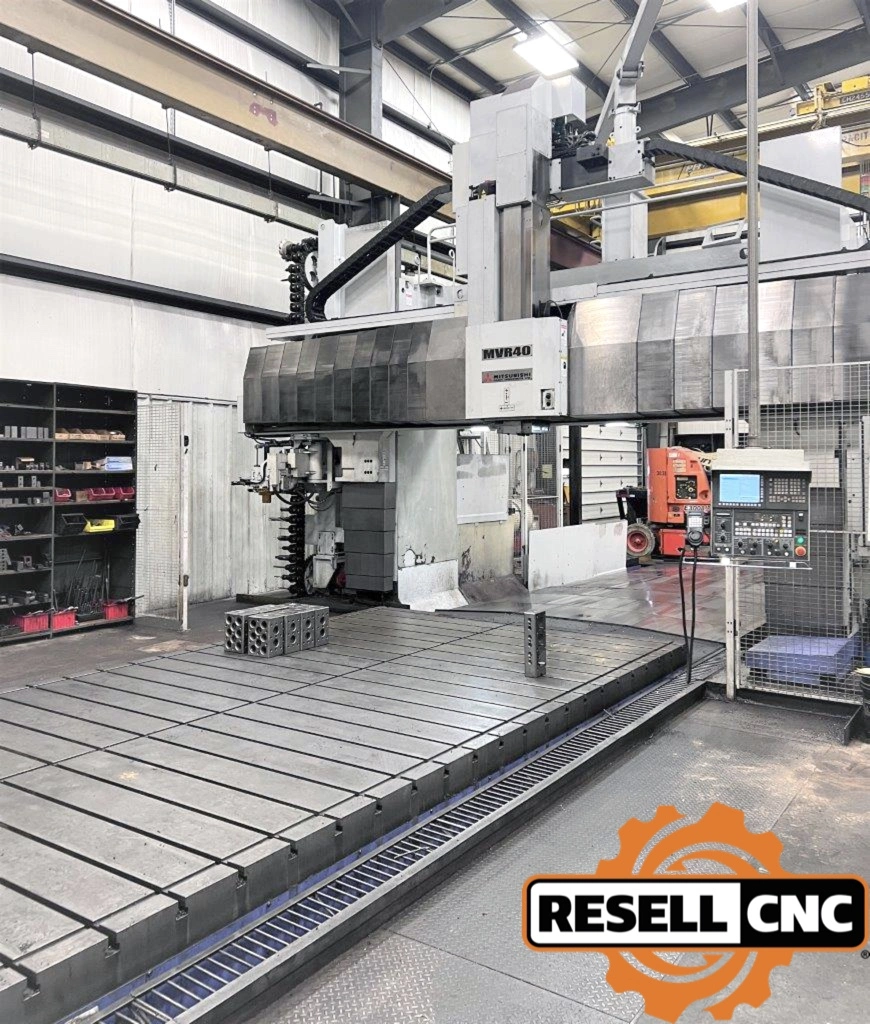

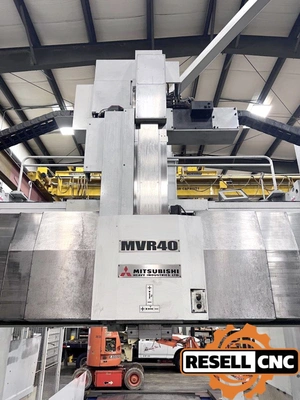

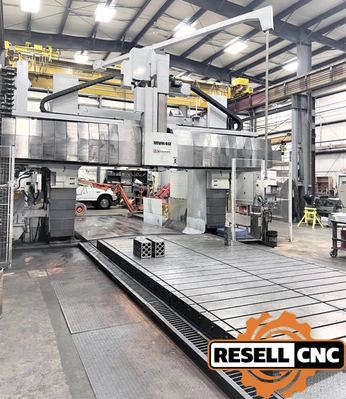

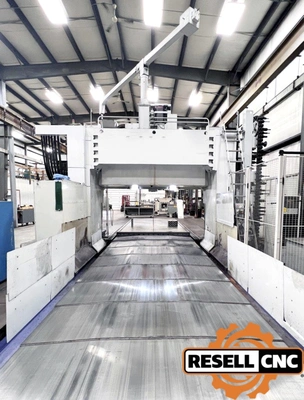

USED 2014 Mitsubishi MVR-40

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 5-Face Machining Software

Additional Machine Specs: Travels:

- W-Axis: 31.49"



Max. Height Under Spindle Nose: 84.6"

Distance Between Columns: 147.60"

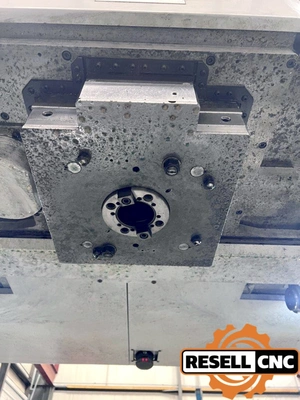

RAM Size: 13.7" x 13.7"

Spindle Diameter: 4.33"



Positioning Accuracy:

- X-Axis: +/- 0.0010 / 244.1"

- Y-Axis: +/- 0.0008 / 157.5"

- Z-Axis: +/- 0.0002 / 31.5"

- W-Axis: +/- 0.0003 / 43.3"



Head Change Station

Attachment Storage for Right Angle Head

MP Scales on X, Y, Z, and W Axes

Coolant/Air Through Spindle

Telescoping Way Covers

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

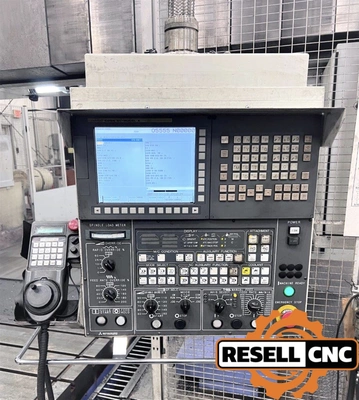

Control Make Model: Fanuc 31i-A CNC Control
Control Options: Rigid Tapping
Coolant Psi: 141.0
Coolant Type S: Thru-Spindle Coolant
Cutting Feed Rate: 393.7
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: All Available Manuals, Geared Head
Programmable Tailstock: false
Rapid Traverse: 590/866/393

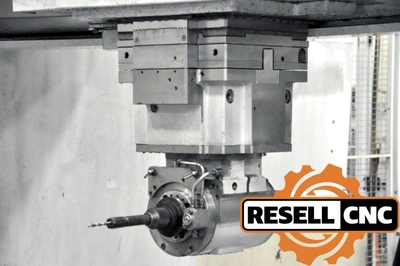

Rotary Make Model: Mitsubishi VHRH-30-35-35P-AC CNC Right Angle Head with 1° Indexing

Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 40
Spindle Nose To Table Top: 84.6
Spindle Speed: 4000.0
Spindle Taper Type: 50 Taper
Sub Spindle: false
Tailstock: false

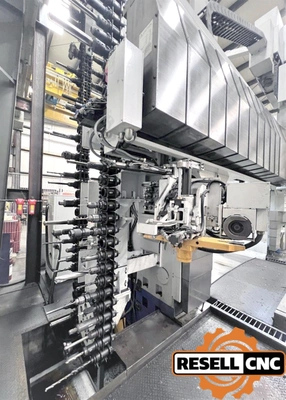

Tool Changer Type: Chain
Tool Magazine Capacity: 80.0
Twin Turret: false
Vertical Table Pallet Size: 236.22" x 118.11
X Travel: 244.1
Y Axis: false
Y Travel: 165.35
Z Travel: 27.55
