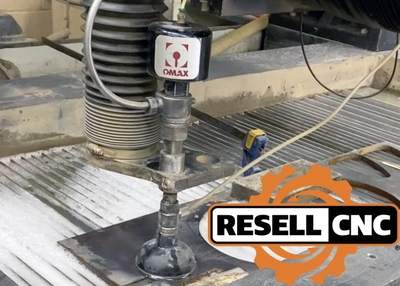

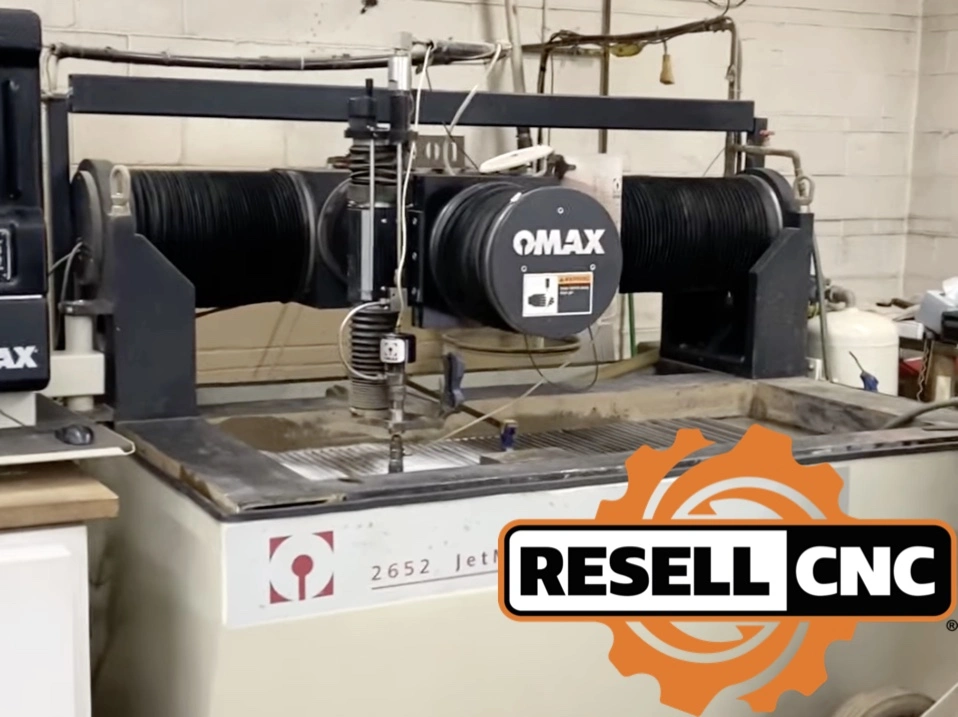

USED 2005 Omax 2652

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

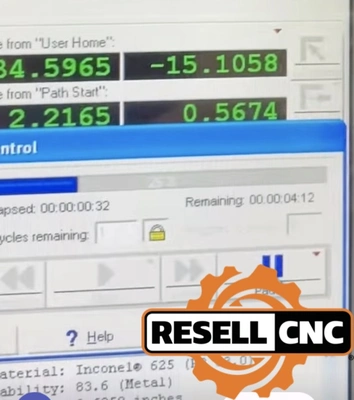

Additional Control Options: Windows Based CNC Control: Intelli-Max Premium Software

Additional Machine Specs: Cutting Envelope: 4' - 4" x 2' - 2"

Max. Table Load: 400 Lbs./Sq. Ft.

Support Slats: 4" x 0.125"

Travels Speed: 180 IPM

Accuracy:

- Linear Positional: +/-0.001"

- Repeatability: +/-0.001"

- Ballbar Circularity: +/-0.0025"

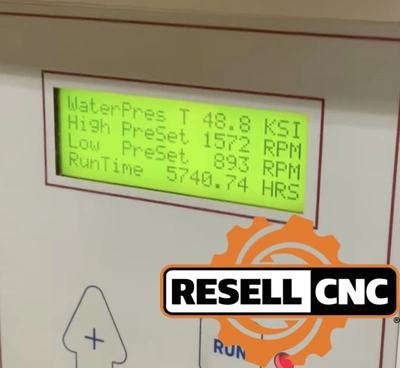

EnduroMAX Pump:

- Motor: 30 HP

- Output Pressure: 50,000 PSI

- Orifice: 0.013"

- Flow Rate: 1.2 GPM



EQUIPPED WITH:

EnduroMAX Pump Model P3050V

2000 lbs Abrasive Hopper

Stainless Steel Support Slats

Precision Optical Locator

Garnet Removal System:

- Dump Hopper

- Effluent Pump

Approx Weight And Dims Of Accessories: Weight of Machine Varies:

Full Tank: 9,150 lbs

Empty Tank: 3,320 lbs

B Axis: false
C Axis: false
Electrical: 380V - 480V/3PH/50Hz - 60 Hz
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 400.0
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Vertical Table Pallet Size: 69" x 30
Waterjet Psi: 50000.0
X Travel: 52.0
Y Axis: false
Y Travel: 26.0
Z Travel: 8.0
