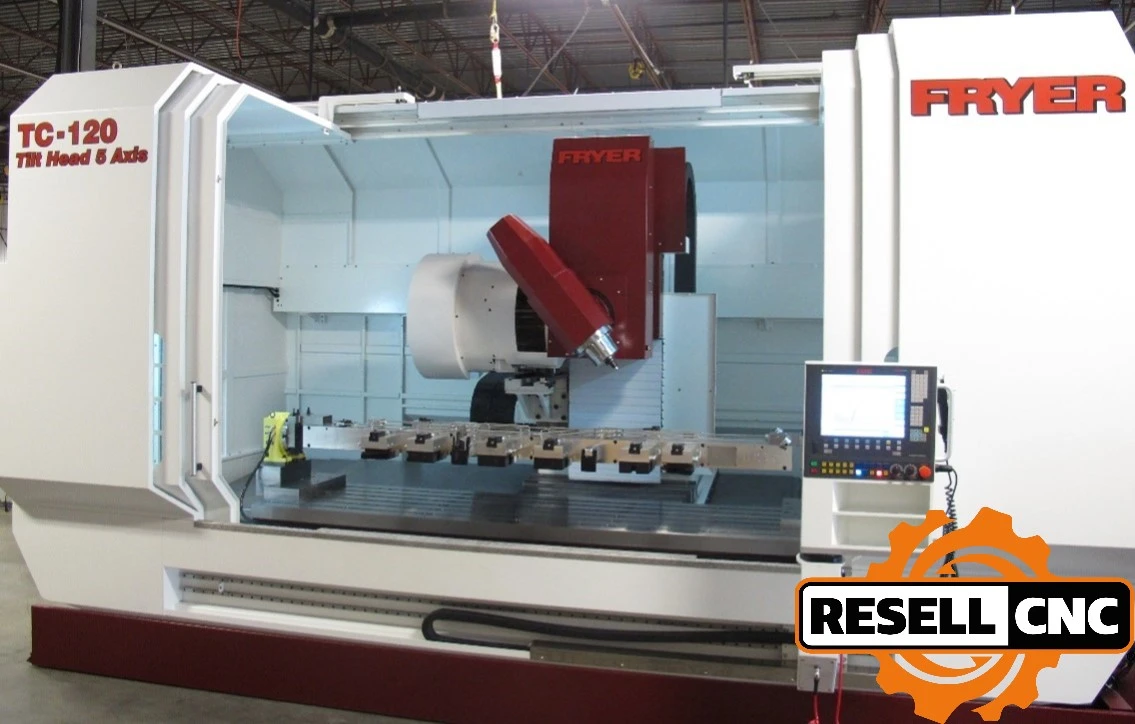

USED 2019 Fryer TC-120v

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 15" Touch Screen High Resolution Monitor

3 MB Part Program Storage

Full 5 Axis Contouring

Additional Machine Specs: Travels:

- B-Axis: +/- 100°

- A-Axis: +/- 360°



Way Type: Roller Linear

T-Slots (No./Width): 6 / 0.787”

Table Top to Floor: 38”

Spindle Torque: 85 ft/lbs @ 850 RPM

Spindle Center to Column: 32”

Positioning Accuracy: +/- 0.0002”

Positioning Repeatability: +/-0.0001”

X Axis Drive Type: Ballscrew

Servo Type: AC Digital Brushless

Axis Thrust (Peak): 4,955 lbs. X, Y, Z

Air Pressure Requirements: 90 PSI - 5 CFM

Coolant Capacity: 150 Gallons

Coolant Flow: 5 GPM



Full Machine Guard

Tilting Spindle

Extended Y-Axis Travel

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chip To Chip Time: 10.0
Control Make Model: Siemens 840D SL CNC Control
Control Options: Color Monitor, Coordinate Rotation and Scaling, Early Power Failure Detection, Rigid Tapping, USB, Macros
Coolant Psi: 350.0
Coolant Type S: Flood Coolant
Cutting Feed Rate: 900
Electrical: 80 AMP 400 - 500 VAC 3 PHASE
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Auto Door, High Intensity Lighting
Max Table Pallet Load: 10000.0
Max Tool Diameter: 3.2
Max Tool Diameter Adjacent: 5.5
Max Tool Length: 12.0
Max Tool Weight: 15.4
Programmable Tailstock: false
Rapid Traverse: 1200
Rotary Make Model: 10" Nikken High Accuracy Rotary Table w/Heavy Duty Tailstock and Brake
Rotary Table Trunnion: 5th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 40
Spindle Nose To Table Top: 6-34
Spindle Speed: 18000.0
Spindle Taper Other: Big Plus Type Spindle
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Arm
Tool Change Time: 3.0
Tool Magazine Capacity: 24.0
Twin Turret: false
Vertical Table Pallet Size: 120" x 32
X Travel: 120.0
Y Axis: false
Y Travel: 32.0
Z Travel: 28.0
