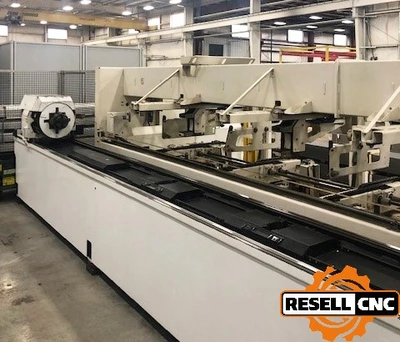

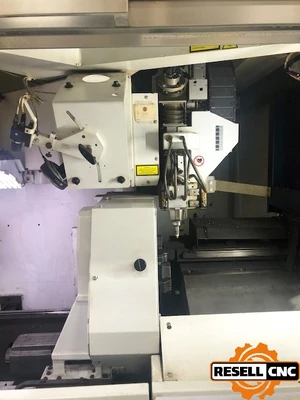

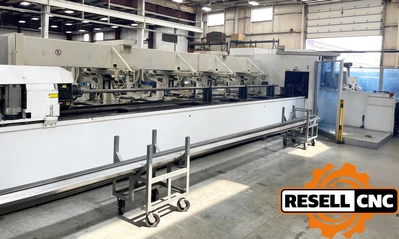

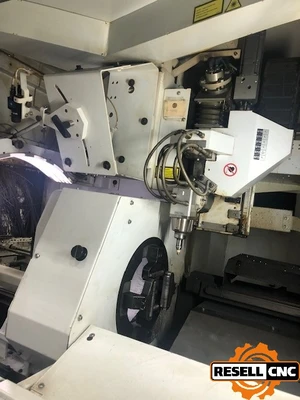

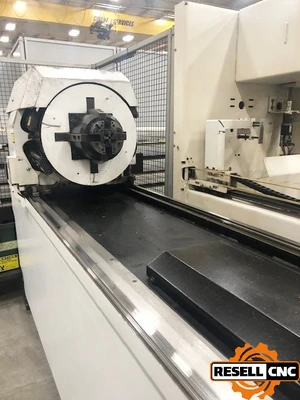

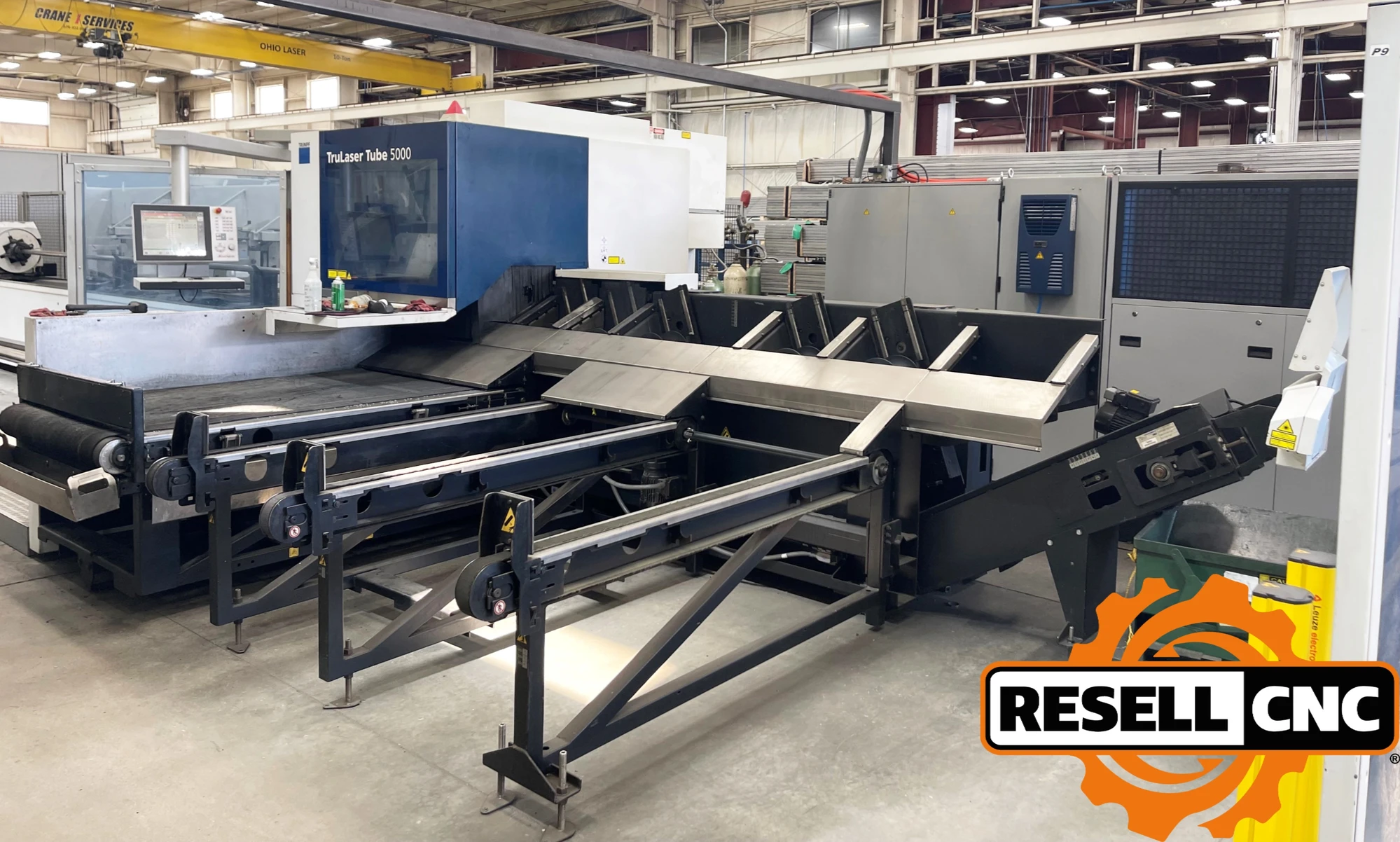

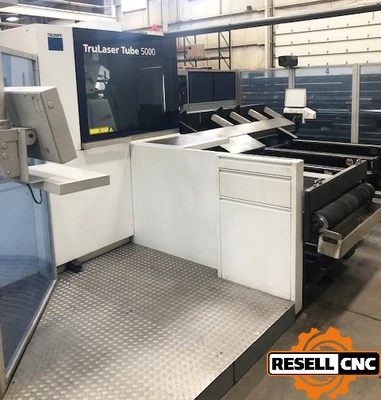

USED 2015 Trumpf TruLaser Tube 5000

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Round Tube:

Max. Outside Diameter: 6.69" (170mm)



Rectangular Profile:

Max. Side Length and Outer Circle Diameter: 5.98" / 6.69" (152mm / 170mm)

Max. Side Length and Outer Circle Diameter: 7.09" / 7.09" (180mm / 180mm)



Max. Raw Material Length for Automatic Loading:

Loadmaster Tube 6.5 M: 255.91" (6500mm)



Finished Part Length:

For Unloading Unit 3 M: 118.11" (3000mm)

For Unloading Unit 3 M + 1.5 M: 177.17" (4500mm)



Workpiece Weight:

Max. Path Weight: 55.12 lbs (25 kg/m)



Max. Raw Material Weight with Automatic Loading:

For Loadmaster Tube 6.5 M: 358.25 lbs (162.5 kg)



Laser-Specific Data - Trudisk 3001:

Max. Laser Power: 3000W

Max. Material Thickness:

- Mild Steel: 0.315" (8mm)

- Stainless Steel: 0.197" (5mm)

- Aluminum: 0.236" (6mm)

- Copper: 0.157" (4mm)

- Brass: 0.157" (4mm)



Consumption Values - Trudisk 3001:

Average Power Input In Production: 9 kW



Laser Capacity: 3200W

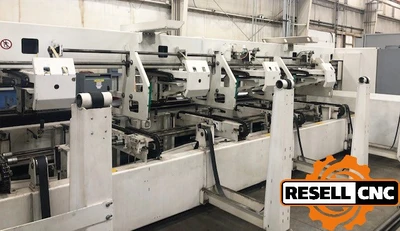

LoadMaster 6.5 M Bundle Magazine:

- 6.5 M Loading / 3 M Unload + 1.5 M Extension

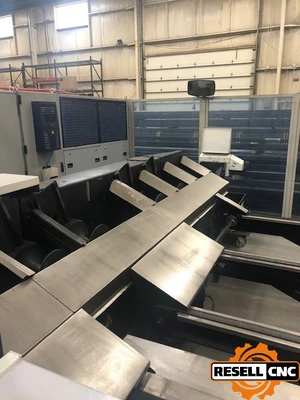

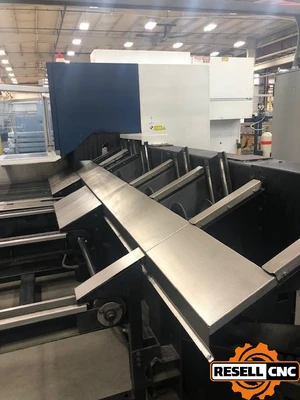

Conveyor Table with Table Extension

Seam Detection

Compressed-Air Cutting

Dust Collector

B Axis: false
C Axis: false
Control Make Model: Seimens 840D CNC Control
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Watts: 3200.0
Y Axis: false
