USED 2009 L&L LC34

X2nd Chuck Description: 4-Jaw 24" OD x 10.5" ID

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Center Height: 17.3”

Width of Carriage: 35”

Width of Bed: 22"

12" and 18" Steady Rests

Coolant

Front Chip Pan

Front Door and Rear Splash Guards

Bar Capacity: 10.0
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

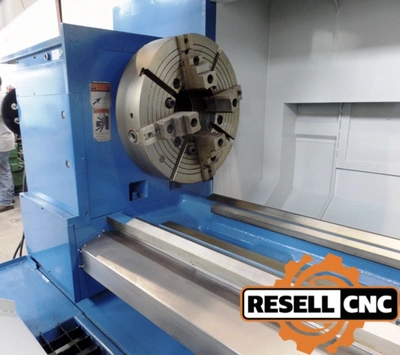

Chuck Description: 4-Jaw 24" OD x 10.5" ID

Chuck Size: 24.0

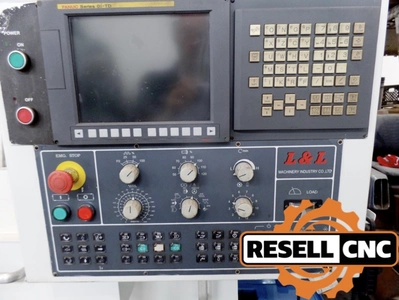

Control Make Model: Fanuc Oi-TC CNC Control
Distance Between Centers: 124.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Splash Guards
Max Swing Over Bed: 34.0
Max Swing Over Cross Slide: 20.0
Programmable Tailstock: false
Second Chuck Size: 24.0
Single Turret: true
Single Turret Live Tooling: false
Spindle Bore: 10.0
Spindle Motor: 37
Spindle Nose: A2-20
Spindle Speed: 400.0
Steadyrest Capacity: 18.0
Steadyrest Type: Manual
Sub Spindle: true
Tailstock: true
Tailstock Quill Diameter: 6.4
Tailstock Taper: MT #5
Tool Positions: 4.0
Twin Turret: false
X Travel: 20.0
Y Axis: false
Z Travel: 157.0
