X2nd Turret Live Tooling: false
X2nd Turret Positions: 8
X4th Axis: false
X5th Axis: false
Additional Control Options: Conventional Two-Axis Programming Steps + Language
Control Makes Conversions for Lower Turret
P-Codes
Additional Machine Specs: (2) Bison 4-Jaw w/ 12.5" Bore
Follow Rest on Lower Turret
Feed Rates: 39.37 RPM
Bar Capacity: 10.23
B Axis: false
C Axis: false

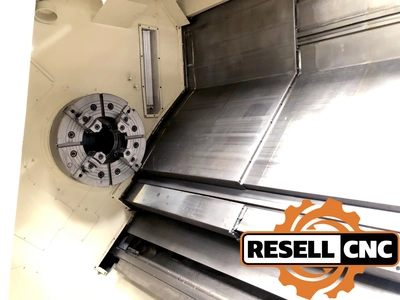

Chuck Description: (2) Bison 4-Jaw with 12.5" Bore
Chuck Size: 24.0
Chuck Type: Manual

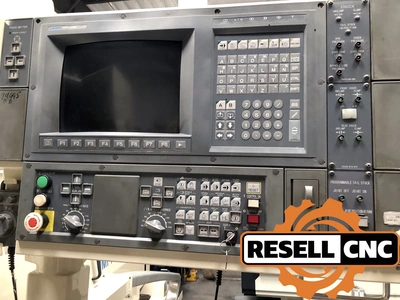

Control Make Model: OSP-U100L CNC Control
Distance Between Centers: 121.0
Electrical: 220/480/3/60
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Swing Over Bed: 33.0
Max Turning Cutting Length: 120.0
Programmable Tailstock: false
Rapid Traverse: 393/196
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 10.23
Spindle Motor: 60
Spindle Nose: A2-20
Spindle Speed: 900.0
Steadyrest Type: Manual
Sub Spindle: false
Tailstock: true
Tailstock Quill Diameter: 5.12
Tailstock Taper: MT No. 5
Tool Positions: 10.0
Total Spindles: 1
Twin Turret: true
X Travel: 26.0
Y Axis: false
Z Travel: 120.0
