USED 2007 Dehoff 31020RT-BTA

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Drill Capacity: 3" (Steel)

No. of Drill Heads: 1

No. of Spindles: 1

Drill Head Stroke: 120"

Feed Rate: 0.1 IPM - 30 IPM

Rapid Retraction of Drill Head: 150 IPM



Part Diameter: 5" - 16"

Max. Part Length: 120"

Max. Part Weight: 6750 Lbs

Spindle Centerline Parallel to Slide Ways: 0.0005 in / ft

Face of Pressure Head Perpendicular to Spindle: 0.0005"

Spindle Runout: 0.0002"

B Axis: false
C Axis: false

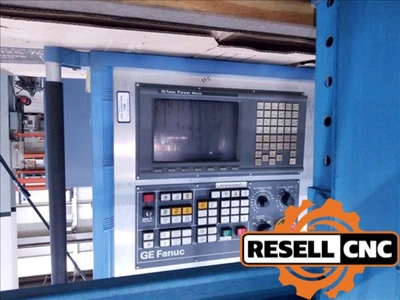

Control Make Model: GE Fanuc Power Mate
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Speed: 2000.0
Sub Spindle: false
Tailstock: false
Tool Room Equipment: Gun Drills
Twin Turret: false
Y Axis: false
