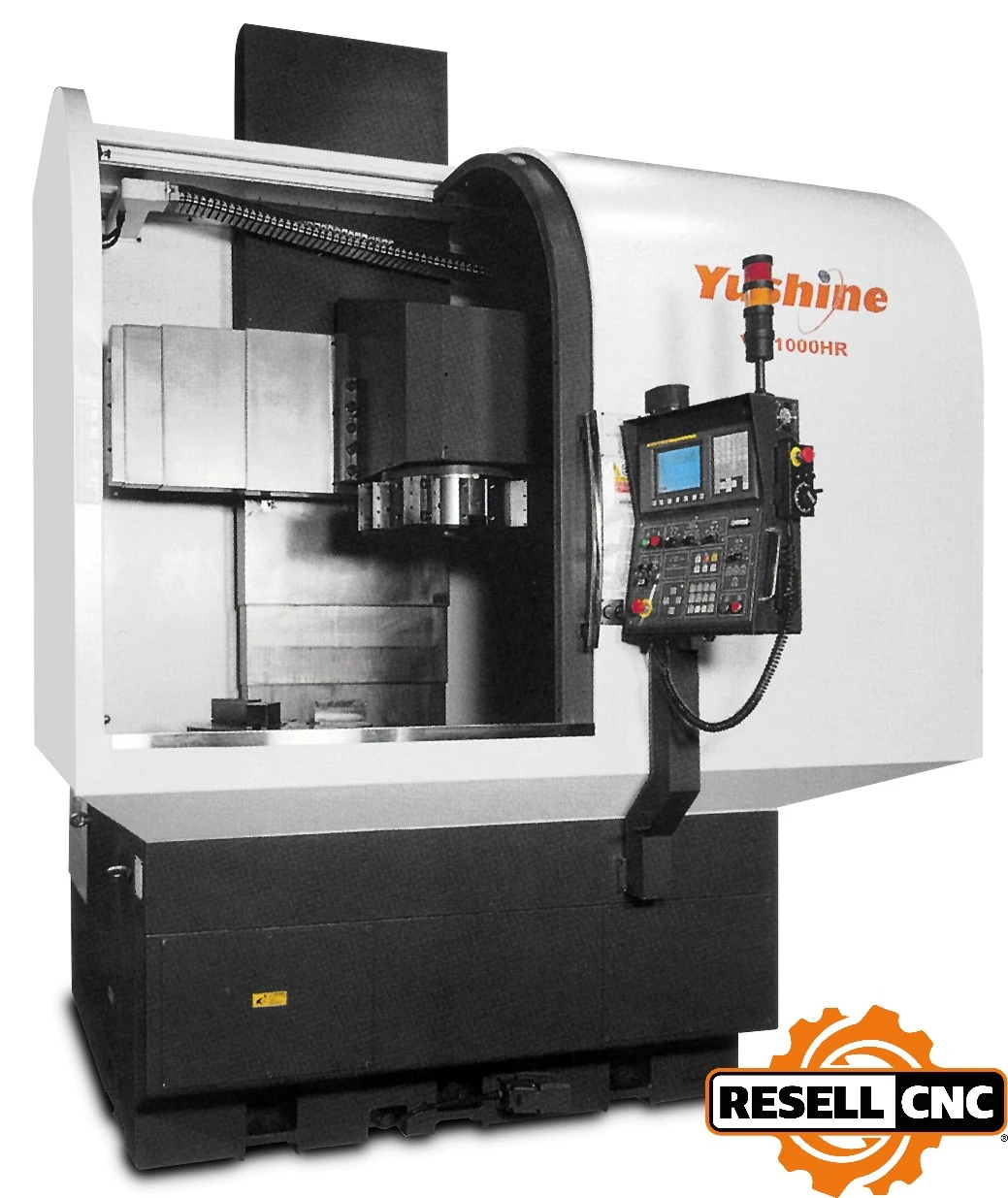

USED 2012 Yu-Shine VL-1000 HR

X2nd Turret Live Tooling: false
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: false
Additional Control Options: Absolute Positioning Encoders

AC Digital Servo and Spindle Drives

8.4" LCD Monitor with Dynamic Graphics

Macro B and Skip Function

1,024 Meter Memory and PCMCIA Slot

Additional Machine Specs: SPINDLE:

- Spindle Bearing Diameter: 8.66"



TRAVEL:

- X-Axis Ballscrew Diameter: 1.57"

- X-Axis Motor: 5.4 HP

- Z-Axis Ballscrew Diameter: 2.0"

- Z-Axis Motor: 9.5 HP



TURRET:

- Tool O.D. 3 Holders: 1.25"

- Tool I.D. 3 Holders: 2.0"

- Tool Sleeves: 0.75"/1"/1.25"/1.5"



Oil Mist Filter

High Pressure Pump (285 PSI)

Lift Up Style Chip Conveyor

Z-Axis Counter Weight with Double Screws

Precision Hardened and Ground Ballscrews

Box Way Construction

Heat Exchanger for Electrical Cabinet

Auto Lubrication System

Air Gun

Paper Filter of Coolant Water (30u-25u)

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chuck Description: Kitagawa Chuck

Chuck Size: 32.0
Control Make Model: Fanuc Oi-TD CNC Control
Control Options: RS-232, Macros
Coolant Type S: No Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Auto Door, Coolant Filter, Oil Filtration System
Max Cutting Turning Diameter: 39.3
Max Swing Over Bed: 47.2
Max Turning Cutting Length: 29.5
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 60
Spindle Nose: A2-15
Spindle Speed: 1000.0
Sub Spindle: false
Tailstock: false
Twin Turret: false
X Travel: 27.5
Y Axis: false
Z Travel: 31.4
