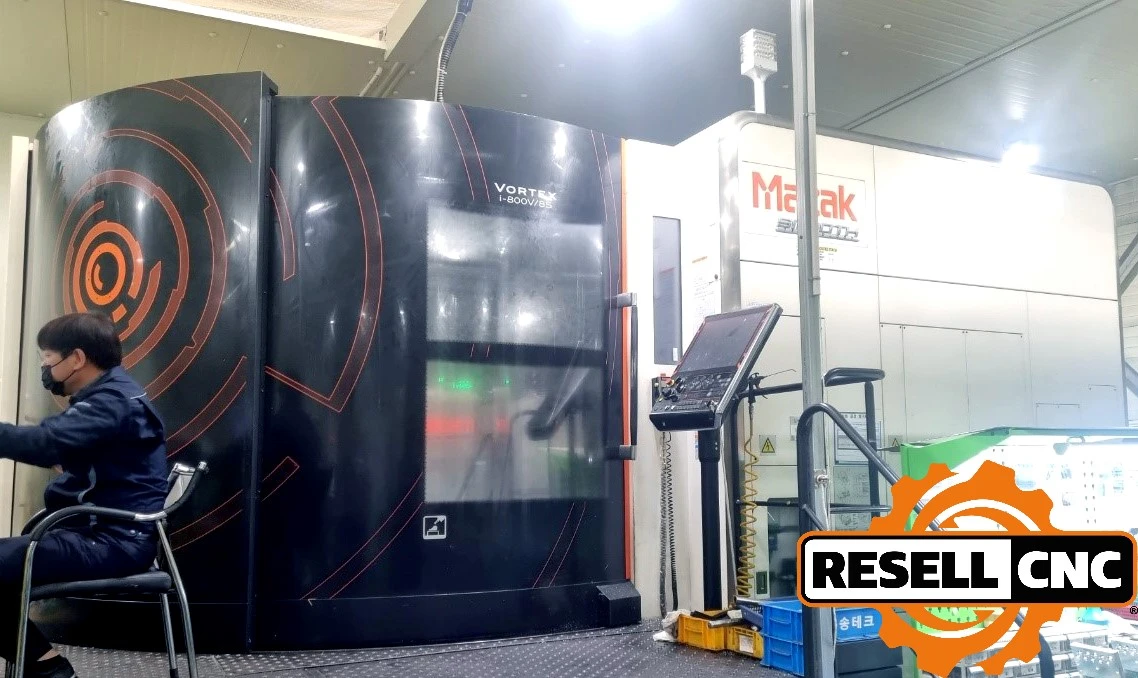

USED 2016 Mazak Vortex i-800/8S

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Laser Mill Tool Measure (NC4/Full w/o Soft)

Scale Feedback System for X, Y, Z Axis

5-Axis Machining Package

Tool Radius Compensation

Slope Constant

Cylindrical & Polar Coordinate (EIA)

Tool Length Comp in Tool Axis Direction

Hobbing Function w/o Tooling

Additional Machine Specs: Distance Between Head and Table Center: -0.39 - 66.5"

Distance Between Head and Table Top: -9.84 - 35.4"

Milling Spindle (30 min. Rating): 14.17" x 25.6" x 66.14 lbs



39.4" Solocation Bore Tap Pallet

Workpiece Air Blast

Coolant Temperature Control System

High Pressure Coolant Thre System

Prep. Mist Collect Dia 148 Duct

3-Color Signal Tower

Large Swing Type Chip Bucket

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

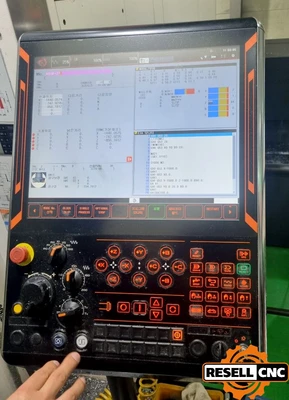

Control Make Model: Mazatrol CNC Control
Control Options: Synchronized Tapping
Coolant Type S: High Pressure Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Worklight
Max Table Pallet Load: 5512.0
Programmable Tailstock: false
Rapid Traverse: 2047
Rotary Table Trunnion: 5th Axis, 4th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Speed: 10000.0
Spindle Taper Type: BT50
Sub Spindle: false
Tailstock: false
Tool Changer Type: Chain
Tool Magazine Capacity: 43.0
Twin Turret: false
Vertical Table Pallet Size: 39.4" x 39.4
X Travel: 66.93
Y Axis: false
Y Travel: 59.06
Z Travel: 45.28
