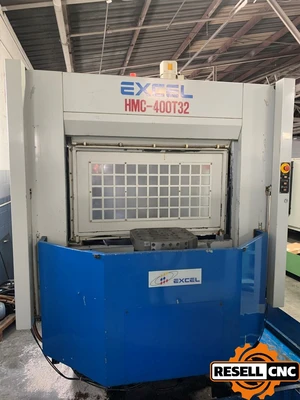

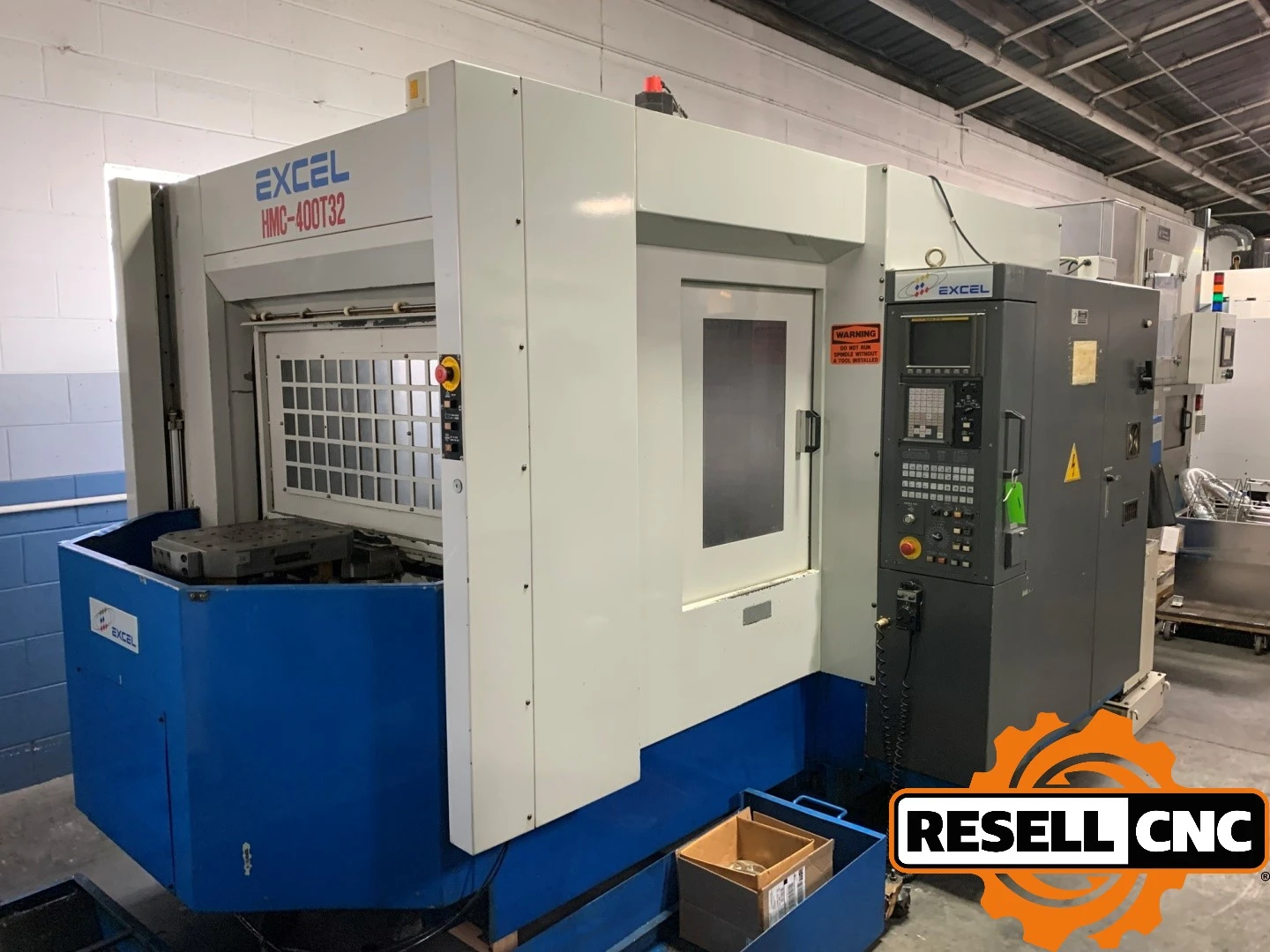

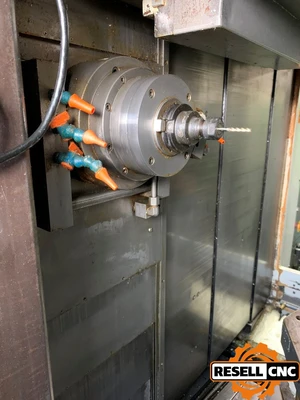

USED 1998 Excel HMC-400T32

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Spindle Speed Command: Direct 5 Digit S Command

Tool Selection System: Random Memory/Bi-Direction

Additional Machine Specs: Table Top Surface to Spindle Center Nose Distance: 1.97" - 19.7"

Air Pressure: 71.1 PSI

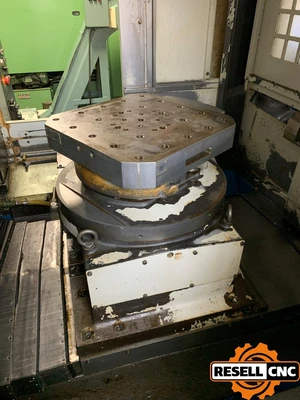

Full B-Axis

Coolant Pan w/ 4-Pump High Volume Coolant

Approx Weight And Dims Of Accessories: Coolant Pan: 104" x 101" x 12"; 300 lbs

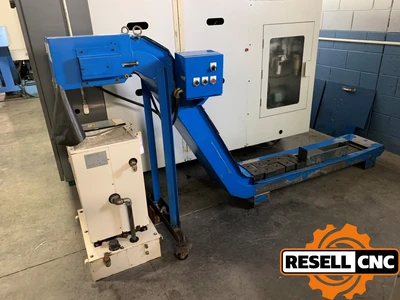

Chip Conveyor: 110" x 17" x 55"; 700 lbs
Spindle Chiller: 23" x 19" x 32"; 200 lbs
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

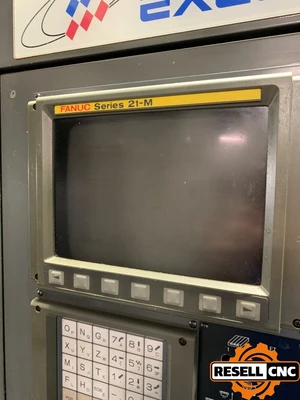

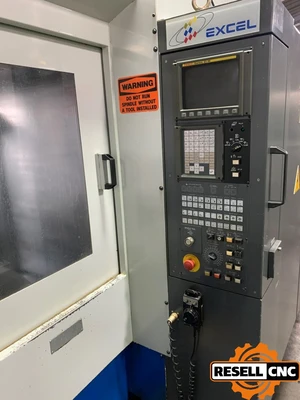

Control Make Model: Fanuc Series 21-M CNC Control
Cutting Feed Rate: 314.96
Horizontal Table Pallet Size In MM: 400.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: All Available Manuals, Transformer
Max Table Pallet Load: 880.0
Max Tool Diameter: 3.74
Max Tool Length: 12.59
Max Tool Weight: 17.6
Number Of Pallets: 2.0
Programmable Tailstock: false
Rapid Traverse: 1259.8
Single Turret: false
Single Turret Live Tooling: false
Spindle Center To Table Top: 5.91-25.98
Spindle Motor: 20
Spindle Speed: 12000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Table Pallet Indexing: 0.001
Tailstock: false
Tool Change Time: 2.0
Tool Magazine Capacity: 32.1
Twin Turret: false
X Travel: 24.0
Y Axis: false
Y Travel: 17.7
Z Travel: 20.0
