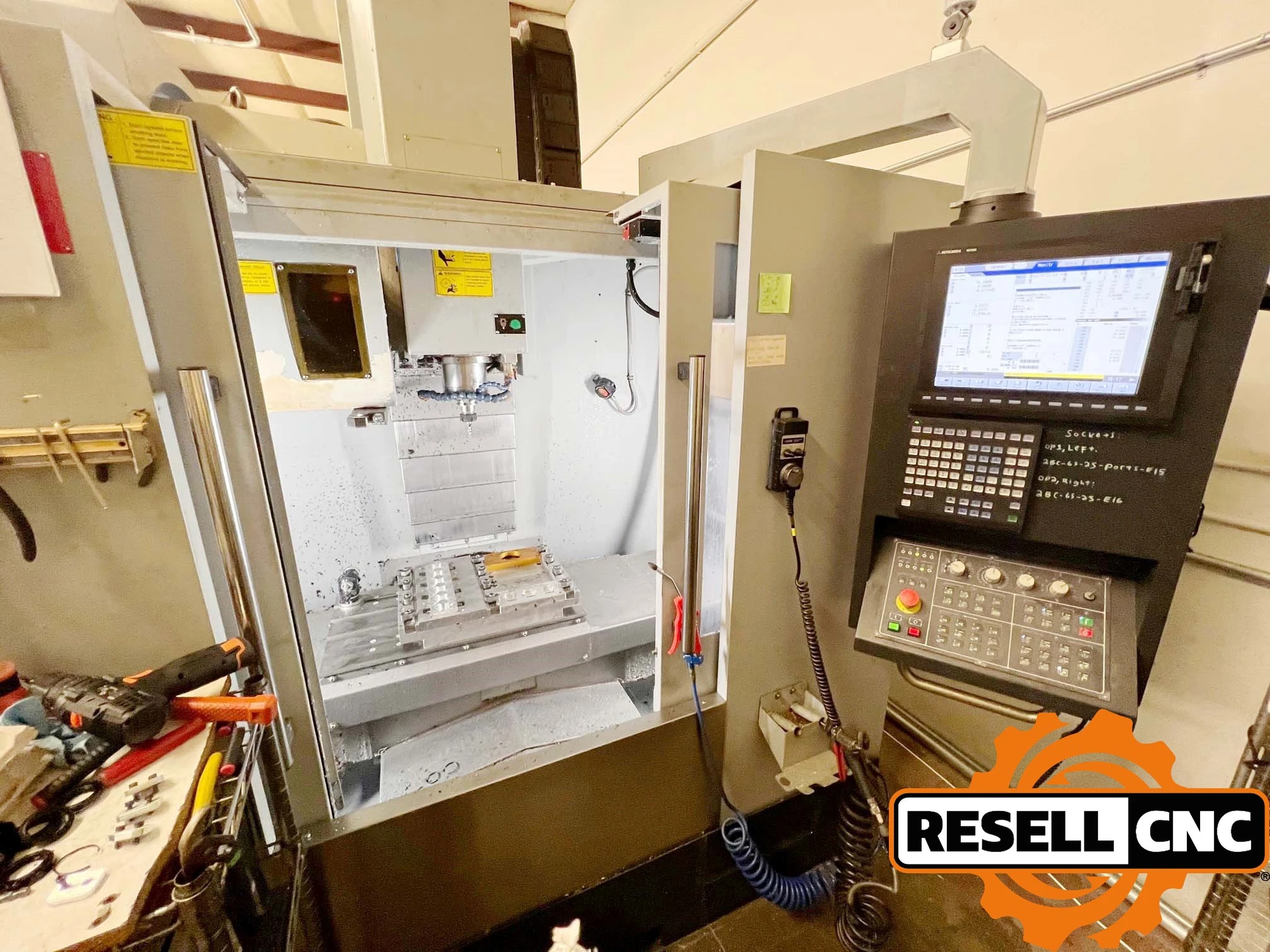

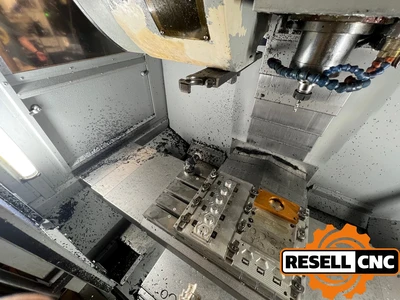

USED 2015 Ganesh VFM-2416

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Approx Weight And Dims Of Accessories: Chip Conveyor: 44"

B Axis: false
C Axis: false
Chip Removal: Chip Conveyor

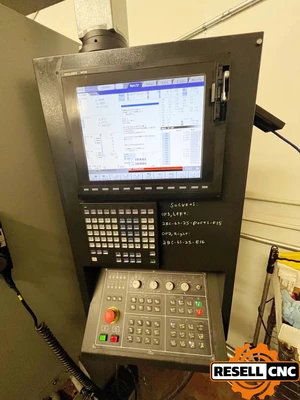

Control Make Model: Mitsubishi M700 CNC Control
Control Options: High Speed Machining
Coolant Psi: 300.0
Coolant Type S: Thru-Spindle Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 882.0
Max Tool Diameter: 5.9
Max Tool Diameter Adjacent: 3.15
Max Tool Length: 11.81
Max Tool Weight: 15.0
Programmable Tailstock: false
Rotary Table Trunnion: 4th Axis
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 15
Spindle Nose To Table Top: 5.11
Spindle Speed: 12000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Side Mount
Tool Magazine Capacity: 24.0
Twin Turret: false
Vertical Table Pallet Size: 25.59" x 15.75
X Travel: 24.01
Y Axis: false
Y Travel: 15.75
Z Travel: 17.72
