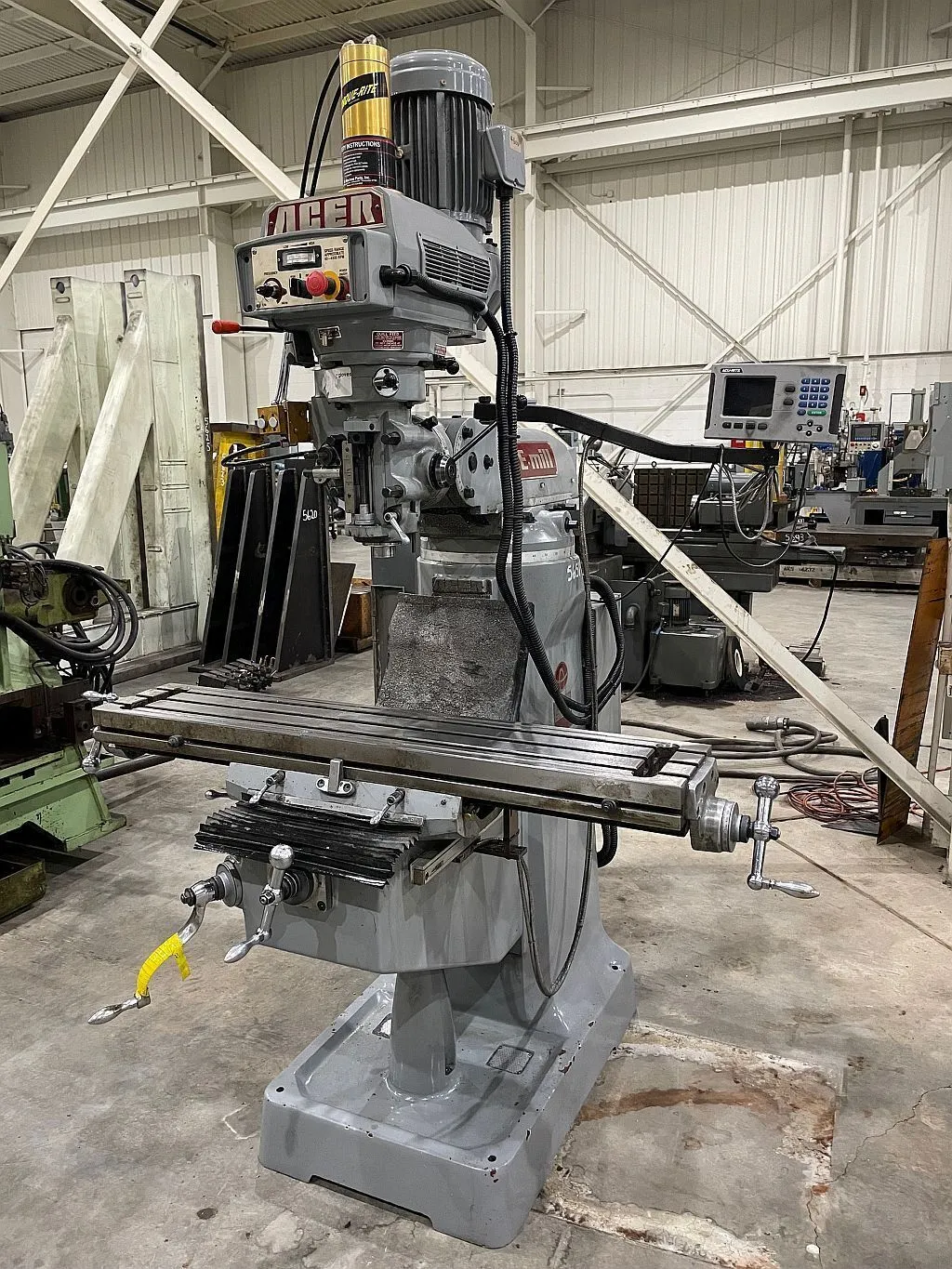

Explore precision with the used 2012 ACER E-mill Vertical Milling Machine. Features a 9"x49" table, 3 HP motor, and up to 4500 RPM. Enhanced with Acu-Rite DRO, power drawbar, and R-8 collets. Ideal for your advanced milling needs.
| Table-W | 9" | 228.6 mm |
| Table-L | 49" | 1,244.6 mm |
| Travel-Long | 34" | 863.6 mm |
| Travel-Cross | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 45 RPM | 45 RPM |
| Taper | R8 | R8 |
| Weight | 2400 lbs. | 2400 lbs. |
MODEL: 3VSII
SERIAL NUMBER: 1112020056
NEW: 2012
Specifications:
Table Size: 9" x 49"
Longitudinal Travel: 34"
Cross Travel: 12"
Vertical Travel Of Knee: 16"
Spindle Speeds, Infinitely Variable: 60 - 4500 RPM
Spindle: R-8
Collet Capacity: 3/4"
Quill Travel: 5"
Spindle Power Feeds: (3) .0015", .003", .006"
Approximate Weight: 2400 Lbs.
EQUIPPED WITH:
• 2 Axis Acu-Rite DRO
• Power Draw Bar
• 3 HP Spindle Motor
• One Shot Lubrication
• Assorted R-8 Collets
