Mazatrol M32 CNC
| size | 88" x 39" | 88" x 39" |
| X Travel | 78" | 1,981.2 mm |
| Y Travel | 45" | 1,143 mm |
| Z Travel | 20" | 508 mm |
| Table-W | 39.37" | 1,000 mm |
| Table-L | 88.18" | 2,239.8 mm |

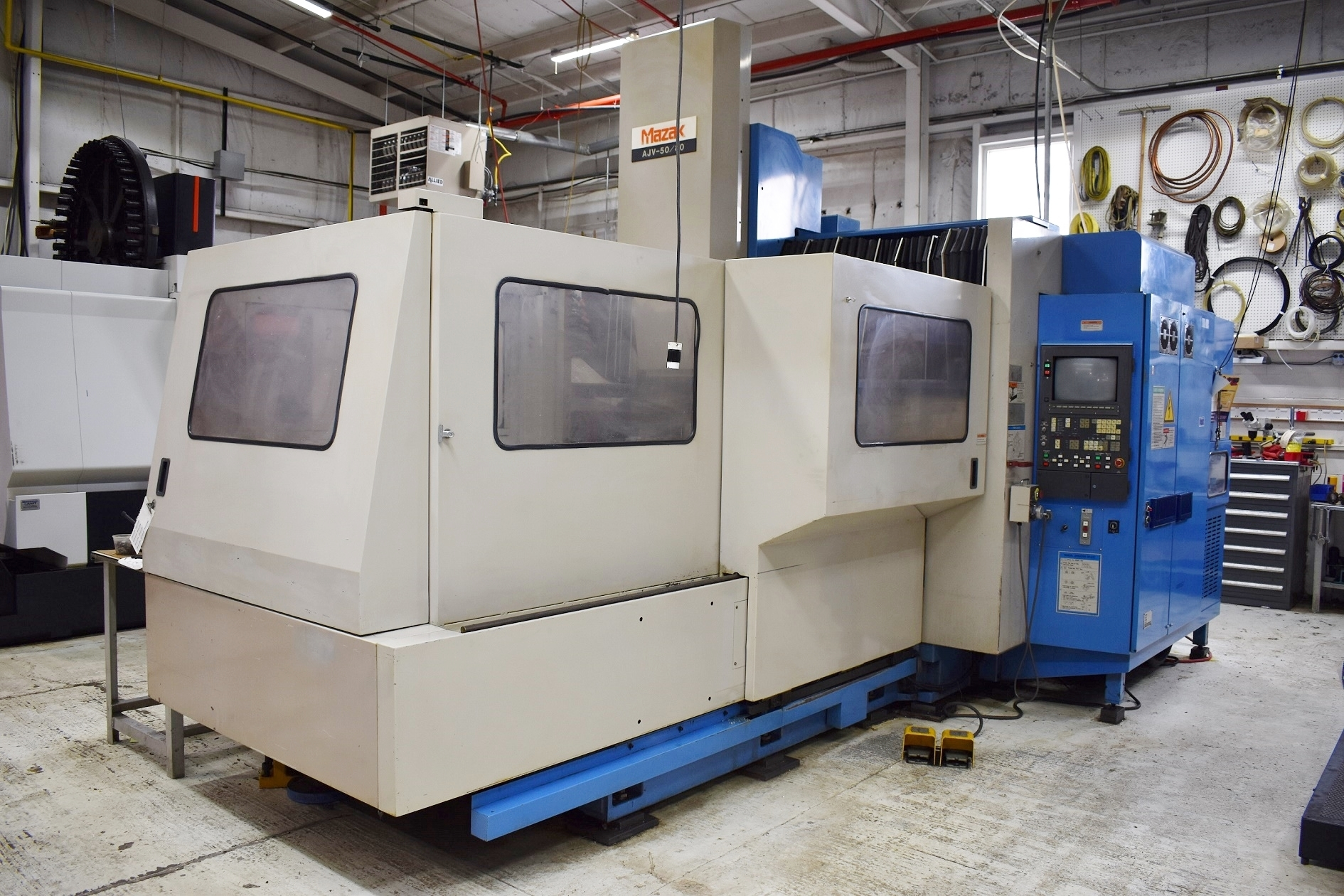

Mazak Model AJV 50/80 3 Axis Bridge Type Precision Machining Center
Mazatrol M32 CNC, 30 ATC
Pallet Size: 39.37" x 88.18"
Number of Pallets: 2
X-Axis Travel: 78.74"
Y-Axis Travel: 45.28"
Z-Axis Travel: 20.11"
Distance Between Columns: 49 "
Table Top to Spindle Nose: 17"-37"
Spindle Speed: 3150 RPM (Max.)
Spindle Horsepower: 35 AC
Rapid Travel Rates: X & Y - 945 IPM; Z - 708 IPM
Cutting Feed Rates: .04 - 196.8 IPM
Table Load Capacity: 8800 LBS
Tool Positions: (30) ATC
Maximum Tool Length: 16.8 "
Spindle Taper: CAT #50
Equipped With
Mazatrol M32 CNC Control
30 Position ATC
Coolant thru and chip conveyor
