USED 2014 DMG MORI Ultrasonic 65FD
Overview
Description

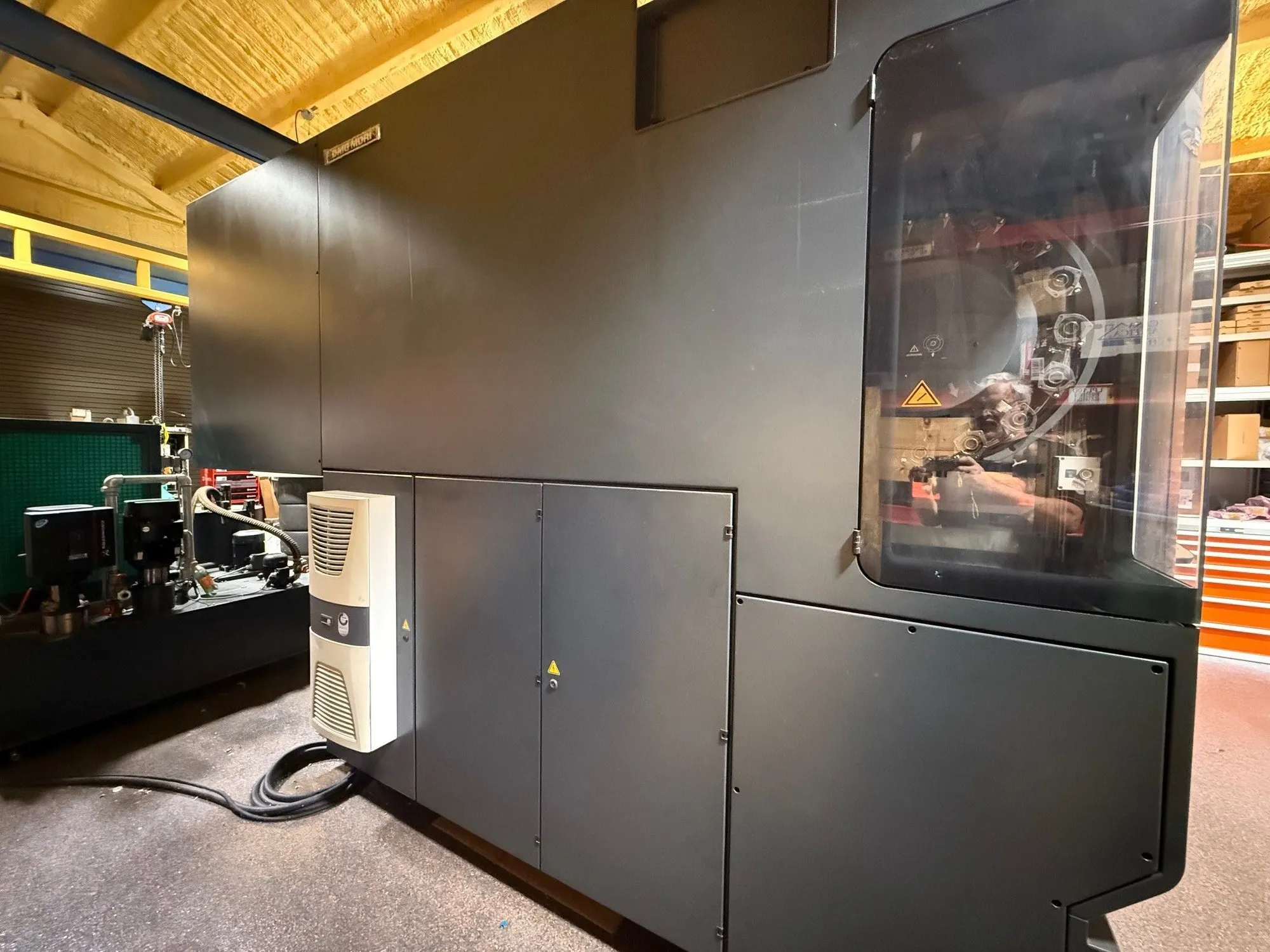

DMG Mori Ultrasonic 65FD CNC 5-Axis Vertical Machining Center
New: 2014
24.8" x 25.6" x 21.2", 90 ATC, 18K RPM, Siemens Control
Specifications
DMG Mori Ultrasonic 65FD CNC 5-Axis Vertical Machining Center
New: 2014
Specifications:
Number of Pallets: 1
Table Size: 31.5" x 25.6"
Travels:
X-Axis: 24.8"
Y-Axis: 25.6"
Z-Axis: 21.2"
NC Swivel Rotary:
A-Axis: ±120°
C-Axis: 360°
Spindle Speed: 18,000 RPM
Spindle Motor: 17.4 HP
Spindle Taper: HSK63
Tool Capacity: 90 ATC
Max Tool Diameter: 12.5"
Max Table Load: 1,323 Lbs
Equipped With:
Siemens 840D SolutionLine FD CNC Control
Adaptive Control
Glass Machining Package
easySONIC Control
3D Control
Tool Clamping
Vertical Headstock
Chip Trough
Coolant Ring Nozzle
5200 cut hours
Replacement cost $1.2M
