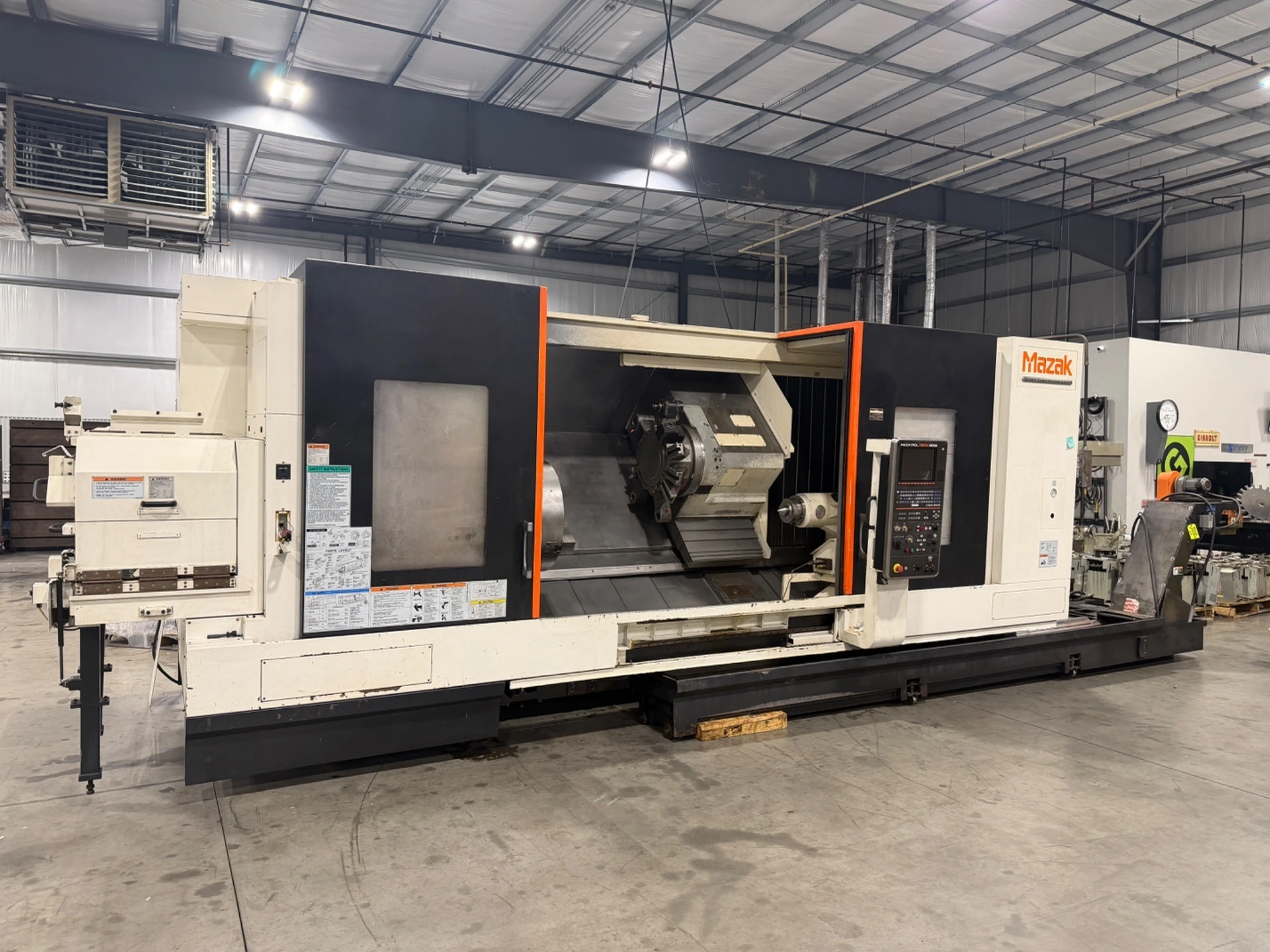

USED 2011 MAZAK Quick Turn Nexus 550m

Good running machine, can be inspected under power. STEADY REST NOT INCLUDED

Swing 40.9"
Machining Length 80"
# Axis 3
Chuck Size 24"
Bar Capacity 12.5"
Power 60 hp
Max RPM 750 RPM
Turning Dia 29"
Tailstock Yes
Live Tooling Yes
Sub Spindle No
Control CNC (MATRIX NEXUS)
SPINDLE BORE: 12.5
12 POSITION DRUM TURRET
ROTARY-TOOL SPINDLE SPEED: 4000 RPM

2011 MAZAK SLANT TURN NEXUS 550M CNC lathe features a 12.5" spindle bore, 80" machining length, 24" chuck, 3-axis control, and 60 hp power. Includes chip conveyor, 24" air chuck, and multitap transformer. Available mid-January 2026 approx.
