X2nd Chuck Description: Collet
X2nd Turret Live Tooling: true
X2nd Turret Max Rpm: 4000
X2nd Turret Positions: 12
X4th Axis: false
X5th Axis: true
Additional Machine Specs: Travels:
- Y-Axis: 3.14" (+/-1.57")
- X2 Axis: 18.5"
- Y2 Axis: 14.76"
- Z2 Axis: 13.19"
Coolant System
BMT-55 Power Turret

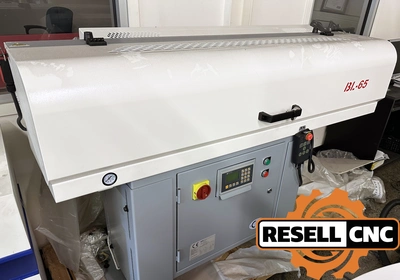

2018 Quicktech Model BL-65 1.2 Meter Bar Loader (Never Used)
Bar Capacity: 2.56
Barfeeder Make Model: 2018 Quicktech Model BL-65 1.2 Meter
B Axis: true
C Axis: true
Chip Removal: Chip Conveyor
Chuck Type: Collet

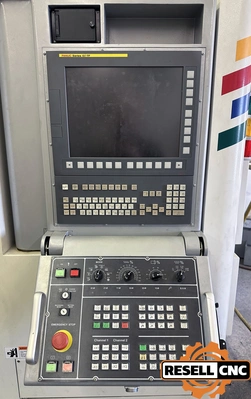

Control Make Model: Fanuc 0i-TF CNC Control
Coolant Psi: 400.0
Coolant Type S: High Pressure Coolant
Distance Between Centers: 20.0
Live Milling Hp: 5
Live Milling Max Rpm: 4,000
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Max Cutting Turning Diameter: 11.81
Max Swing Over Bed: 19.69
Max Swing Over Cross Slide: 11.81
Max Turning Cutting Length: 13.77
Programmable Tailstock: false
Second Bar Capacity: 1.85
Second Spindle Bore: 1.26
Second Spindle Motor: 7.5
Second Spindle Nose: A2-5
Second Spindle Speed: 4,000
Single Turret: false
Single Turret Live Tooling: false
Spindle Bore: 2.59
Spindle Motor: 15
Spindle Nose: A2-6
Spindle Speed: 4000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 12.0
Total Spindles: 2
Twin Turret: false
X Travel: 5.9
Y Axis: true
Z Travel: 14.96
