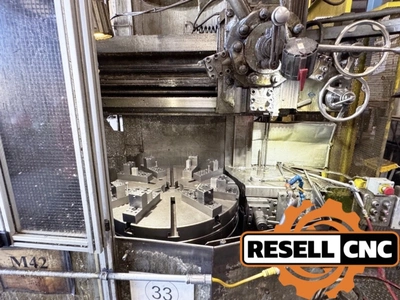

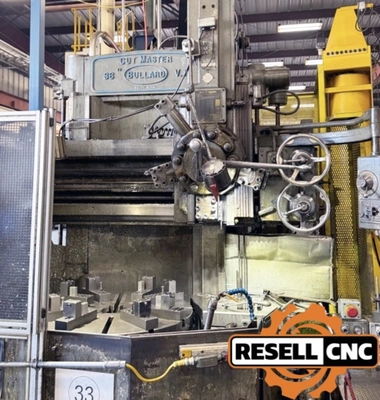

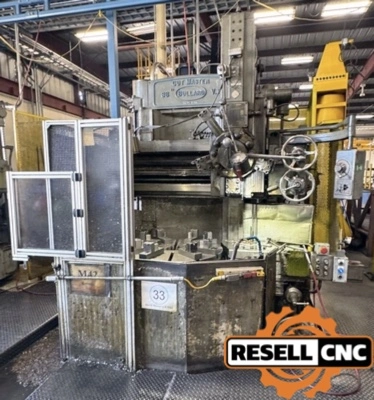

USED Bullard Cutmaster 36 VTL

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Specs:

Swing w/ Side Head Working: 39 inch

Height Under Rail: 30 inch

Table Speeds: 3.3 – 240 RPM

Table Motor: 30 HP

Feeds: 0.0026 – 0.500 IPR

Turret Head Swivel: ± 30 DEG. L-R

Turret Head Vertical Travel: 26 inch

Side Head Horizontal Travel: 18 inch

Side Head Vertical Travel: 30.25 inch



Equipped With:

Manual and Power Feeds

Interlocking Doors

Side Head

Axis Diameter: 36.0
B Axis: false
C Axis: false
Coolant Type S: No Coolant
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Swing Over Bed: 45.0
Programmable Tailstock: false
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
