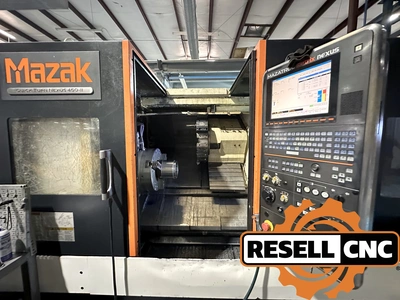

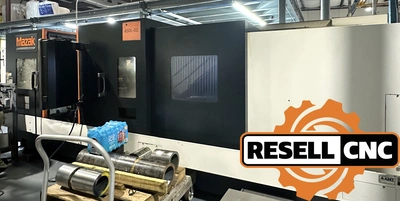

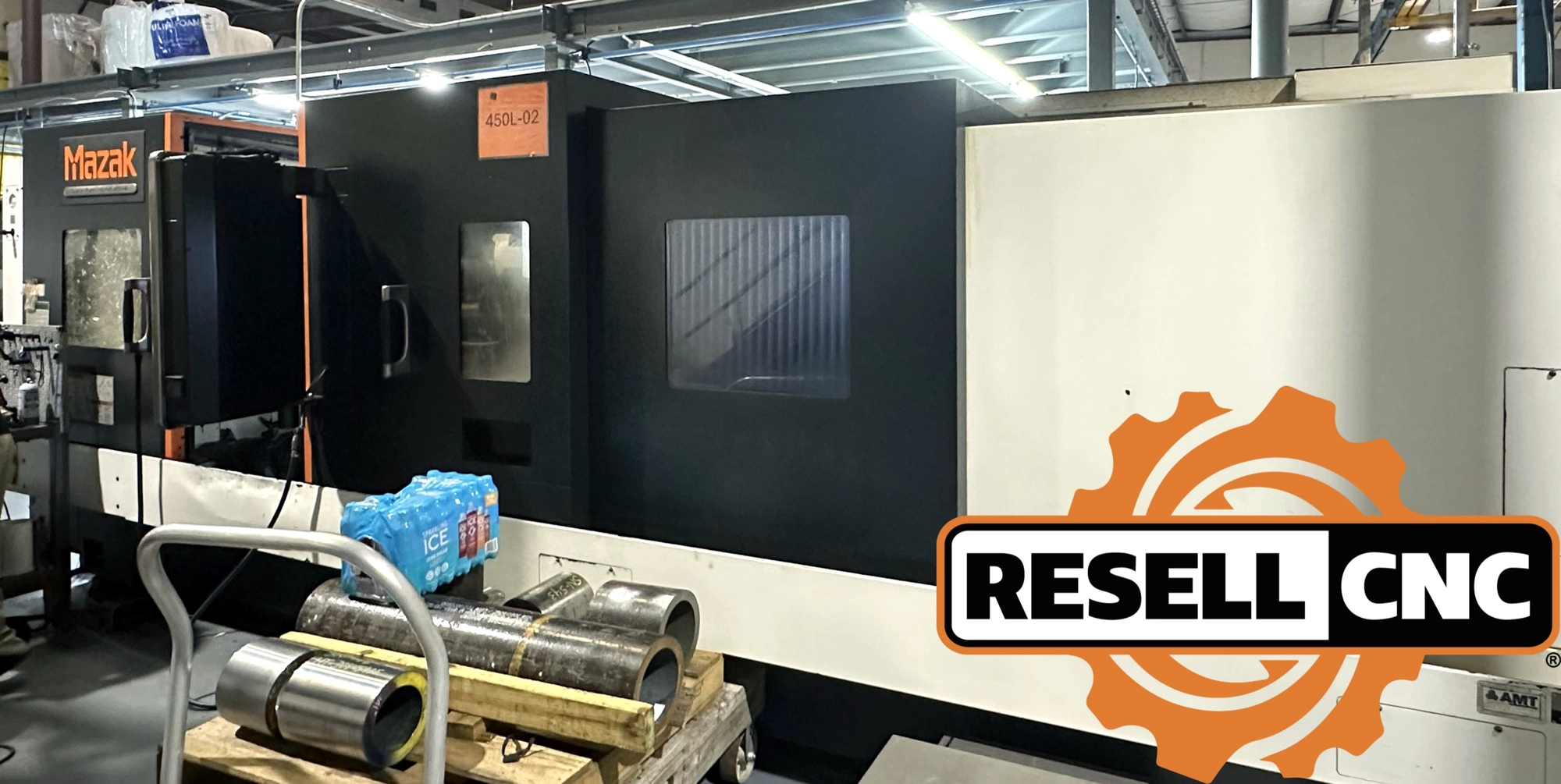

USED 2013 Mazak QTN-450II

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: 12.1 Color LCD

Spiral Interpolation

Geometric Command

Thread Cutting

Inverse Time Feed

Auto Tool Life Management

Polar Coordinates Input

Comparison Stop

G54.1

Variable 600 Sets

Helical Tap Cycle

Pattern Cycle

Tilted Working Plane

Thread Start Point Compensation

Pitch Error Compensation

Thread Cut-Speed Override

Additional Machine Specs: Programmable Steadyrest

Automatic Tool Eye

Prepped for Rear Chuck

Mutli Tap Transformer

Bar Capacity: 7.28
B Axis: false
C Axis: false
Chip Removal: Chip Conveyor
Chuck Description: 3-Jaw
Chuck Size: 18.0
Chuck Type: Air
Control Make Model: Mazatrol Matrix Nexus CNC Control
Control Options: Color Monitor, Ethernet / LAN, Rotation and Scaling, EIA/ISO Code Input Function
Coolant Type S: High Pressure Coolant
Distance Between Centers: 120.0
High Pressure Coolant Psi: 213.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Machine Options: Big Bore, Transformer, Worklight, Tool Eye
Max Cutting Turning Diameter: 22.83
Max Swing Over Bed: 33.26
Max Turning Cutting Length: 120.0
Programmable Tailstock: true
Rapid Traverse: 1181
Single Turret: true
Single Turret Live Tooling: false
Spindle Bore: 7.28
Spindle Motor: 50
Spindle Nose: A2-15
Spindle Speed: 2000.0
Steadyrest Type: Hydraulic
Sub Spindle: false
Tailstock: true
Tool Positions: 24.0
Total Spindles: 1
Turret Options: 12 Sided

Twin Turret: false
X Travel: 13.38
Y Axis: false
Z Travel: 122.0
