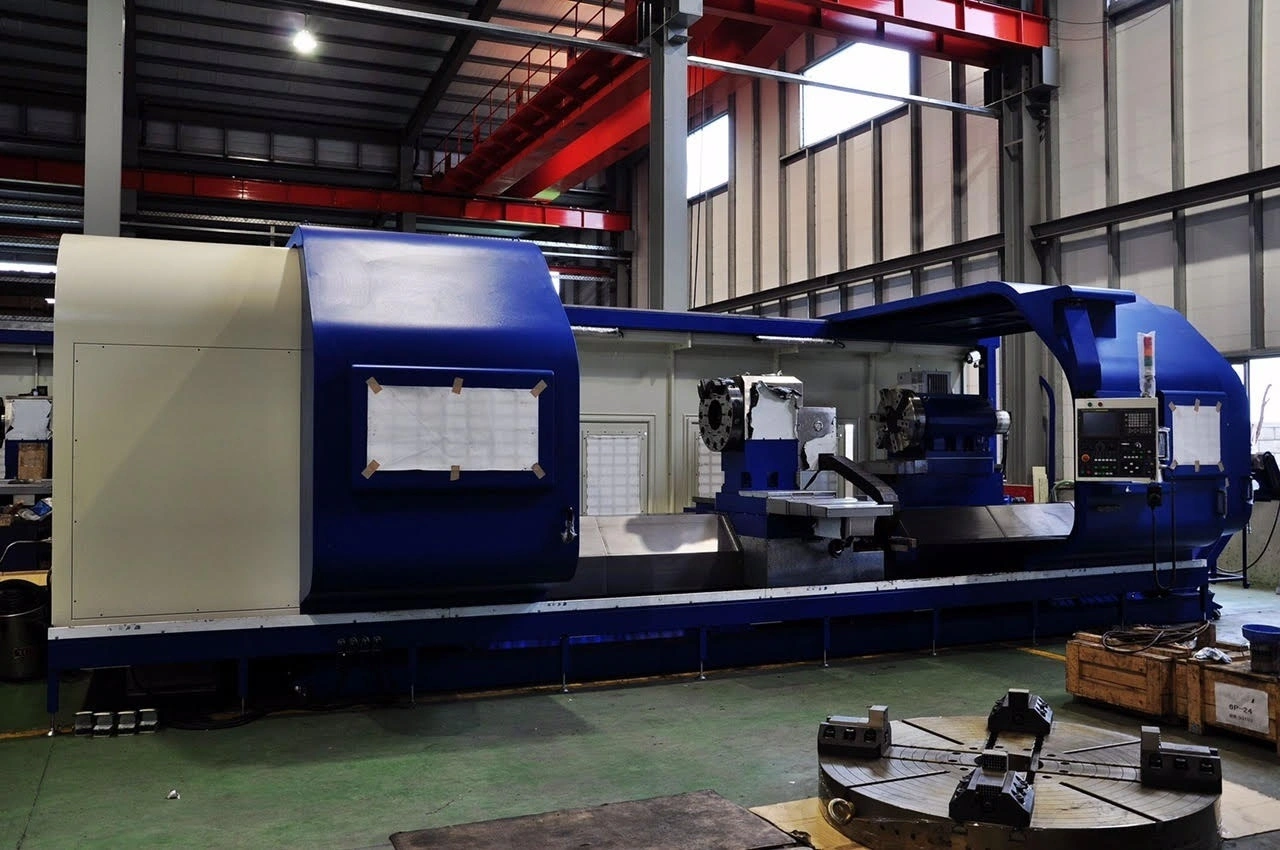

USED POREBA KBL 200/8M

70" Chuck, 86" Swing, 314" Centers, Fanuc 0iTD CNC Control

Poreba Model KBL 200/8M 86" X 314" Heavy Duty CNC Lathe ( NEW )

Swing over Bed: 86.6"
Swing over Cross Slide: 62.9"
Distance between Centers: 314"
Spindle Bore Diameter: 9"
Spindle Nose: A2-20
Spindle Speeds: 2- 200 RPM (Infinitely Variable)
Speed Ranges: 4 (Automatic Shifting)
Main Motor: 100/120 HP
Tailstock Quill Diameter: 16.9"
Equipped with:
Fanuc Oi-TD CNC Control
Full Key Operator Panel
Manual Guide with Thread Repair Function
Duplix MPG Panel
Minimum Program Command 0.001 mm (.0000393)
Three Shear Bed
Programmable Tailstock
Built in Live Quill with No. 7 Morse Taper
70" Diameter 4 Jaw Chuck
2) Roller Steady Rests (Turn Thru)
1) Roller Work Cradle
2) Chip Conveyors (Front & Rear)
Thermally Controlled Headstock Lubrication (18,000 BTU)
Tailstock Thermally Lubricated (3000 BTU)
Air Conditioned Electric Panel
Flush Coolant
Auto Lubrication
Price Includes Installation
