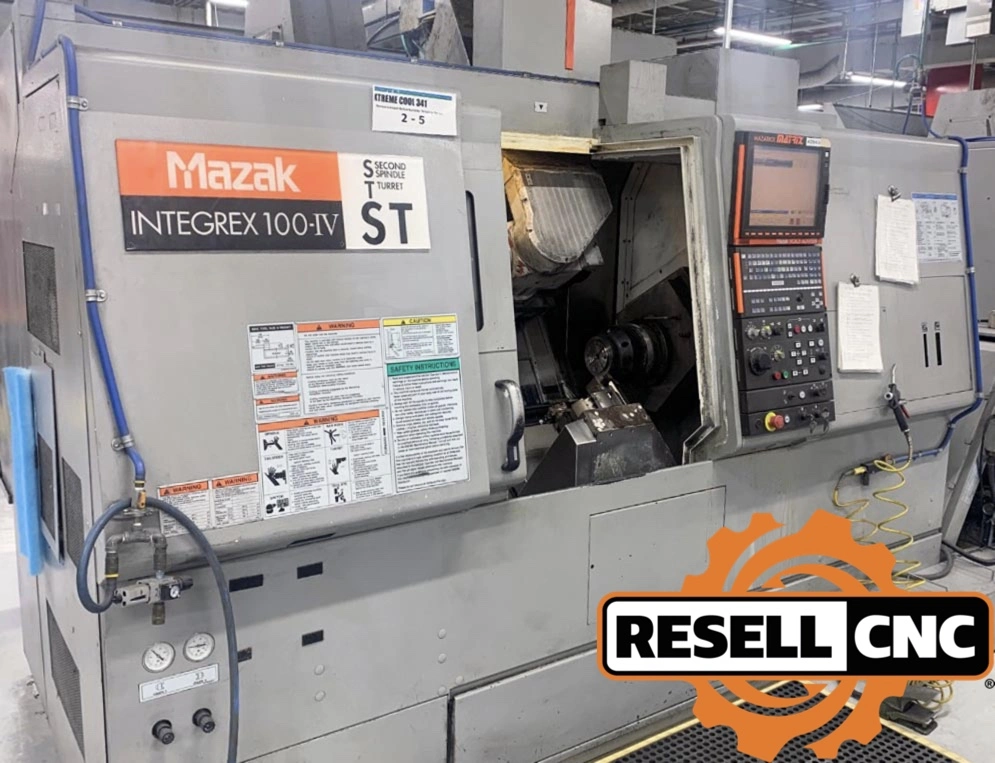

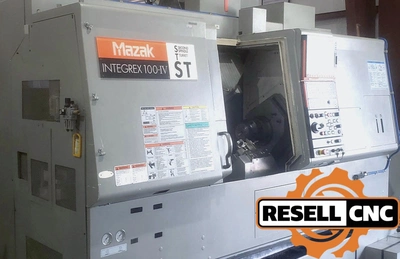

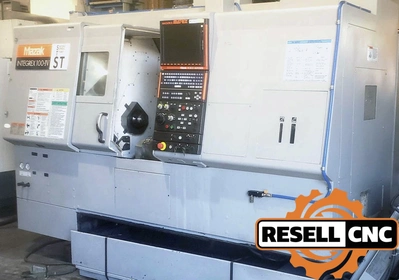

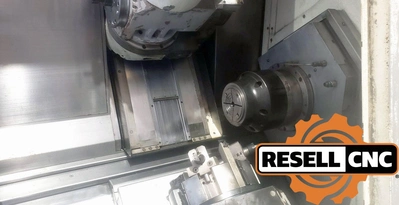

USED 2013 Mazak Integrex 100-IV ST

X2nd Chuck Description: Collet

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: true
Additional Control Options: 3D Coordinate Conversion

Absolute Positioning System

XYZ Pitch Error Compensation Input

EIA Dynamic Compensation

Mazacc-3D High Speed Software Pkg.

Tool Tip Point Control & Tool Radius Comp.

Additional Machine Specs: C-Axis .0001 Degree Incr.

Capto C6 ATC Magazine

Auto Chuck Open & Close Spindle 1 & 2

C1+C2 Synchronous Function

Lower turret & subspindle

Bar Capacity: 2.0
B Axis: true
B Axis Travel: B-Axis .0001 Degree

B-Axis Index 5 Degree (Coupling Clamp)

C Axis: true
Chip Removal: Chip Conveyor
Chuck Type: Collet

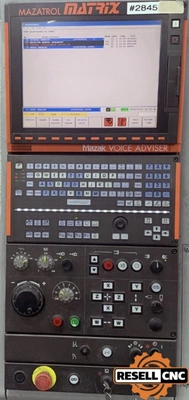

Control Make Model: Mazatrol Matrix CNC Control
Control Options: Synchronized Tapping, Inch/Metric Conversion, EIA/ISO Code Input Function
Coolant Psi: 213.0
Coolant Type S: Thru-Spindle Coolant
Distance Between Centers: 29.65
Live Milling Hp: 7.5

Live Milling Max Rpm: 12000

Live Milling Thru Spindle Coolant: false
Live Tooling Milling: true
Max Cutting Turning Diameter: 21.46
Max Swing Over Bed: 21.46
Max Swing Over Cross Slide: 13.86
Max Turning Cutting Length: 29.65
Programmable Tailstock: false
Second Bar Capacity: 2.0
Second Spindle Motor: 15
Second Spindle Nose: A2-5
Second Spindle Speed: 6000
Single Turret: true
Single Turret Live Tooling: true
Spindle Bore: 2.4
Spindle Motor: 15
Spindle Nose: A2-5
Spindle Speed: 6000.0
Sub Spindle: true
Tailstock: false
Tool Positions: 40.0
Total Spindles: 3
Twin Turret: true
X Travel: 16.14
Y Axis: true
Z Travel: 31.69
